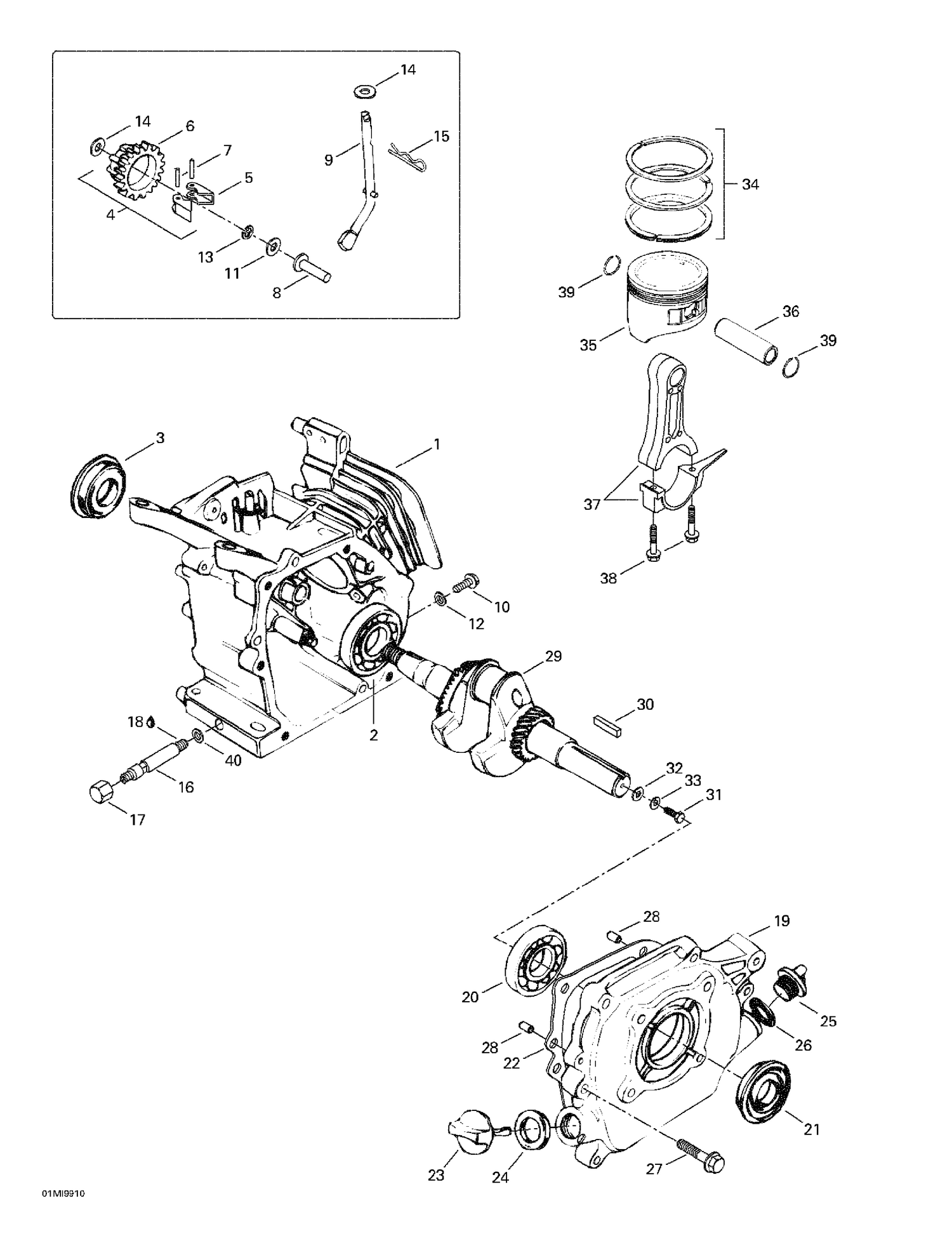

01- Crankcase, Barrel, Crankshaft, Piston
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| H13011ZE6013 | Ens. | De segment (0.25) H13011ZE6013 |
| H13011ZE6013 | Ring | Set (0.25) H13011ZE6013 |
| H13012ZE6013 | Ens. | De segment (0.50) H13012ZE6013 |
| H13012ZE6013 | Ring | Set (0.50) H13012ZE6013 |
| H13013ZE6013 | Ens. | De segment (0.75) H13013ZE6013 |
| H13013ZE6013 | Ring | Set (0.75) H13013ZE6013 |
| H132A0ZE0000 | Rod | Repair Kit (Under Size) H132A0ZE0000 |
| 2 | H91001878003 | Ball Bearing |
| 3 | H91202ZE6003 | Oil Seal |
| 5 | H16511ZE1000 | Weight |
| 6 | H16512ZE1000 | Holder |
| 7 | H16513ZE1000 | Pin |
| 8 | H16531ZE1000 | Slider |
| 9 | H16541ZE1000 | Shaft |
| 10 | H90131ZE1000 | PLUG-DRAIN BOLT - Call your local BRP dealership |
| 11 | H90451ZE1000 | Thrust Washer 6 mm |
| 12 | H90601ZE1000 | Washer |
| 13 | H90602ZE1000 | Clip |
| 14 | H9410106800 | Washer 6 mm |
| 15 | H9425108000 | Hair Pin |
| 16 | 512059045 | Bushing |
| 17 | 415104900 | Drain Plug |
| 18 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 20 | H91001878003 | Ball Bearing |
| 21 | H91203ZE0003 | Oil Seal |
| 22 | H11381ZH7800 | Packing |
| 24 | H15625ZE1003 | Packing |
| 26 | H15625ZE1003 | Packing |
| 27 | H90015883000 | Screw 6 x 28 |
| 28 | H9430108140 | Dowel Pin 8 x 14 |
| 29 | H13310ZE0601 | Crankshaft |
| 30 | H90745ZE1600 | Key |
| 31 | 309808900 | Hex. Screw 5/16-24 |
| 32 | 234082410 | Flat Washer 8 mm This part replaces 224080251. |
| 33 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 34 | H13010ZE6013 | Ring Set (Standard) |
| 35 | H13101ZH7000 | Piston (Standard) |
| 36 | H13111ZE0000 | Piston Pin |
| 38 | H90001ZE1000 | Connecting Rod Bolt |
| 39 | H90551ZE0000 | Circlip |
