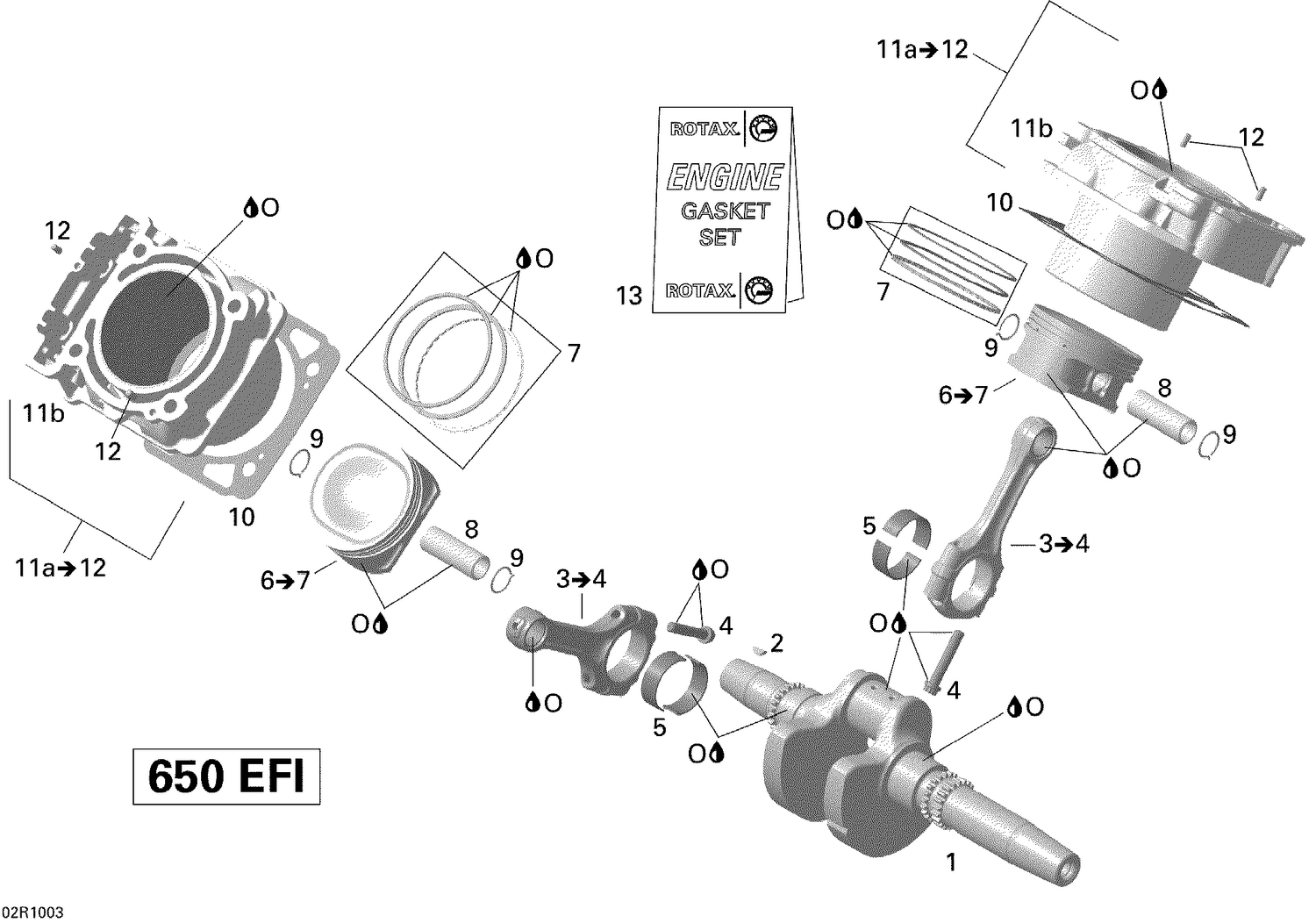

01- Crankshaft, Piston And Cylinder
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641645 | Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 | 420233980 | Plain Bearing 40 X 43 X 15 |
| 7 | 420684384 | Piston Ring Set |
| 7 | Not | Available As Spare Part - Piston Ring Set, Oversize |
| 8 | 420216270 | Piston Pin |
| 9 | 420845106 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 11b | Not | Available As Spare Part - Cylinder With Sleeve |
| 12 | 420929650 | Drive Pin 5 X 10 |
| 13 | 420684154 | Gasket Set This part replaces 420684143. |
