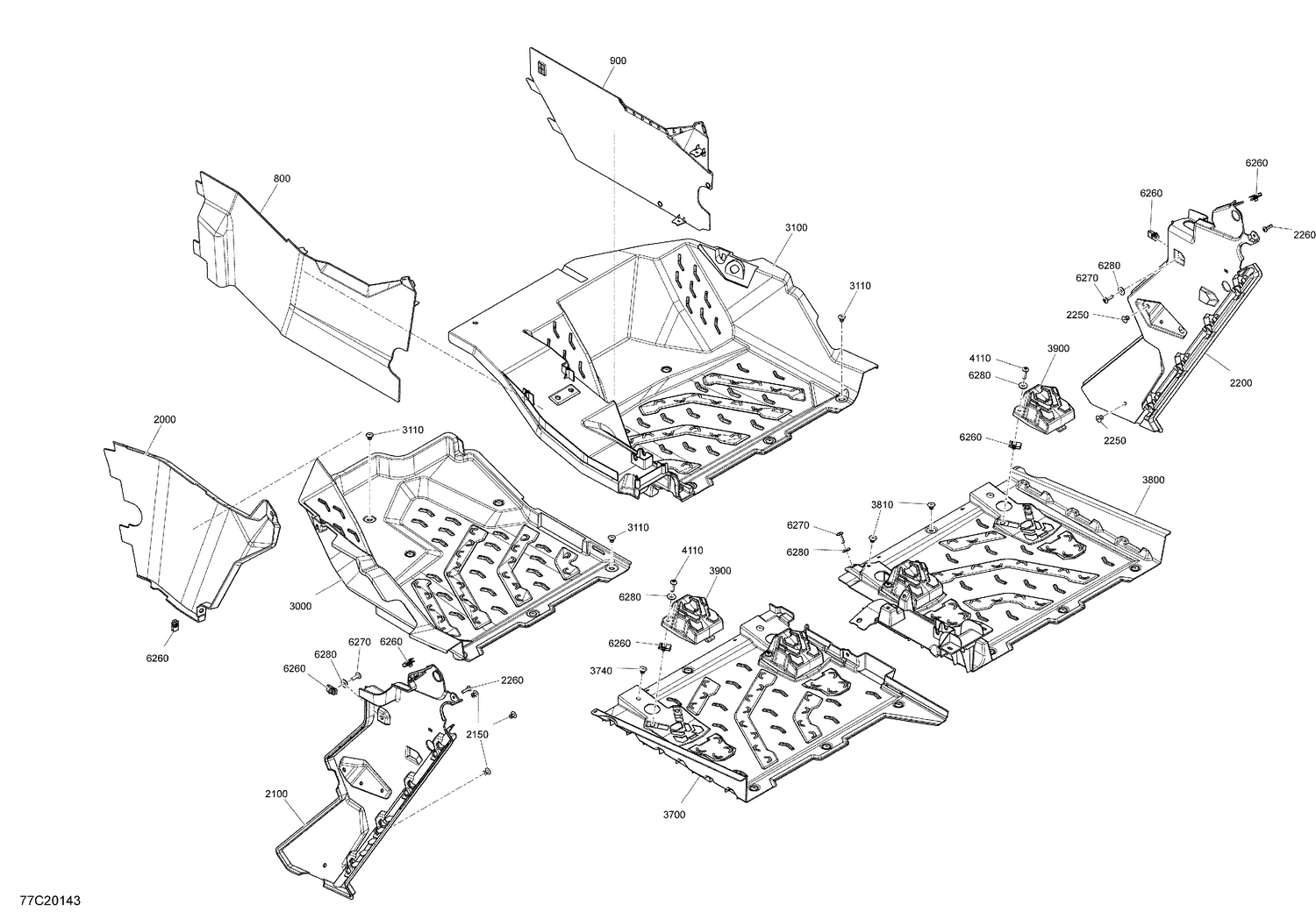

09- Cab Interior - Floor Section
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 707901087 | LH Console Panel This part replaces 707900398. |
| 900 | 707901088 | RH Console Panel This part replaces 707900399. |
| 2000 | 707900477 | Side Panel Cover |
| 2100 | 707900804 | LH Central Cab Panel |
| 2150 | 293150103 | Pop Rivet 3/16" |
| 2200 | 707900805 | RH Central Cab Panel |
| 2250 | 293150103 | Pop Rivet 3/16" |
| 2260 | 250000724 | Torx Screw M5 X 20 |
| 3000 | 707900339 | LH Front Floor |
| 3100 | 707900340 | RH Front Floor |
| 3110 | 293150104 | Pop Rivet 3/16" |
| 3700 | 707900495 | LH Floor |
| 3740 | 293150104 | Pop Rivet 3/16" |
| 3800 | 707900496 | Rear Right Floor |
| 3810 | 293150104 | Pop Rivet 3/16" |
| 3900 | 707900595 | Footrest Support |
| 4110 | 250000807 | Torx Truss Screw M6 X 25 |
| 6260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 6270 | 250000722 | Torx Screw M6 X 20 |
