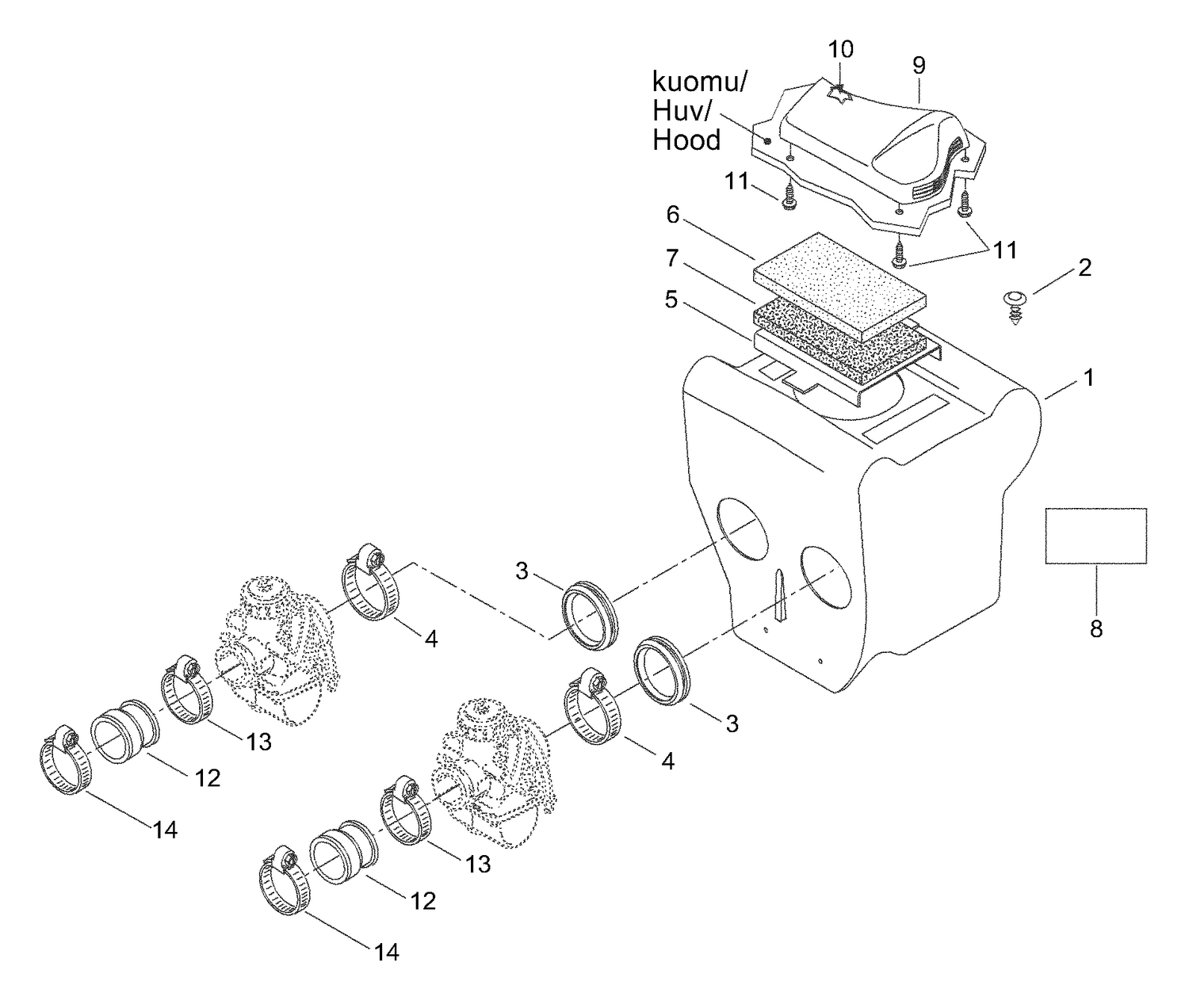

01- Air Silencer
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 414644300 | Black, Dart |
| 3 | 570043600 | Adaptor |
| 4 | 408801600 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 5 | 517285900 | Intake grill |
| 6 | 415106000 | Lower foam |
| 7 | 415037600 | Air filter |
| 8 | 516001191 | Caution Label, Air Intake This part replaces 516000130. |
| 9 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 10 | 414972600 | Air filter |
| 11 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 12 | 570066800 | CARBURATOR ADAPTOR - Call your local BRP dealership |
| 13 | 408803800 | Gear clamp tridon |
