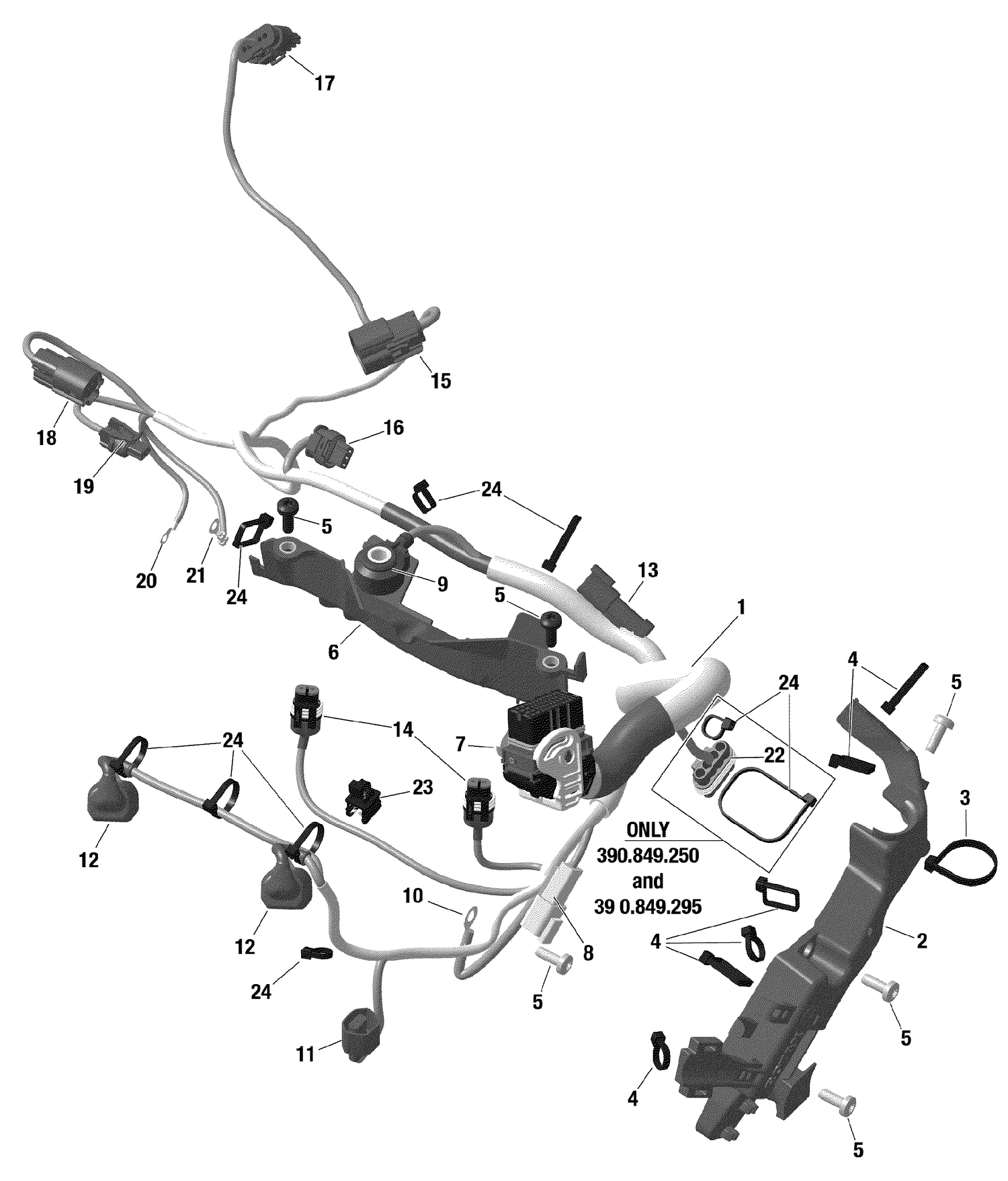

| Ref | Part Number | Description |
|---|
| 2 |
420260155 |
Harness Support |
| 3 |
420651397 |
Tie Rap |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
420640324 |
Torx Screw M6 X 16 |
| 6 |
420260159 |
Harness Support |
| 7 |
Not |
Available As Spare Part - Connector Housing ECU |
| 8 |
409206900 |
Male Housing, 2 Circuits |
| 9 |
Not |
Available As Spare Part - Knock Sensor |
| 10 |
Not |
Available As Spare Part - Connector CGND |
| 11 |
415130195 |
Connector |
| 13 |
409206900 |
Male Housing, 2 Circuits |
| 14 |
409209500 |
Female Housing, 2 Circuits |
| 15 |
515178202 |
Coil Connector |
| 16 |
Not |
Available As Spare Part - Connector RPS |
| 17 |
Not |
Available As Spare Part - Connector E Rave |
| 18 |
710005827 |
Connector 2 Pins with CPA |
| 19 |
515177192 |
Female Housing, 2 Circuits |
| 20 |
Not |
Available As Spare Part - Connector OPP SW |
| 21 |
515175504 |
Ring Terminal |
| 23 |
420951785 |
Tie Rap |
| 24 |
293750002 |
Tie Wrap 142 mm |
