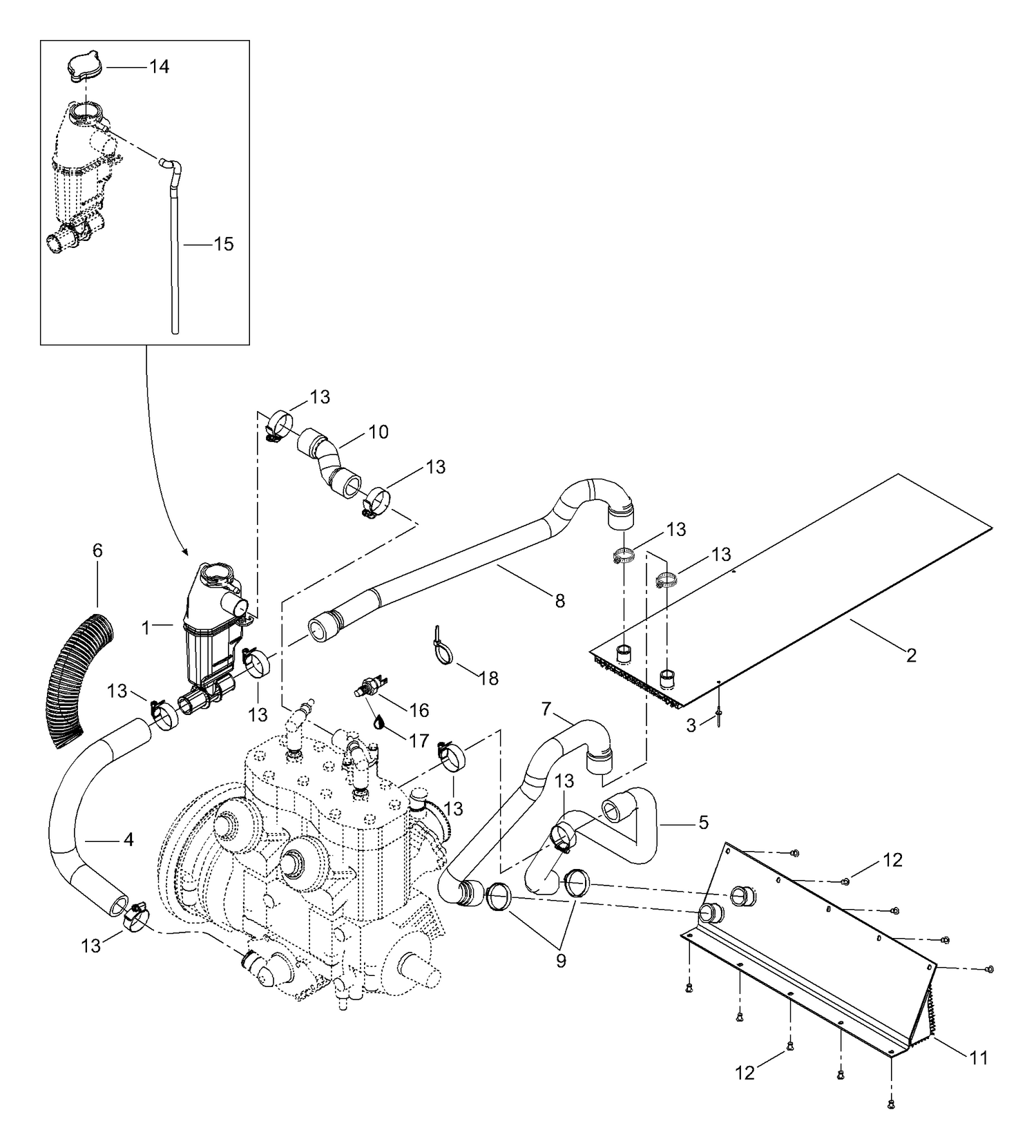

| Ref | Part Number | Description |
|---|
| 1 |
509000134 |
Coolant-tank |
| 2 |
5246130 |
Radiator |
| 3 |
36083 |
Rivet |
| 4 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 5 |
509000002 |
Hose, Engine->front rad. |
| 6 |
390003 |
Protective shield |
| 7 |
5346349 |
Hose, front rad.->rear ra |
| 8 |
5346350 |
Hose, rear rad.->tank |
| 9 |
509000045 |
Hose clamp |
| 10 |
509000112 |
Hose, sender->tank |
| 11 |
517297100 |
Front radiator |
| 12 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
509000187 |
Pressure Cap |
| 15 |
39038 |
Overflow hose 9.5/6.5 |
| 16 |
512047000 |
Sender temperature |
| 17 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
