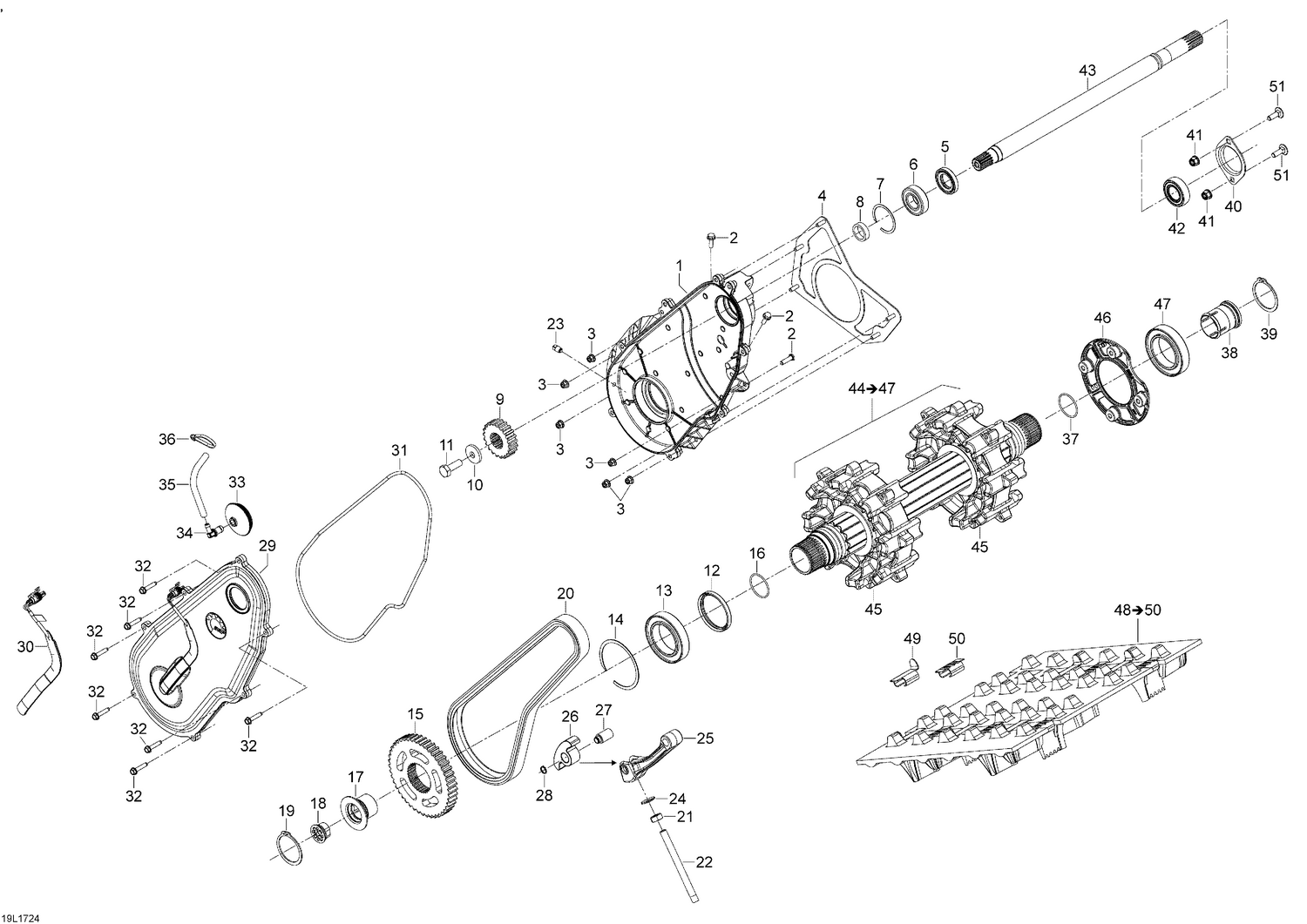

05- Drive System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153405 | Chaincase |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 518325816 | Plate Ass'y |
| 5 | 293200168 | Oil Seal This part replaces 293250175. |
| 6 | 293350115 | Ball Bearing This part replaces 293350055. |
| 7 | 504152576 | Circlip |
| 8 | 504152628 | Shim |
| 9 | 504139300 | Sprocket (21 T) |
| 10 | 504152784 | Spring Washer M10 |
| 11 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 12 | 293200159 | Oil Seal This part replaces 504152571. |
| 13 | 293350059 | Ball Bearing |
| 14 | 504152582 | Circlip |
| 15 | 504153598 | SPROCKET_49 TEETH ASSY - Call your local BRP dealership This part replaces 504153196. |
| 16 | 293300122 | O Ring |
| 17 | 504152802 | THREADED CAP - Call your local BRP dealership |
| 18 | 504152794 | Magnetic Adaptor |
| 19 | 293370052 | Circlip |
| 20 | 504152630 | Drive Chain (106 Links) |
| 21 | 232006414 | Hex. Nut M10 |
| 22 | 504152602 | Adjustment Screw |
| 23 | 504152854 | Magnetic Plug |
| 24 | 293200128 | Seal Ring |
| 25 | 504153429 | Chain Tensioner |
| 26 | 504152739 | Chain Slider |
| 27 | 504152841 | Tensioner Axle |
| 28 | 504152282 | Circlip |
| 29 | 504153410 | Chaincase Cover |
| 30 | 504152896 | Rotation Sensor |
| 31 | 293300130 | O Ring |
| 32 | 210263050 | Hex. Forming Screw M6 x 30 |
| 33 | 504152860 | Cap |
| 34 | 414580700 | Male Connector |
| 35 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 36 | 293750002 | Tie-Rap 142 mm |
| 37 | 293300122 | O-Ring |
| 38 | 504152619 | Cap |
| 39 | 504152572 | Circlip |
| 40 | 504153185 | Bearing Housing |
| 41 | 233281414 | Hex. Flange Elastic Nut M8 |
| 42 | 293350074 | Ball Bearing |
| 43 | 504153166 | COUNTERSHAFT - Call your local BRP dealership |
| 45 | Not | Available As Spare Part - LH Sprocket (8 T) |
| 46 | 504153886 | Retaining Ring This part replaces 504152949. |
| 47 | 293350059 | Ball Bearing |
| 49 | 415129528 | Track Guide |
| 50 | 504152651 | Cleat |
