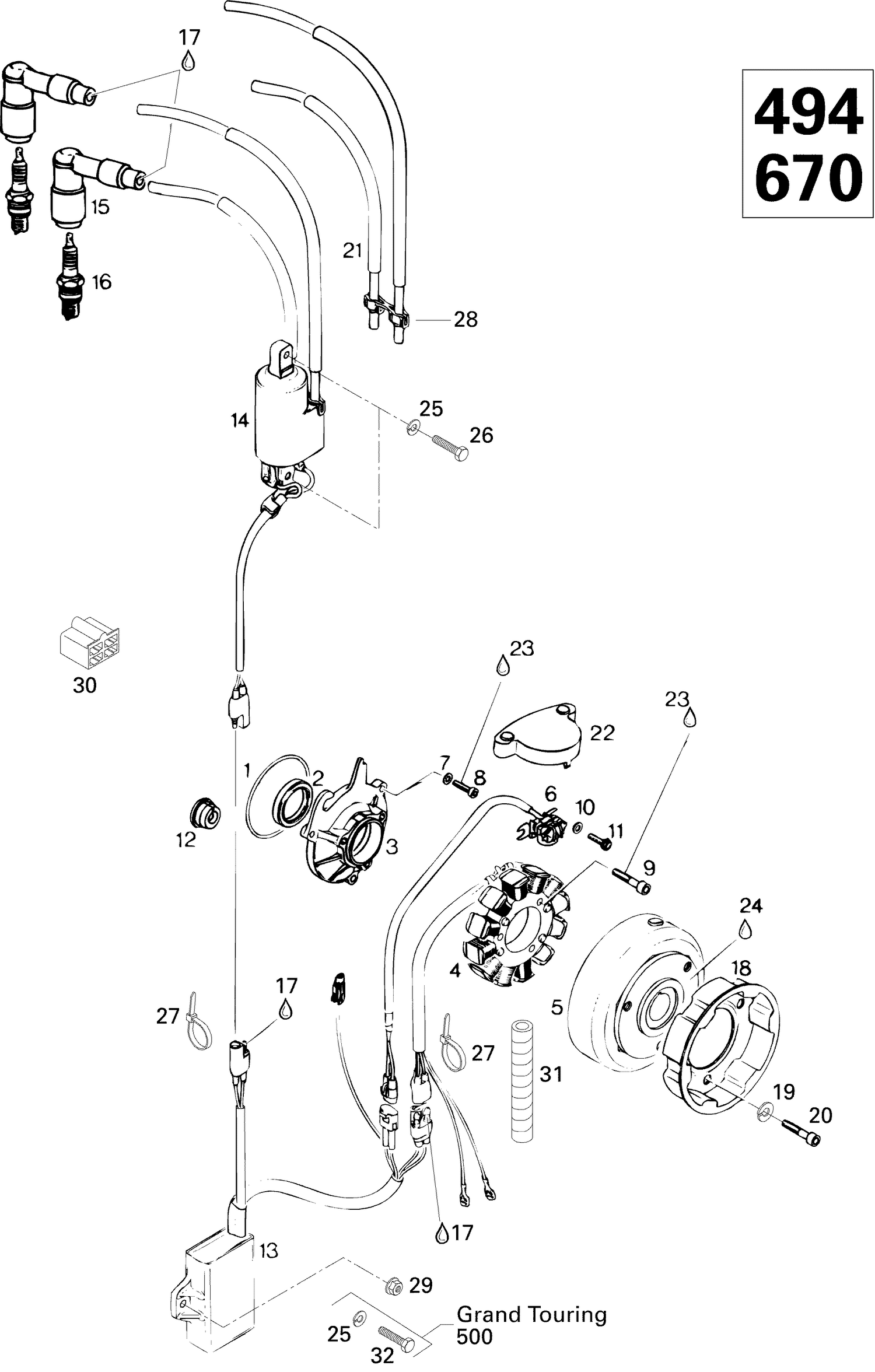

| Ref | Part Number | Description |
|---|
| 1 |
420850430 |
O-RING - Call your local BRP dealership |
| 2 |
420930695 |
SEAL-OIL - Call your local BRP dealership |
| 3 |
420810265 |
Armature Plate |
| 4 |
410919000 |
Stator Ass'y |
| 5 |
410920300 |
Magneto Flywheel |
| 6 |
410916700 |
Pick Up Ass'y |
| 7 |
420945750 |
Lock Washer |
| 8 |
420941540 |
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership |
| 9 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 10 |
420827800 |
WASHER - Call your local BRP dealership |
| 11 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 12 |
420960288 |
Cable Crommet |
| 13 |
410918900 |
Amplifier-Box |
| 14 |
410920500 |
Ignition Coil |
| 15 |
414569200 |
SPARK PLUG PROTECTOR - Call your local BRP dealership |
| 16 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 17 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 18 |
420852590 |
Starting Pulley This part replaces 420852416. |
| 19 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 20 |
420841520 |
Socket Head Screw M8 X 12 |
| 21 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 420965033. |
| 22 |
420810700 |
Pick-Up Cover |
| 23 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 24 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 25 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 26 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 31 |
410904000 |
Tubing Helical |
