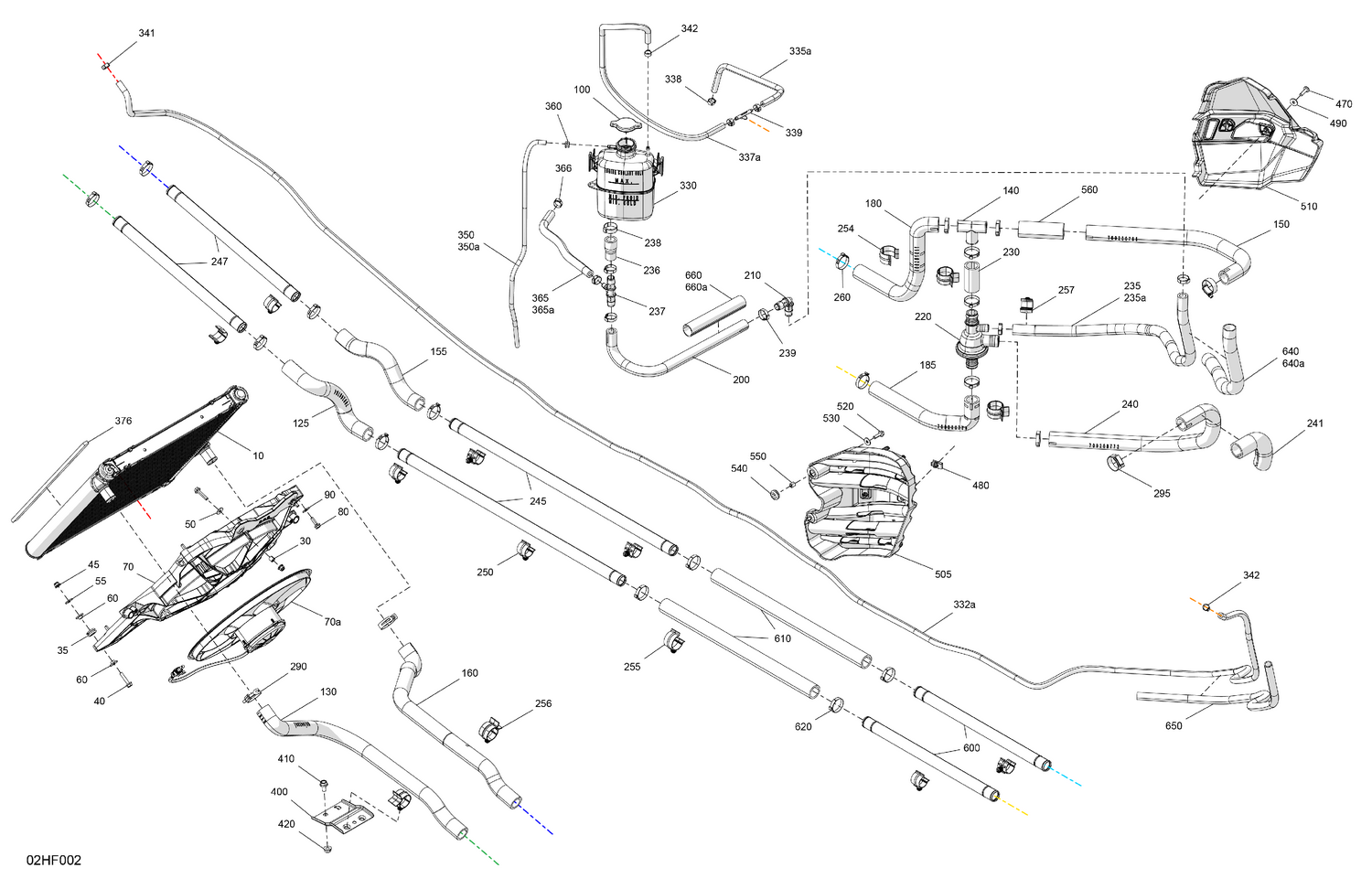

| Ref | Part Number | Description |
|---|
| 10 |
709200703 |
Radiator |
| 30 |
293900105 |
Bushing |
| 35 |
293720130 |
Overmolded Grommet |
| 40 |
207663054 |
Hex. Flange Screw M6 X 30 |
| 45 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 50 |
234062670 |
Stainless Steel Flat Washer |
| 55 |
234062670 |
Stainless Steel Flat Washer |
| 60 |
710004749 |
Shoulder Bushing |
| 70a |
709200589 |
Shroud |
| 80 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 90 |
234062410 |
Flat Washer 6 mm |
| 100 |
709200207 |
Radiator Pressure Cap |
| 125 |
709200764 |
Radiator Hose |
| 130 |
709200765 |
Radiator Hose |
| 140 |
509001313 |
T-Fitting |
| 150 |
709200766 |
Pump Hose |
| 155 |
709201012 |
Hose |
| 160 |
709201572 |
Radiator Hose |
| 180 |
709201011 |
Hose |
| 185 |
709200770 |
Hose |
| 200 |
709201055 |
Hose |
| 210 |
293710155 |
Elbow Fitting 90 |
| 220 |
709200967 |
Thermostat Housing |
| 230 |
709200299 |
Hose |
| 235 |
219704542 |
Hose 15,9 mm ID 3000mm Long |
| 235a |
XXX |
Not Available As Spare Parts |
| 236 |
709200771 |
Tank Hose |
| 237 |
509000996 |
T Fitting |
| 238 |
293650165 |
Oetiker Gear Clamp |
| 239 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 240 |
709200772 |
Thermostat Hose |
| 241 |
219704428 |
Tubing 35 MM 1000MM Long |
| 245 |
709200657 |
Heater Tubing |
| 247 |
709200664 |
Heater Tubing |
| 250 |
275500963 |
Retainer |
| 254 |
275500526 |
Retainer |
| 255 |
275500526 |
Retainer |
| 256 |
275500590 |
Retainer |
| 257 |
275500963 |
Retainer |
| 260 |
293650332 |
Crimp Clamp |
| 290 |
293650166 |
Norma Spring Clamp |
| 295 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 330 |
709201323 |
Coolant Tank |
| 332a |
219704547 |
Hose 6,35 Mm Id 4000Mm Long |
| 335a |
219704547 |
Hose 6,35 Mm Id 4000Mm Long |
| 337a |
219704547 |
Hose 6,35 Mm Id 4000Mm Long |
| 338 |
293650047 |
Crimp Clamp, 15.3-706R |
| 339 |
293710059 |
Y-Fitting This part replaces 293710222. |
| 341 |
293650042 |
Oetiker Clamp |
| 342 |
293650047 |
Crimp Clamp, 15.3-706R |
| 350a |
XXX |
Not Available As Spare Parts |
| 360 |
414554800 |
Spring Clamp |
| 365 |
219704543 |
Hose 9,5 Mm ID 3000mm Long |
| 365a |
XXX |
Not Available As Spare Parts |
| 366 |
293650030 |
Oetiker Clamp |
| 376 |
219704386 |
Seal 3000MM Long |
| 400 |
709200668 |
Hose Support |
| 410 |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 420 |
233081416 |
Hex. Flange Nut M8 |
| 470 |
250000807 |
Torx Truss Screw M6 X 25 |
| 480 |
250100198 |
Panel Nut M6 X 1.0 |
| 490 |
234062670 |
Stainless Steel Flat Washer |
| 505 |
705015779 |
Hose Holder |
| 510 |
705015780 |
Hose Holder Cover |
| 520 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 530 |
234062670 |
Stainless Steel Flat Washer |
| 540 |
293720130 |
Overmolded Grommet |
| 550 |
293900105 |
Bushing |
| 560 |
219704428 |
Tubing 35 MM 1000MM Long |
| 600 |
709200664 |
Heater Tubing |
| 610 |
709200709 |
Hose |
| 620 |
293650332 |
Crimp Clamp |
| 640a |
XXX |
Not Available As Spare Parts |
| 650 |
219704408 |
Tubing 16 Mm 1000Mm Long |
