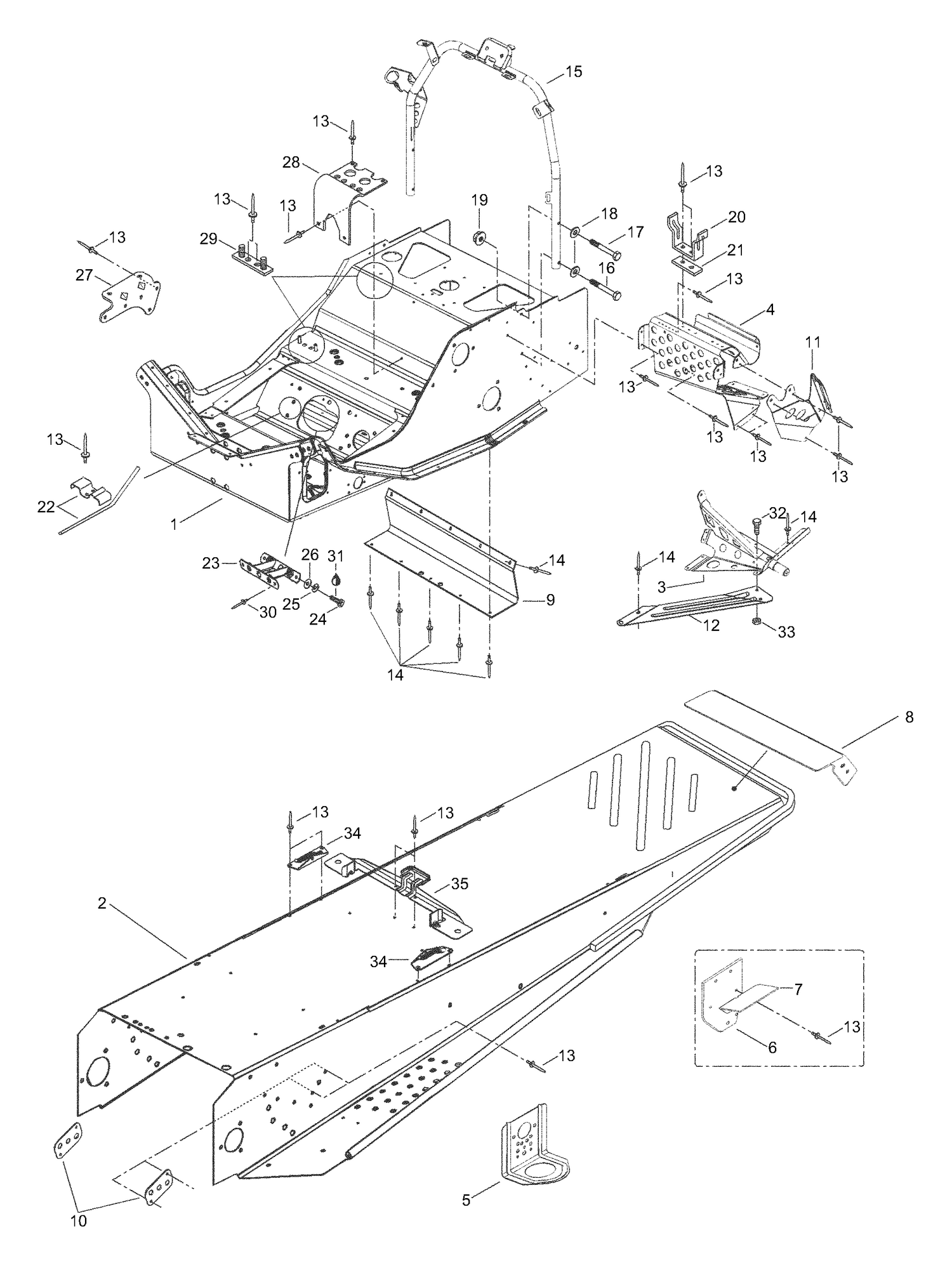

09- Frame
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5246775 | R.H. support |
| 3 | 5246776 | L.H. support |
| 4 | 518318933 | R.H. front footrest |
| 4 | 518318934 | L.H. front footrest |
| 5 | 518321495 | Front bracket |
| 6 | 5346835 | Rear bracket |
| 7 | 5346836 | Rear bracket support |
| 8 | 5246275 | Rear plate |
| 9 | 518321867 | Deflector |
| 10 | 5446847 | Reinf., front arm |
| 11 | 518308714 | Upper plate L.H. |
| 11 | 518308715 | Upper plate R.H. |
| 12 | 518321958 | R.H. reinf. plate |
| 12 | 518321959 | L.H. reinf. plate |
| 13 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 14 | 390402200 | Pop Rivet 3/16 |
| 15 | 518321428 | Handle steering supp. |
| 16 | 40002 | Screw M6x40 |
| 17 | 40003 | Screw M6x35 |
| 18 | 20003 | Washer |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 | 518202100 | Pulley Guard bracket |
| 21 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 22 | 518313700 | Rope guide |
| 23 | 518304741 | Reinforcement plate |
| 24 | 40036 | Screw M8x20 |
| 25 | 20014 | Spring washer |
| 26 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 27 | 518206300 | Muffler support |
| 28 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 29 | 518315300 | Support plate |
| 30 | 36108 | Rivet |
| 31 | 293800005 | Loctite 270, 250ml |
| 32 | 40366 | Screw M5x16 |
| 33 | 233251434 | Flanged Elastic Nut M5 This part replaces 33062. |
| 34 | 517266900 | Tank bracket R.H. |
| 34 | 517267000 | Tank bracket L.H. |
