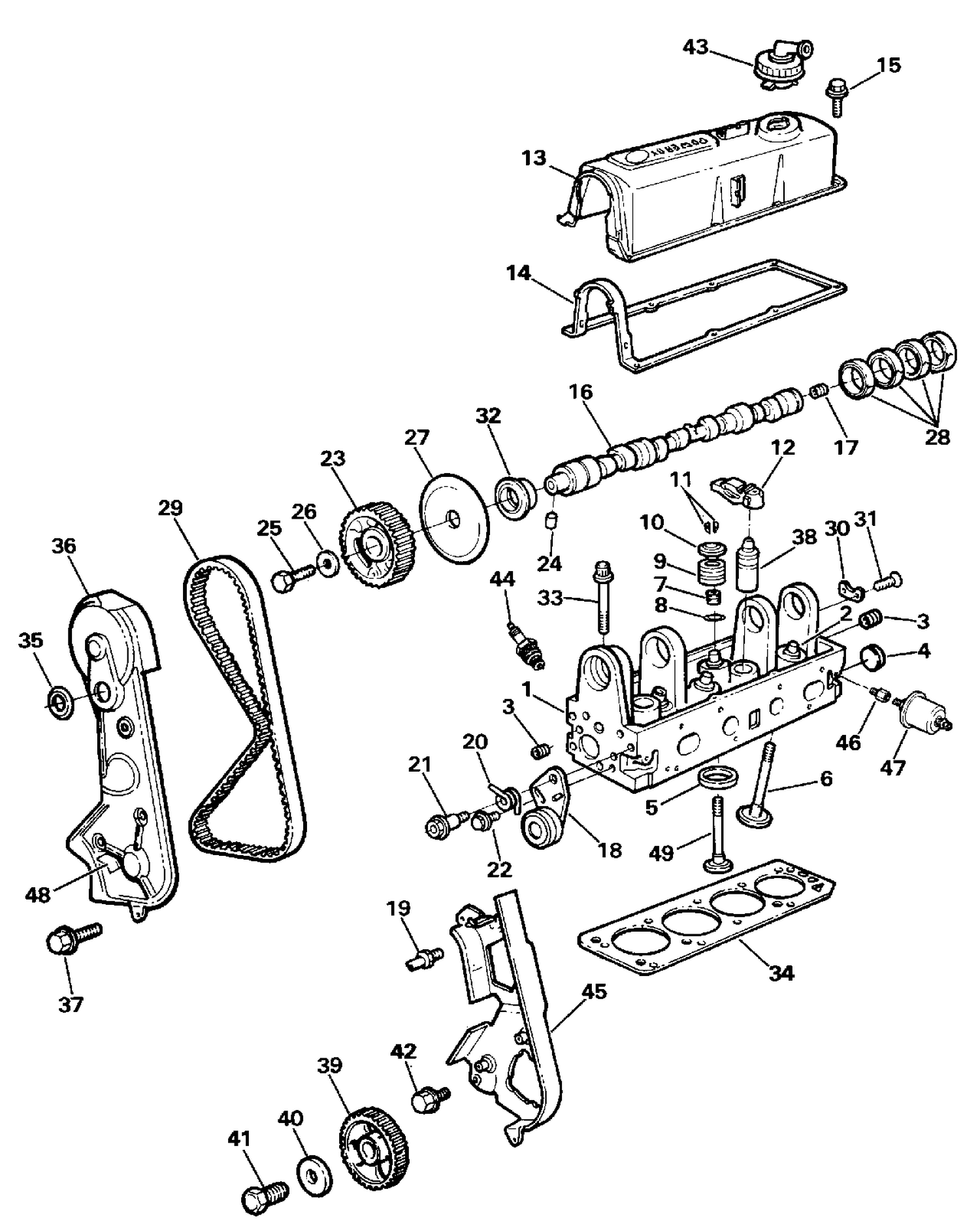

| Ref | Part Number | Description |
|---|
| 1 |
0986385 |
CYLINDER HEAD |
| 2 |
0914282 |
BUSHING, Intake valve guide |
| 3 |
3853108 |
PLUG, Oil gallery This part replaces 0914249. |
| 4 |
3852650 |
PLUG, Core hole This part replaces 0912932. |
| 5 |
0914501 |
SEAT INSERT, Exhaust valve |
| 6 |
0913142 |
VALVE, Intake, standard |
| 6 |
0914280 |
VALVE, Intake, 0.015" O.S. |
| 6 |
0914281 |
VALVE, Intake, 0.030" O/S |
| 7 |
0914504 |
SEAL, Intake, standard |
| 7 |
0914505 |
SEAL, Exhaust, standard |
| 7 |
0914506 |
SEAL, Intake, 0.015" O.S. |
| 7 |
0914507 |
SEAL, Intake, 0.030" O/S |
| 7 |
0914508 |
SEAL, Exhaust, 0.015" O.S. |
| 7 |
0914509 |
SEAL, Exhaust, 0.030" O.S. |
| 8 |
0913147 |
SHIM, Valve spring, .030 |
| 9 |
0913144 |
SPRING, Valve |
| 10 |
0913146 |
RETAINER, Valve spring |
| 11 |
0913148 |
KEY, Valve spring retainer |
| 12 |
0913149 |
ARM, Rocker |
| 13 |
0986384 |
VALVE COVER |
| 14 |
0912771 |
GASKET, Valve cover |
| 15 |
0914277 |
BOLT, Oil pan |
| 16 |
0913132 |
CAMSHAFT |
| 17 |
3853108 |
PLUG, Oil gallery This part replaces 0914249. |
| 18 |
0984875 |
TENSIONER, Timing belt |
| 19 |
0914248 |
STUD & WASHER |
| 20 |
0912758 |
SPRING, Tensioner |
| 21 |
0914256 |
BOLT, Tensioner spring |
| 22 |
0914257 |
BOLT, Tensioner to head |
| 23 |
0912759 |
SPROCKET |
| 24 |
0913152 |
PIN, Sprocket |
| 25 |
0914258 |
BOLT, Sprocket to camshaft |
| 26 |
0914259 |
WASHER, Sprocket |
| 27 |
0912934 |
GUIDE, Timing belt |
| 28 |
0913120 |
BEARING, Standard |
| 28 |
0914250 |
BEARING, 0.016" U.S. |
| 29 |
0912761 |
BELT, Timing |
| 30 |
0914260 |
PLATE |
| 31 |
0914261 |
SCREW & WASHER |
| 32 |
0984877 |
SEAL, Auxiliary shaft |
| 33 |
0913119 |
BOLT, Cylinder head |
| 34 |
0912764 |
GASKET, Cylinder head |
| 35 |
0912763 |
PLUG, Front cover |
| 36 |
0913117 |
COVER, Outer |
| 37 |
0914247 |
BOLT, Inner cover |
| 38 |
0985313 |
TAPPET, Valve, standard |
| 38 |
0986307 |
TAPPET, Valve, 0.020" O.S. |
| 39 |
0912759 |
SPROCKET |
| 40 |
0914671 |
WASHER, Sprocket |
| 41 |
0914294 |
BOLT, Sprocket |
| 42 |
0914247 |
BOLT, Inner cover |
| 43 |
0984646 |
CAP, Oil filler |
| 44 |
0912938 |
SPARK PLUG, RS12YC |
| 45 |
0913118 |
COVER, Inner |
| 46 |
0912414 |
ADAPTER, Oil pressure switch |
| 47 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 48 |
0913145 |
DECAL, Timing |
| 49 |
0913143 |
VALVE, Exhaust, standard |
| 49 |
0914278 |
VALVE, Exhaust, 0.015" O.S. |
