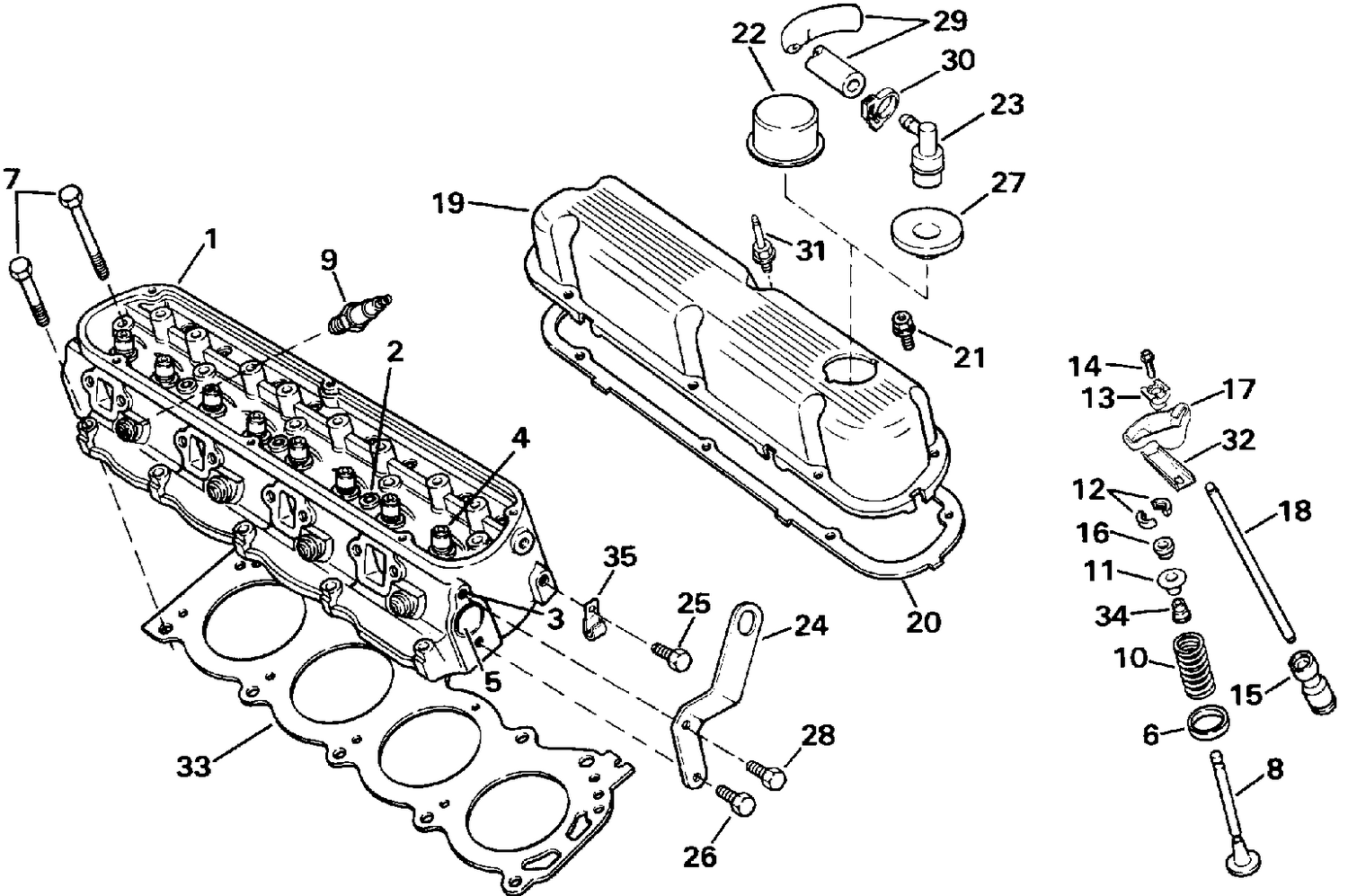

| Ref | Part Number | Description |
|---|
| 1 |
0986085 |
CYLINDER HEAD |
| 1 |
3853895 |
CYLINDER HEAD This part replaces 0986086. |
| 2 |
3853015 |
PLUG, Core hole This part replaces 0914141. |
| 3 |
3853016 |
INSERT, Thermactor hole This part replaces 0914142. |
| 4 |
3853017 |
BUSHING, Valve guide This part replaces 0914143. |
| 5 |
3852650 |
PLUG, Core hole This part replaces 0912932. |
| 6 |
3853030 |
INSERT, Exhaust valve seat This part replaces 0914158. |
| 7 |
3852769 |
BOLT, Cylinder head, 4 in. This part replaces 0913708. |
| 7 |
3852770 |
BOLT, Cylinder head, 2 1/2 in. This part replaces 0913709. |
| 7 |
3857029 |
Kit This part replaces 0913711. |
| 8 |
3852807 |
VALVE, Exhaust, standard This part replaces 0913747. |
| 8 |
3852808 |
VALVE, Intake, Standard This part replaces 0913748. |
| 8 |
3853027 |
VALVE, Exhaust, 0.015 in. O.S. This part replaces 0914154. |
| 8 |
3853028 |
VALVE, Intake, 0.015 in. O.S. This part replaces 0914156. |
| 8 |
3853029 |
VALVE, Intake, 0.030 in. O.S. This part replaces 0914157. |
| 9 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 10 |
3852809 |
SPRING, Valve, exhaust This part replaces 0913749. |
| 10 |
3852810 |
SPRING, Valve, intake This part replaces 0913750. |
| 11 |
3852811 |
RETAINER, Valve spring, exhaust This part replaces 0913751. |
| 11 |
3854303 |
RETAINER, Spring, intake This part replaces 0913752. |
| 12 |
3852672 |
KEY, Valve spring retainer This part replaces 0913163. |
| 13 |
3852671 |
SEAT, Rocker arm This part replaces 0913161. |
| 14 |
3852814 |
BOLT, Rocker arm This part replaces 0913754. |
| 15 |
3853847 |
TAPPET This part replaces 0985316. |
| 16 |
3852813 |
SLEEVE, Retainer, intake This part replaces 0913753. |
| 17 |
3852815 |
ROCKER ARM This part replaces 0913755. |
| 18 |
3852816 |
PUSH ROD, Standard This part replaces 0913756. |
| 18 |
3852817 |
PUSH ROD, Standard This part replaces 0913757. |
| 19 |
3853906 |
VALVE COVER, Starboard This part replaces 0986097. |
| 19 |
3853907 |
VALVE COVER, Port This part replaces 0986098. |
| 20 |
3852818 |
GASKET, Valve cover This part replaces 0913758. |
| 21 |
3853037 |
SCREW, Valve cover This part replaces 0914167. |
| 22 |
3852707 |
CAP, Oil fill This part replaces 0913469. |
| 23 |
3852820 |
PCV VALVE This part replaces 0913760. |
| 24 |
3852705 |
LIFT BRACKET This part replaces 0913460. |
| 25 |
3853419 |
SCREW, Clamp, front This part replaces 0915043. |
| 26 |
3853557 |
SCREW, Brace to alterntr bracket This part replaces 0915790. |
| 27 |
3852821 |
GROMMET, PCV valve This part replaces 0913761. |
| 28 |
3853389 |
SCREW, Bracket to engine This part replaces 0914995. |
| 29 |
0916077 |
HOSE, Crankcase vent |
| 30 |
0329653 |
CLAMP |
| 31 |
3852710 |
Stud This part replaces 0913481. |
| 32 |
3852819 |
GUIDE, Rocker arm This part replaces 0913759. |
| 33 |
3853732 |
GASKET, Cylinder head This part replaces 0913707. |
| 34 |
3852670 |
SEAL, Intake This part replaces 0913151. |
| 34 |
3853031 |
SEAL, Exhaust, 0.015 in. O.S. This part replaces 0914159. |
| 34 |
3853109 |
SEAL, Intake, 0.015 in. O.S. This part replaces 0914297. |
| 34 |
3853110 |
SEAL, Intake, 0.030 in. O.S. This part replaces 0914298. |
| 34 |
3853771 |
SEAL, Exhaust This part replaces 0913150. |
