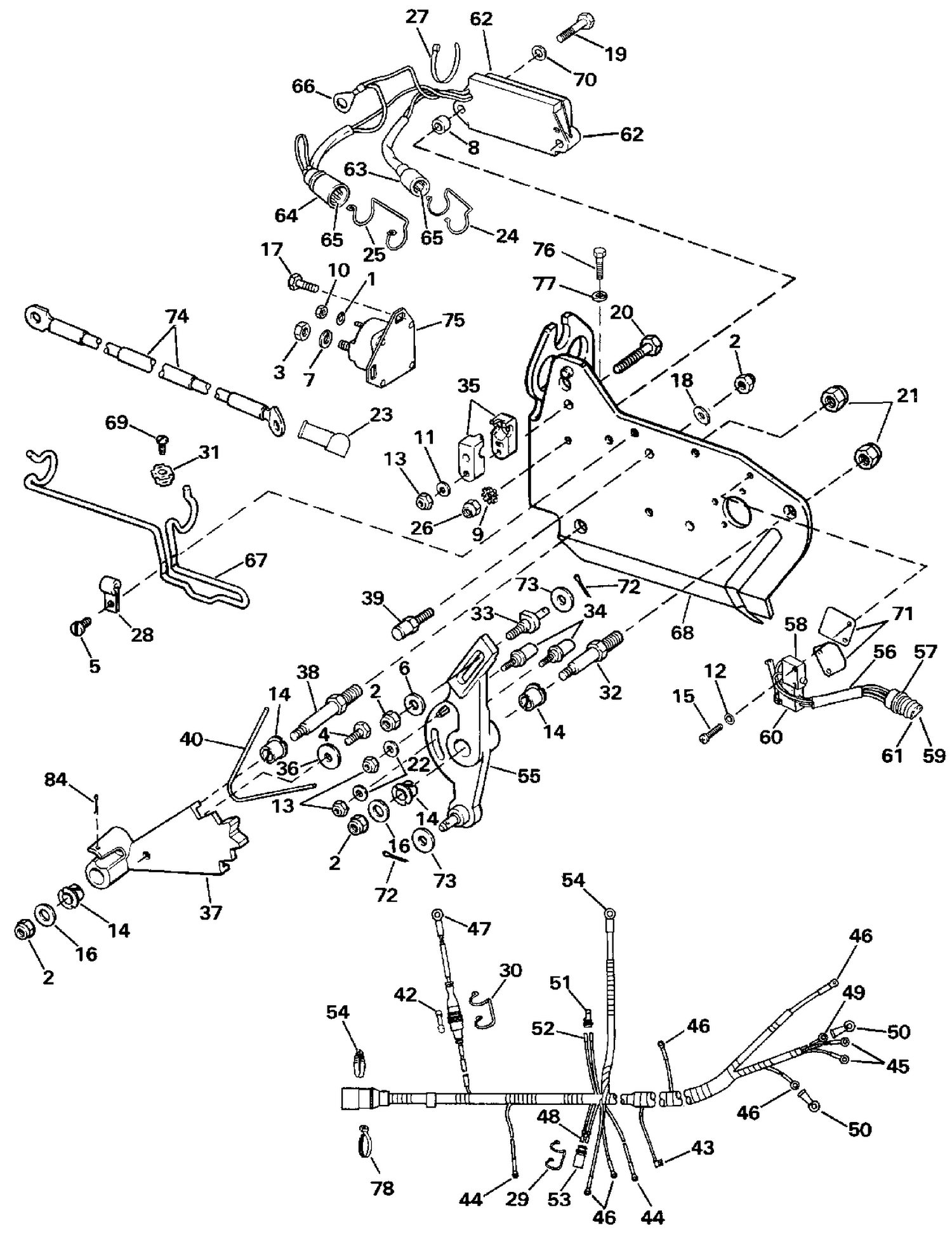

| Ref | Part Number | Description |
|---|
| 4 |
0304027 |
VIS, arbre de commande de sens de marche |
| 5 |
0303791 |
SCREW |
| 8 |
0911769 |
SPACER, Shift assist |
| 16 |
0328738 |
LOCKWASHER |
| 17 |
0317753 |
SCREW |
| 18 |
0329241 |
RONDELLE This part replaces 0305981. |
| 19 |
0325115 |
SCREW, Oil tank/EMM mount This part replaces 0321483. |
| 20 |
0913248 |
SCREW |
| 23 |
3852487 |
BOOT, Battery cable This part replaces 0910111. |
| 24 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 25 |
0512743 |
DISPOSITIF DE RETENUE |
| 26 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 27 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 28 |
0909424 |
CLAMP |
| 29 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 30 |
3852499 |
RETAINER, Fuse This part replaces 0910330. |
| 31 |
0318974 |
FASTENER, Cable clamp |
| 32 |
0911773 |
SHAFT, Shift lever |
| 33 |
0913263 |
PIN, Shift lever |
| 34 |
0911940 |
CAM, Switch |
| 35 |
0914680 |
ANCHOR, Shift cable This part replaces 0913249. |
| 37 |
0912593 |
SHIFT ACTUATOR |
| 38 |
0912094 |
SHAFT Pivot |
| 39 |
0985558 |
ADAPTER KIT |
| 40 |
0912686 |
SPRING, Shift interrupter |
| 41 |
0985729 |
CABLE ASSY., Engine |
| 54 |
3853786 |
CLAMP INSTRUMENT CABLE This part replaces 0980577. |
| 55 |
0985387 |
LEVER ARM & PIN |
| 56 |
0984051 |
SWITCH & CONNECTOR ASSY |
| 58 |
0982767 |
SWITCH & TERMINAL |
| 60 |
0984148 |
SWITCH & TERMINAL |
| 62 |
0984730 |
SHIFT ASSIST |
| 67 |
0985321 |
CLAMP, Cable |
| 68 |
0913492 |
BRACKET & DOWEL PIN |
| 69 |
0303686 |
SCREW, Fastener |
| 70 |
0329241 |
RONDELLE This part replaces 0306482. |
| 71 |
0985920 |
PLATE, Spacer |
| 74 |
0985743 |
LEAD, Solenoid to starter |
| 75 |
0586842 |
SOLENOID This part replaces 0985064. |
| 76 |
0130167 |
SCREW, Exh, tube to cylinder |
