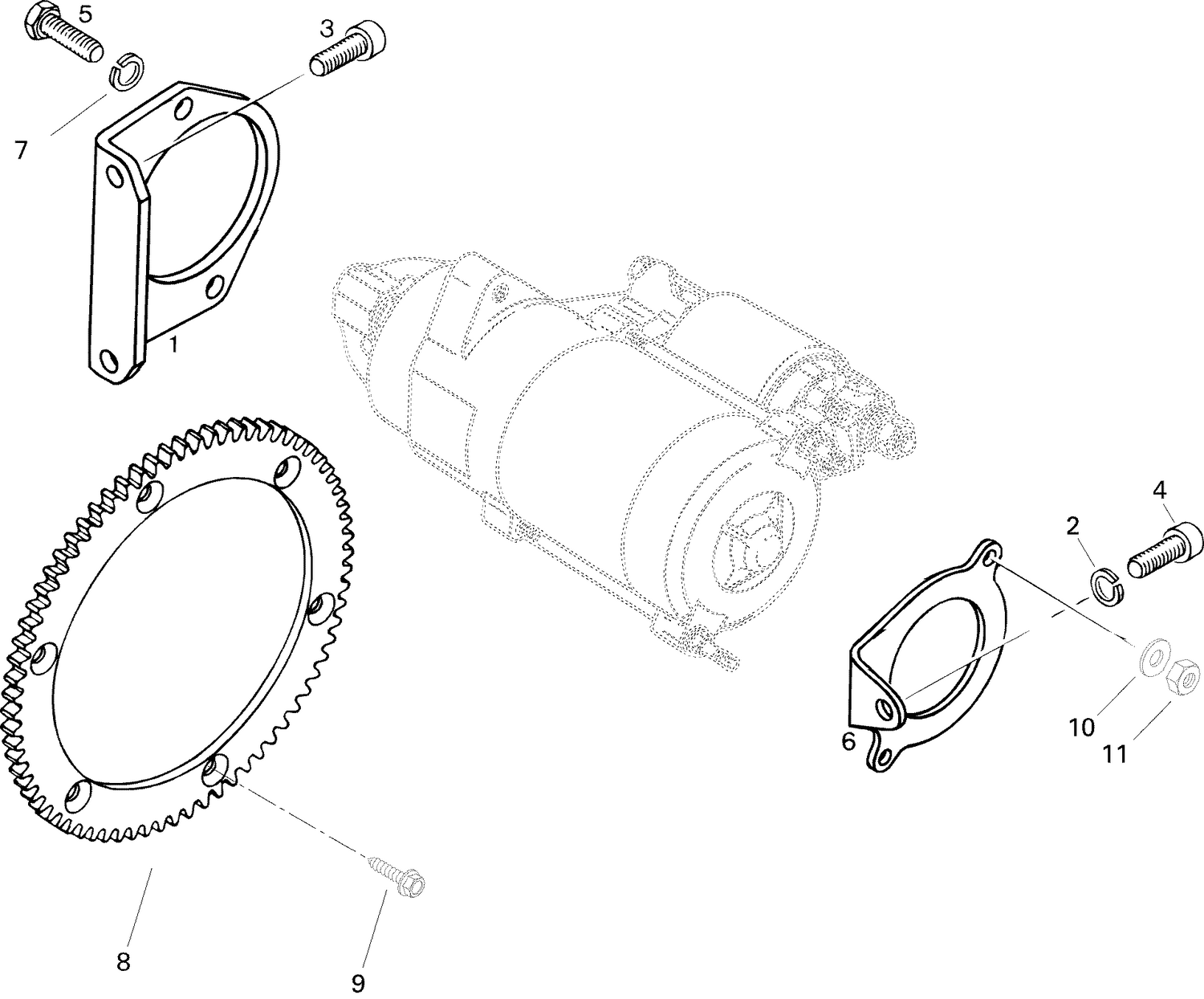

| Ref | Part Number | Description |
|---|
| 1 |
420951417 |
Starter Bracket |
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
205082044 |
Socket Head Screw M8 X 20 This part replaces 222982065. |
| 4 |
205082044 |
Socket Head Screw M8 X 20 This part replaces 222982065. |
| 5 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 6 |
420951427 |
Starter Support (MAG) |
| 7 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 8 |
414807500 |
Ring Gear (86 Theet) |
| 9 |
732600021 |
Screw M6 x 16 |
| 10 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
