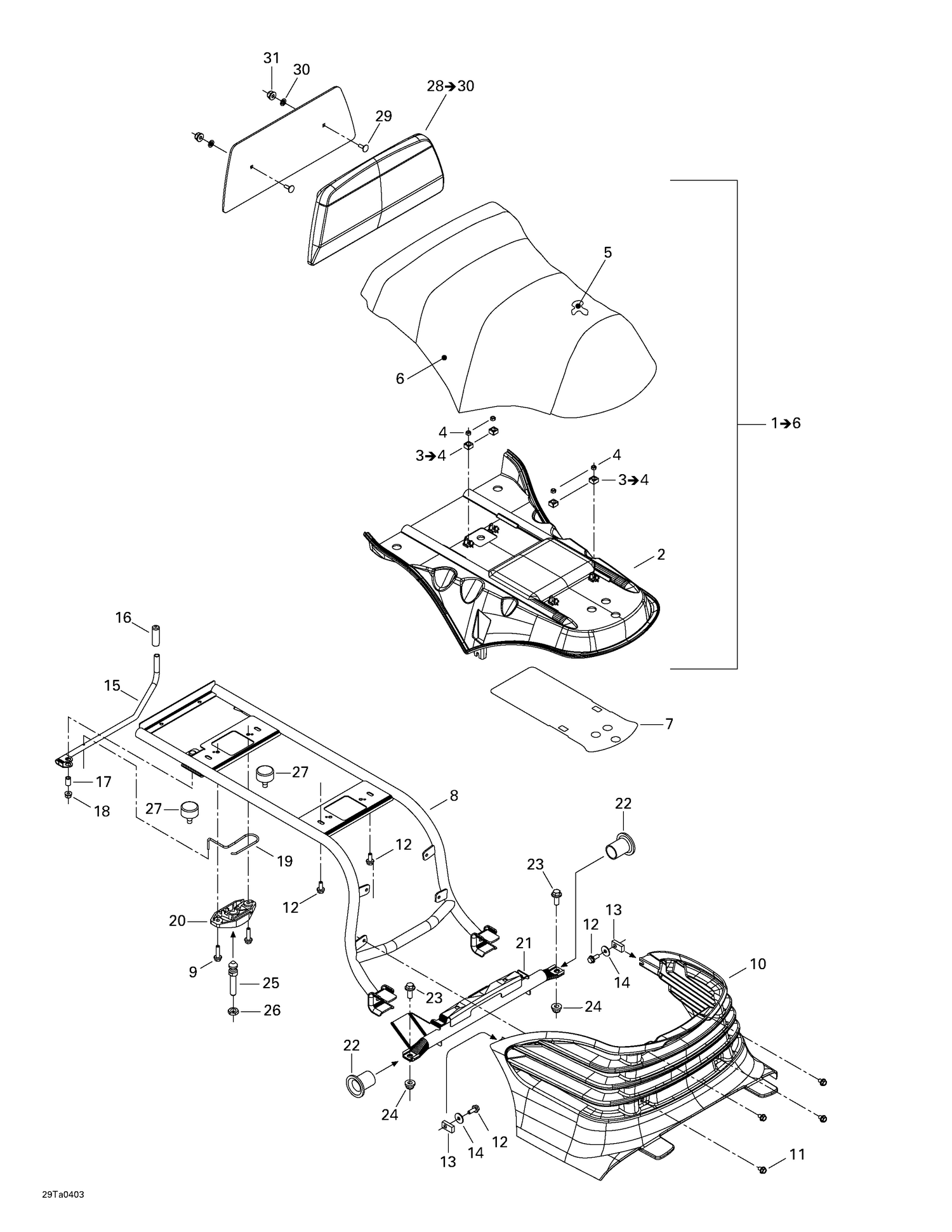

09- Seat
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Seat base ass'y |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | Not | Available As Spare Part - Seat Foam |
| 6 | 708000237 | Seat Cover |
| 7 | 708000160 | Reflective Sheet |
| 8 | 708000069 | Seat Support, Black |
| 9 | 207662544 | Hex. Flange Screw M6 X 25 |
| 10 | 705000879 | Engine Cover |
| 11 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 | 207661644 | Hex. Flange Screw M6 X 16 |
| 13 | 708000042 | Nut Housing M6 |
| 14 | 224061201 | Flat Washer |
| 15 | 708000074 | Lever, Black |
| 16 | 708000087 | Vinyl Cap, Black |
| 17 | 293900078 | Sleeve This part replaces 708000084. |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 708000073 | SPRING - Call your local BRP dealership |
| 20 | 708000034 | Latch Base |
| 21 | 708000044 | Seat Pivot, Black |
| 22 | 708000019 | SEAT BUSHING - Call your local BRP dealership |
| 23 | 207682044 | Hex. Flange Screw M8 X 20 |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 |
| 25 | 291000945 | SEAT STUD - Call your local BRP dealership |
| 26 | 232100600 | Hex. Jam Nut M10 |
| 27 | 708000758 | Rubber Stopper This part replaces 708000006. |
| 29 | 207763060 | Carriage Bolt M6 X 30 |
| 30 | 250100020 | Locking Nut |
