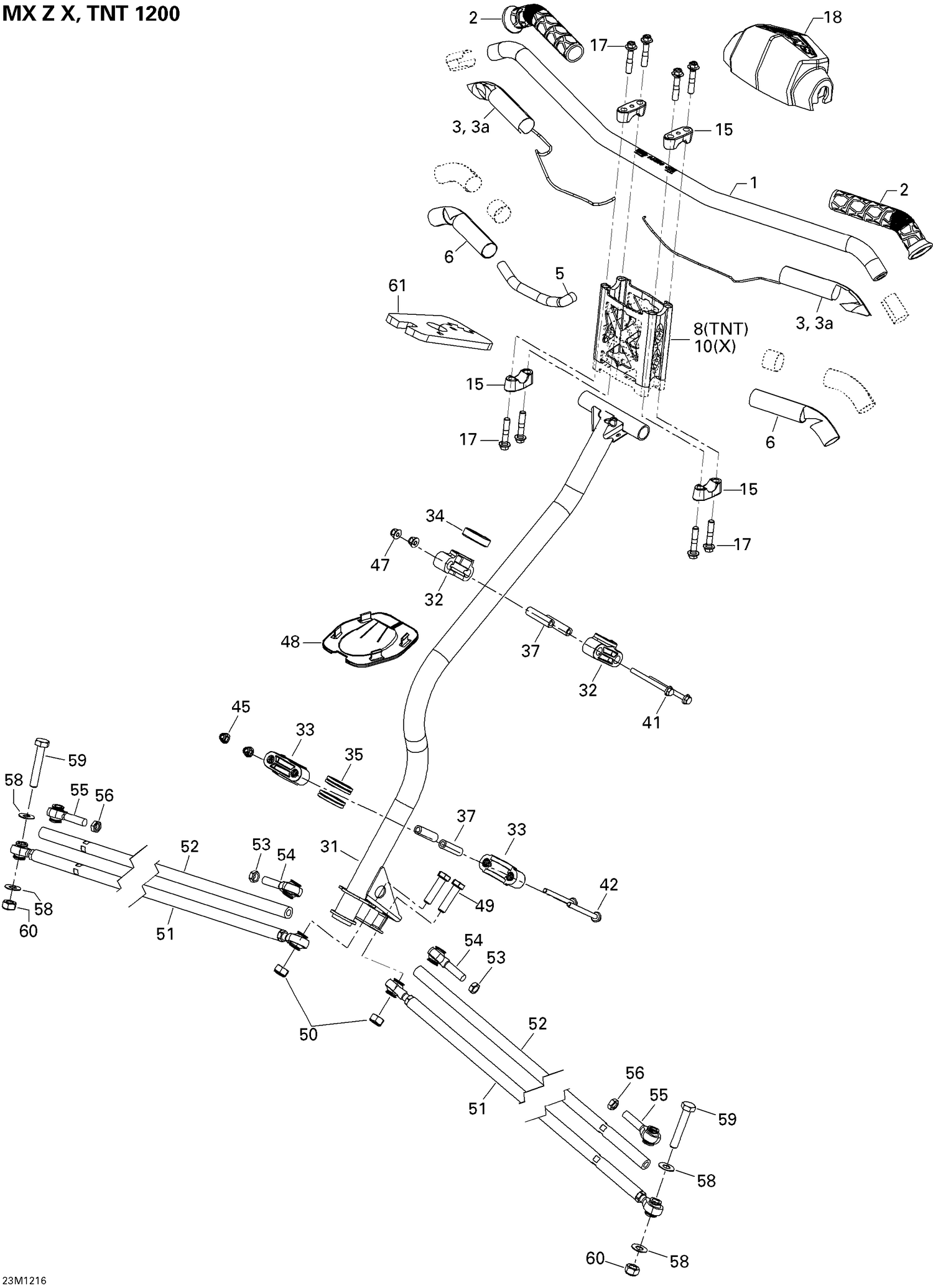

07- Steering — Parts Catalog

Ref	Part Number	Description
1	506152709	Handle Bar, Non Dyed Clear Anodizing This part replaces 506152458.
2	506152486	Grip This part replaces 506152226.
3	506152371	Heating Element 32W
3a	515175232	Male Terminal
5	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
6	506152360	Insulant
15	506152751	Steering Support This part replaces 506152395.
17	250000352	Hex. Flange Screw M8 X 40
18	506152192	Steering Pad
31	506152964	Steering Column This part replaces 506152469.
32	506152508	Upper Half-Housing
33	506152217	Lower Half-Housing
34	506152509	Upper Anti-Vibration Gasket
35	506152518	Lower Vibration Ring This part replaces 506152218.
37	506152297	Housing Bushing
41	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
42	207667044	Hex. Flange Screw M6 X 70
45	233261416	Elastic Flange Nut M6 X 1.0
47	233261416	Elastic Flange Nut M6 X 1.0
48	506152163	Plate
49	207004034	Hex. Screw M10 X 1.5 X 40
50	232500416	Elastic Stop Nut M10
51	Not	Available As Spare Part - Tie-Rod Ass'y
52	506152496	Tie-Rod Ass'y
53	506152081	LH Thread Ball Joint
54	250100016	LH Threaded Hex. Jam Nut M10
55	506152019	RH Threaded Ball Joint
56	732610010	RH Threaded Hex. Jam Nut M10
58	506152194	Washer
59	207006044	HEX. SCREW M10 X 60 - Call your local BRP dealership
60	232500416	Elastic Stop Nut M10
