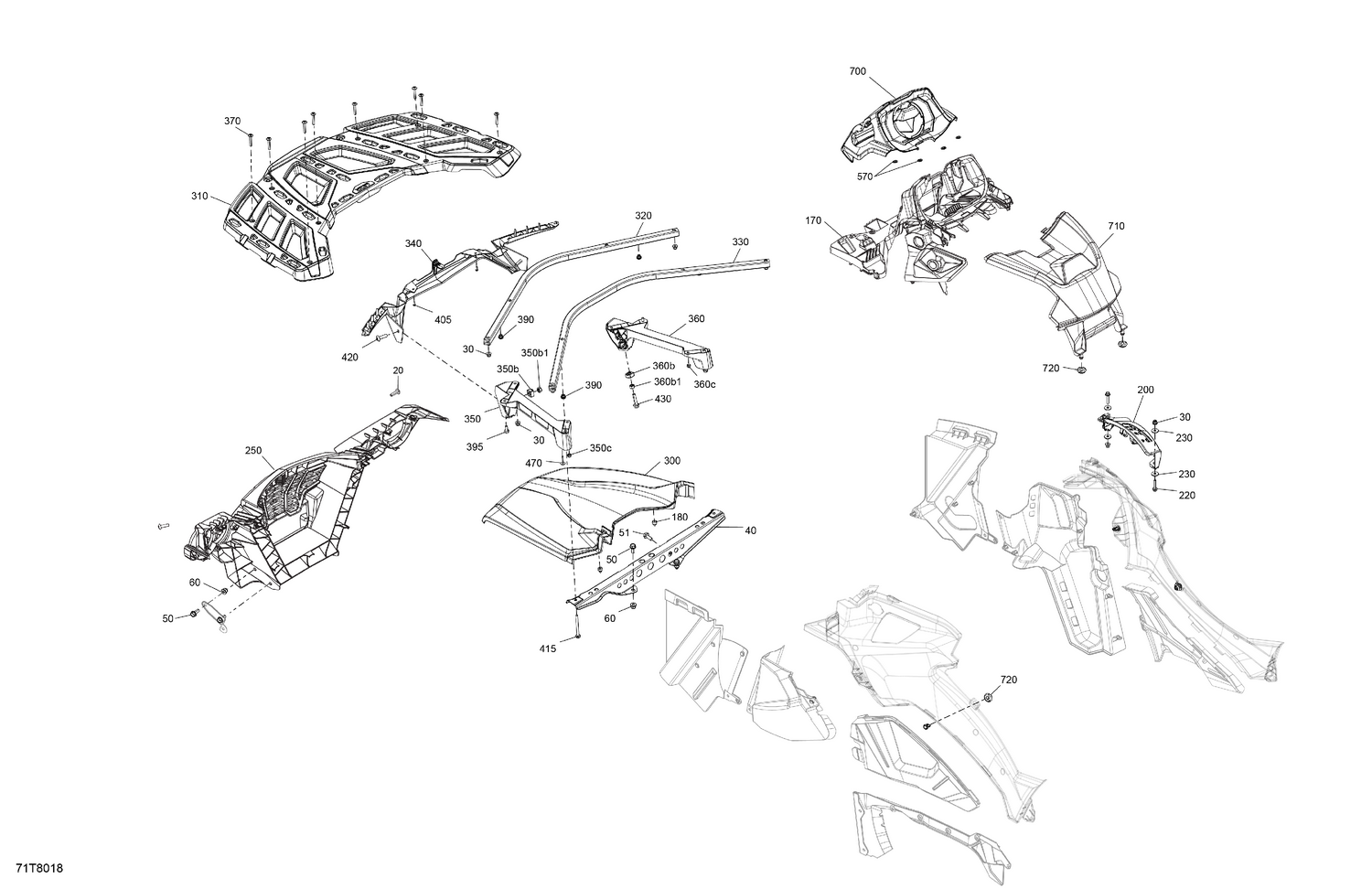

07- Body - Front Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 40 | 705006812 | Cargo Rack Center Support |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 170 | 715006101 | Console Support Ass'y This part replaces 715002245. |
| 180 | 293830005 | Rubber Bumper |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 250 | 705012822 | Fascia This part replaces 705007041. |
| 340 | 705004523 | Lugage Rack Moulding |
| 350b1 | 232581200 | Hex. Elastic Nut M8 Brass |
| 350c | 232561600 | Hex. Elastic Stop Nut M6 |
| 360b1 | 232581200 | Hex. Elastic Nut M8 Brass |
| 360c | 232561600 | Hex. Elastic Stop Nut M6 |
| 370 | 250000646 | Black, Torx Screw M6 X 35 |
| 390 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 405 | 241140060 | Screw K40 X 10 |
| 415 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 207683534 | Hex. Flange Screw M8 X 35 |
| 470 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 570 | 732610072 | Push Nut |
| 700 | 705006321 | Gauge Support |
| 710 | 715002783 | Dash Kit |
