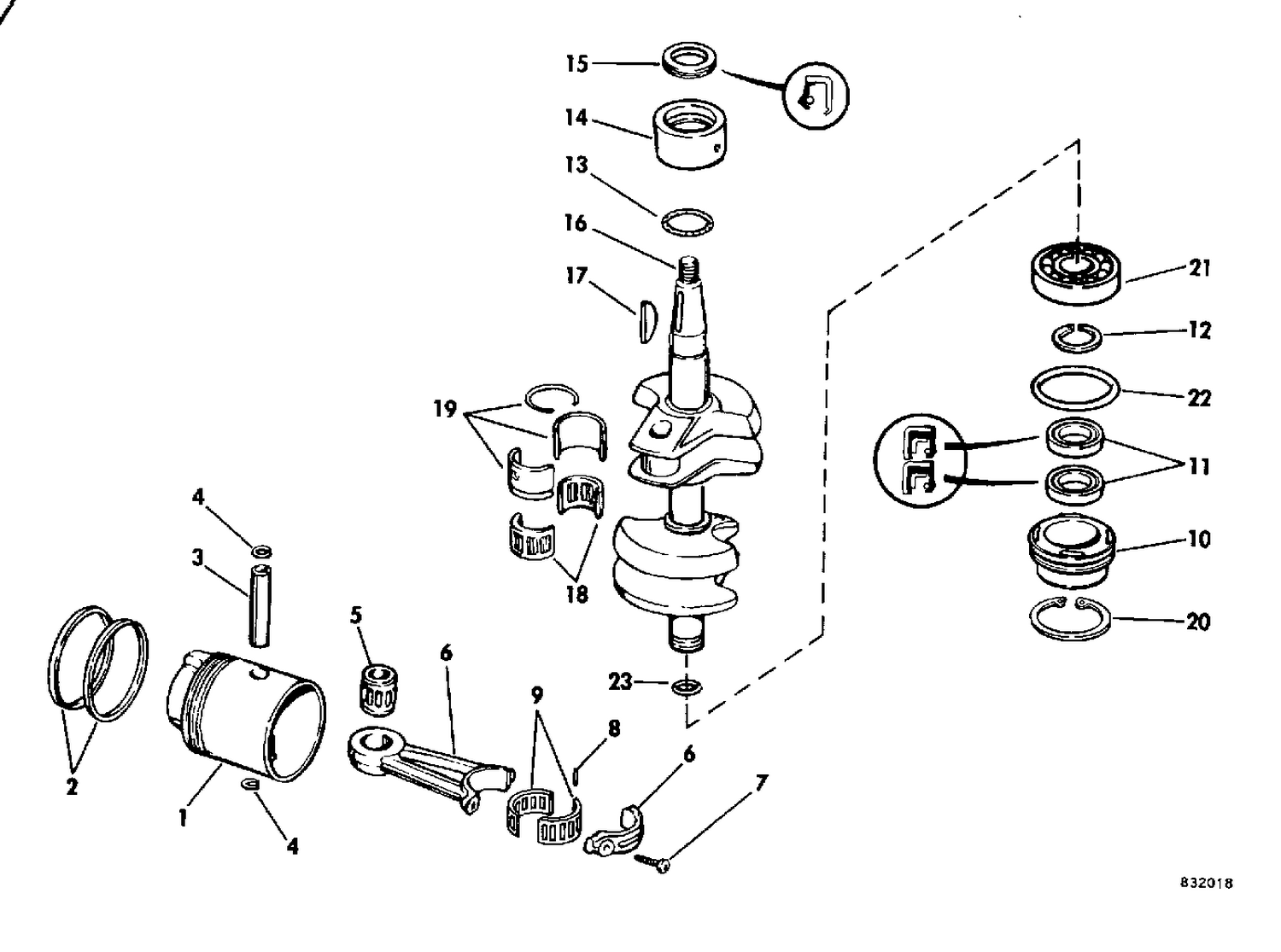

CRANKSHAFT & PISTON
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384692 | PISTON, Std |
| 1 | 0384715 | PISTON, .030 o.s |
| 2 | 0391170 | RING SET STD. |
| 2 | 0391416 | RING SET .030 |
| 3 | 0320663 | WRIST PIN |
| 4 | 0302577 | RETAINING RING |
| 5 | 0378251 | BEARING SET, Needle, wrist pin |
| 6 | 0378275 | CONNECTING ROD ASSY |
| 8 | 0387142 | NEEDLE SET, RD |
| 9 | 0437088 | BEARING Assy This part replaces 0388188. |
| 10 | 0386162 | HEAD, Crankcase |
| 13 | 0313754 | O RING |
| 14 | 0382596 | ROLLER BEARING & SEAL ASSEMBLY |
| 16 | 0393803 | CRANKSHAFT This part replaces 0386075. |
| 18 | 0378252 | BEARING ASSY., Needle |
| 19 | 0310433 | SLEEVE |
| 20 | 0319345 | SNAP RING |
| 22 | 0308876 | O RING CRANKCASE HEAD LOWER |
