| Ref | Part Number | Description |
|---|
| 1 |
0312694 |
DASH PANEL |
| 2 |
0312691 |
SCREW, Cash pannel |
| 3 |
0205870 |
DECAL, Dash panel |
| 4 |
0386947 |
IGNITION SWITCH This part replaces 0383493. |
| 8 |
KEY, |
Ignition |
| 10 |
0975257 |
SWITCH ASSEMBLLY |
| 12 |
0900696 |
WASHER |
| 15 |
0381629 |
INDICATING LIGHT, Temp |
| 18 |
0383351 |
LEAD ASSEBMBLY,Ignition to choke switch |
| 21 |
0279058 |
CABLE ASSEMBLY, Instrument |
| 34 |
0383538 |
BLOCKING DIODE ASSEMBLY |
| 38 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277708. |
| 39 |
0314574 |
HEX NUT |
| 40 |
0385407 |
BATTERY TERMINAL KIT This part replaces 0277709. |
| 42 |
0383327 |
CABLE ASSEMBLY, Motor |
| 50 |
0825886 |
TERMINAL This part replaces 0510541. |
| 0279062 |
0279062 |

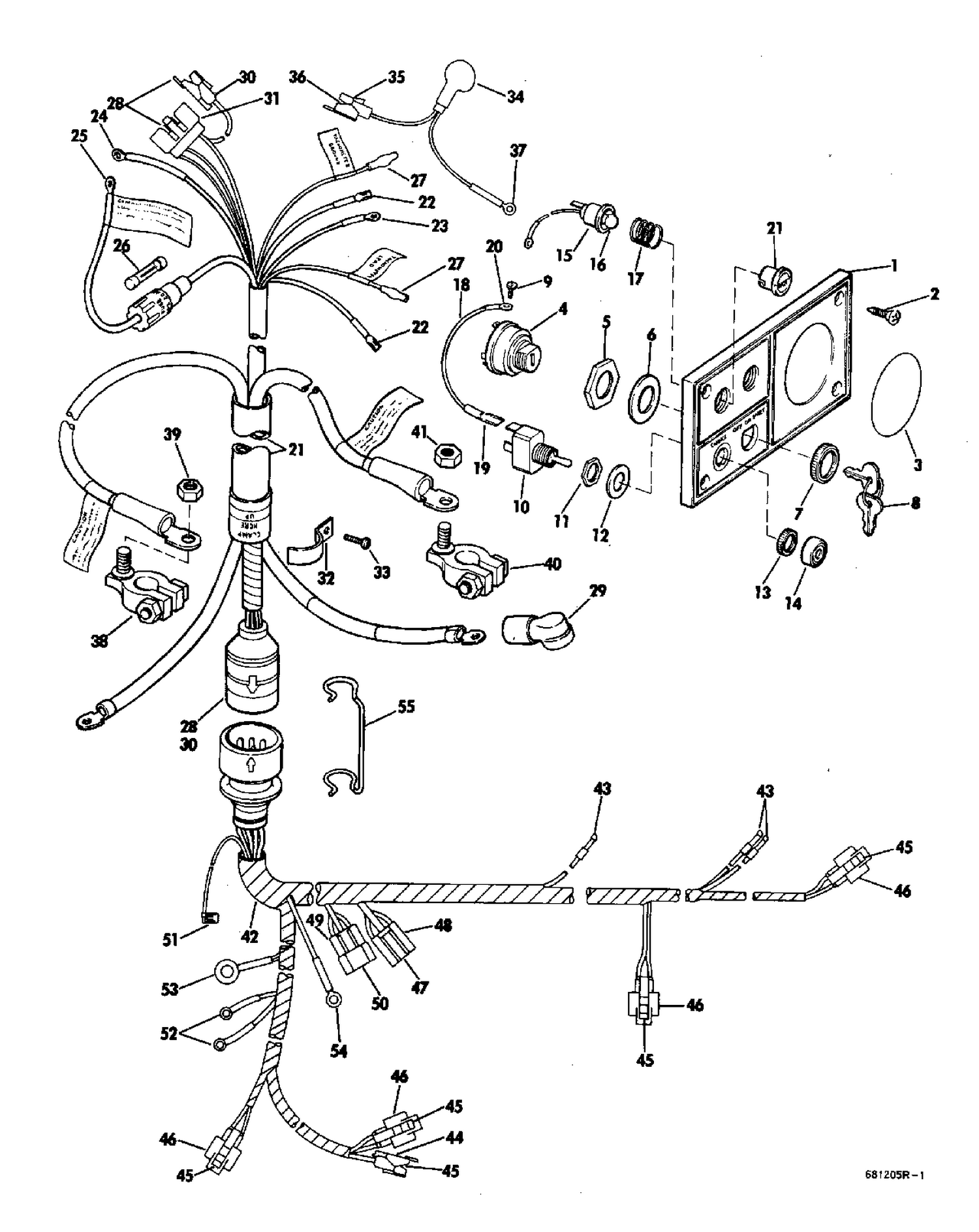

INSTRUMENTS AND CABLE ASSEMBLY |
