Home / BRP / EVINRUDE / 1988 / 8 / 02- Fuel System Except California Model

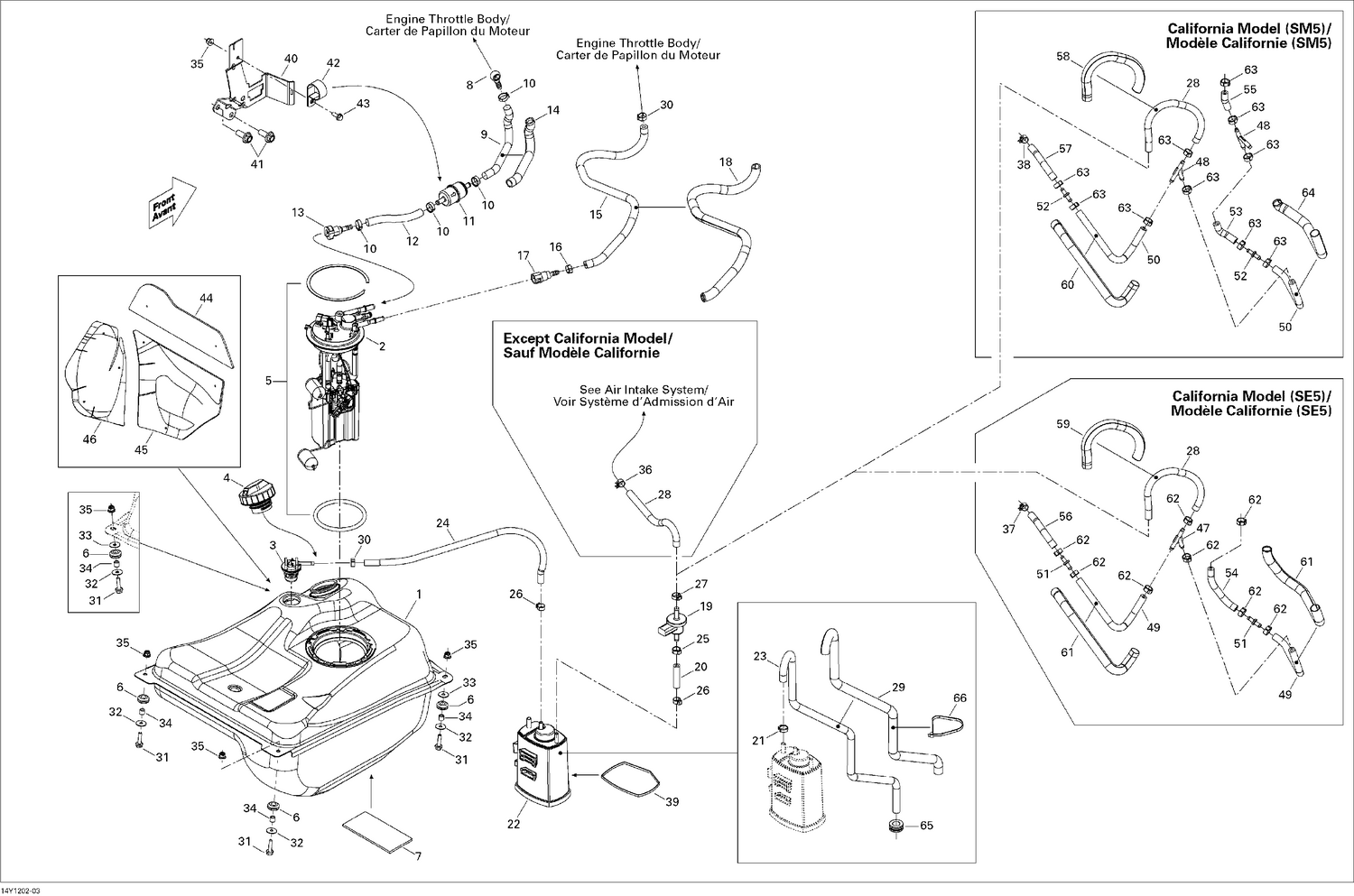

02- Fuel System Except California Model

02- Fuel System Except California Model

Parts (65)

RefPart NumberDescription
1 709000314 Fuel Tank
2 709000088 Pump Module
3 709000413 Rollover Valve This part replaces 709000127.
4 709000660 Fuel Cap This part replaces 709000414.
5 219800248 Seal Kit This part replaces 709000203.
6 709000582 Grommet This part replaces 293720053.
7 709000130 Carpet
8 709000137 BANJO FITTING - Call your local BRP dealership
9 709000264 Fuel Line 7.9 mm, Meter
10 293650125 Oetiker Clamp
11 513034047 Fuel Filter This part replaces 709000100.
12 709000265 Fuel Line 7.9 mm, Meter
13 709000125 Female Quick Fitting Ass'y
14 219704408 Tubing 16 Mm 1000Mm Long
15 709000266 HOSE 6,35MM ID - 620MM - Call your local BRP dealership
16 293650046 Oetiker Clamp
17 293710192 Quick Connect Pipe Fitting This part replaces 709000141.
18 513033412 Tubing
19 709000443 Bleed Valve This part replaces 709000108.
20 709000254 HOSE - Call your local BRP dealership
21 293650047 Crimp Clamp, 15.3-706R
22 709000090 Vapor Canister
23 709000277 Formed Hose
24 513033565 Hose
25 293650047 Crimp Clamp, 15.3-706R
26 293650025 Oetiker Gear Clamp
27 293650047 Crimp Clamp, 15.3-706R
28 709000253 HOSE - Call your local BRP dealership
29 513033412 Tubing
30 293650025 Oetiker Gear Clamp
31 207662544 Hex. Flange Screw M6 X 25
32 224060201 Flat Washer
33 224060201 Flat Washer
34 709000162 Bushing
35 233261414 Hex. Flange Elastic Nut M6 x 1.0
36 414415200 Spring Clamp
37 XXX Not Available As Spare Parts
38 XXX Not Available As Spare Parts
39 293750008 Tie Wrap 368 mm
40 709000150 Support
41 207602544 Hex. Flange Screw M10 X 25
42 513033047 Open Clamp
43 207661644 Hex. Flange Screw M6 X 16
44 709000157 Reflective Sheet
45 709000158 REFLECTIVE SHEET - Call your local BRP dealership
46 709000159 REFLECTIVE SHEET - Call your local BRP dealership
47 XXX Not Available As Spare Parts
48 XXX Not Available As Spare Parts
49 XXX Not Available As Spare Parts
50 XXX Not Available As Spare Parts
51 XXX Not Available As Spare Parts
52 XXX Not Available As Spare Parts
53 XXX Not Available As Spare Parts
54 XXX Not Available As Spare Parts
55 XXX Not Available As Spare Parts
56 XXX Not Available As Spare Parts
57 XXX Not Available As Spare Parts
58 XXX Not Available As Spare Parts
59 XXX Not Available As Spare Parts
60 XXX Not Available As Spare Parts
61 XXX Not Available As Spare Parts
62 XXX Not Available As Spare Parts
63 XXX Not Available As Spare Parts
64 XXX Not Available As Spare Parts
65 293720087 Grommet
