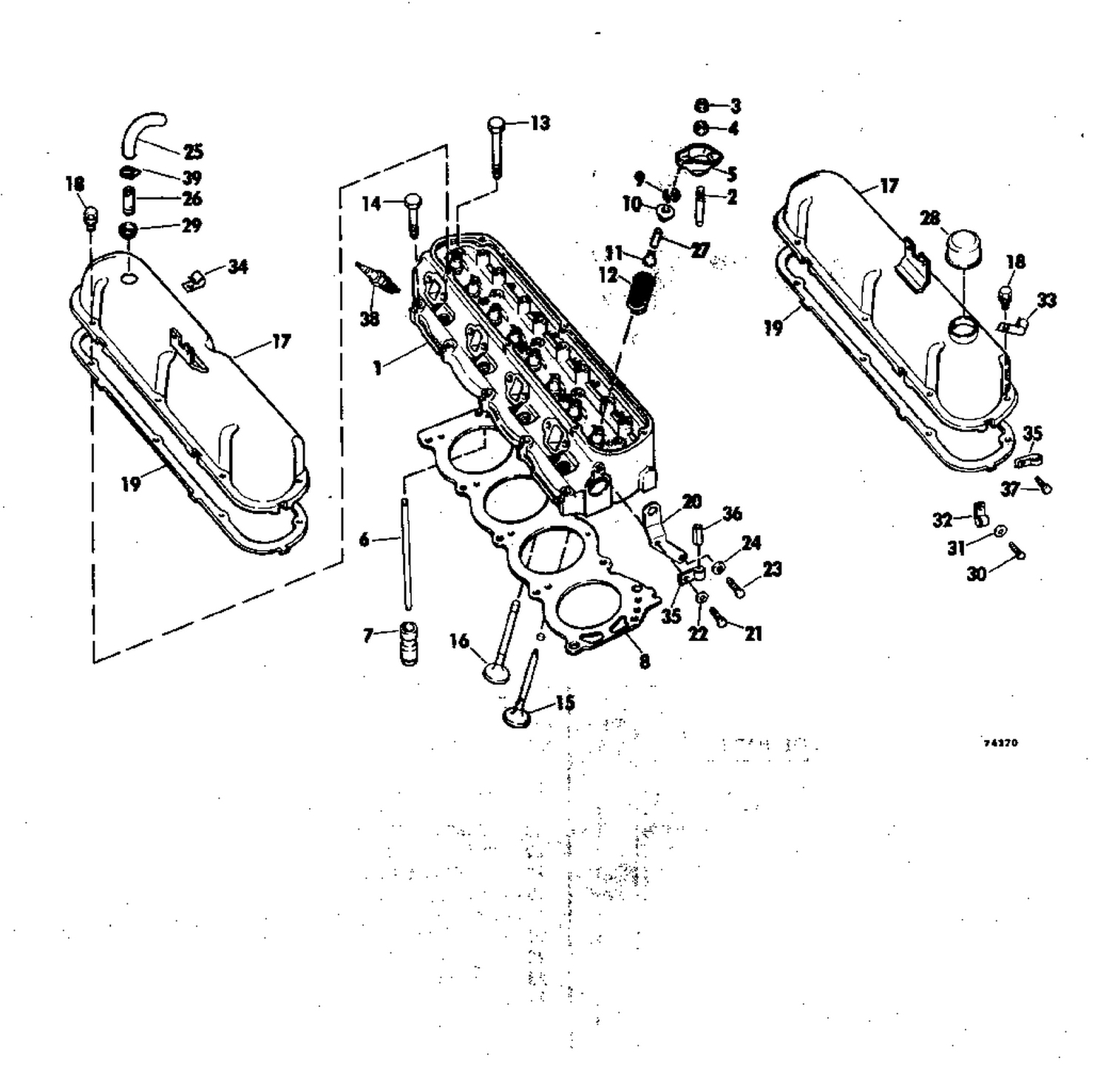

| Ref | Part Number | Description |
|---|
| 1 |
D50Z-6049-B |
HEAD ASSY |
| 1 |
D5TZ-6049-A |
HEAD ASSY |
| 1 |
D7JE-6049-CC |
HEAD ASSY |
| 1 |
D7JE-6049-DB |
HEAD ASSY. |
| 1 |
D7JE-6049-GA |
HEAD ASSY |
| 2 |
C9OZ-6A527-A |
STUD, Rocker arm std. |
| 2 |
C9OZ-6A527-B |
STUD, Rocker arm, .006'' O/S |
| 2 |
C9OZ-6A527-C |
STUD, Rocker arm, .010'' O/S |
| 2 |
C9OZ-6A527-D |
STUD, Rocker arm, .015'' O/S |
| 3 |
D0AZ-6A529-A |
NUT, Stud |
| 4 |
C2OZ-6A528-C |
SEAT, Rocker arm fulcrum |
| 5 |
C6OZ-6564-B |
ARM,Valve rocker |
| 6 |
C9OZ-6565-A |
PUSH ROD |
| 6 |
C9OZ-6565-B |
PUSH ROD |
| 6 |
C9OZ-6565-C |
PUSH ROD,.060" o/s |
| 6 |
D0OZ-6565-D |
PUSH ROD,060"o/s |
| 6 |
D7OZ-6565-A |
PUSH ROD |
| 7 |
D1AZ-6500-A |
VALVE LIFTER |
| 8 |
D0JE-6031-A |
GASKET,Cyl.head |
| 8 |
D7JE-6051-AB |
GASKET, Cyl. head |
| 8 |
D7JE-6051-BB |
GASKET,Cyl.head |
| 8 |
D9JE-6051-C |
GASKET,Cyl.head |
| 9 |
7HA-6518-A |
KEY, Valve retainer |
| 10 |
B9A-6514-A |
RETAINER,Valve spring |
| 10 |
D3OZ-6514-A |
RETAINER, Valve spring, exh |
| 10 |
D4AZ-6514-A |
RETAINER, Valve spring, intake |
| 11 |
C7AZ-6571-B |
SEAL, Guide & stem |
| 11 |
D4AZ-6571-A |
SEAL,Valve guide & stem |
| 11 |
D6OZ-6571-A |
SEAL,Valve guide & stem |
| 12 |
D0OZ-6513-B |
SPRING, Valve |
| 12 |
D3OZ-6513-A |
VALVE SPRING, Exh |
| 12 |
D5OZ-6513-A |
VALVE SPRING,Exh. |
| 12 |
D7JE-6513-A3A |
A VALVE SPRING,Exh |
| 12 |
D9OZ-6513-B |
VALVE SPRING,Int. |
| 13 |
684662-S |
BOLT,Cyl.head |
| 13 |
C2OZ-6065-A |
BOLT,Cyl.head,2.32" |
| 13 |
D9OZ-6065-B |
BOLT,Cyl.head,4-5/16" |
| 14 |
384663-S |
BOLT, Cyl head |
| 14 |
C2OZ-6065-B |
BOLT,Cyl.head,3.94" |
| 14 |
C9OZ-6065-A |
BOLT,Cyl.head,2-1/2" |
| 15 |
D2TZ-6505-A |
EXH VALVE, Std |
| 15 |
D2TZ-6505-B |
EXH VALVE, .003'' o/s |
| 15 |
D2TZ-6505-C |
EXH VALVE, .015'' o/s |
| 15 |
D2TZ-6505-D |
EXH VALVE, .030'' o/s |
| 15 |
D5TZ-6505-A |
EXH.VALVE,Std |
| 15 |
D5TZ-6505-B |
EXH.VALVE,.003" o.s |
| 15 |
D5TZ-6505-D |
EXH.VALVE,..030" o/s |
| 15 |
D7DZ-6505-A |
EXH, Valve, std |
| 15 |
D7DZ-6505-B |
EXH, Valve, .003" o/s |
| 15 |
D7DZ-6505-C |
EXH. VALVE, 0.15" o/s |
| 15 |
D7DZ-6505-D |
EXH. VALVE,.030" o/s |
| 15 |
F5YX-6505-C |
EXH.VALVE,.015" o/s |
| 16 |
D2TZ-6507-A |
INT VALVE, Std |
| 16 |
D2TZ-6507-B |
INT VALVE, .003'' o/s |
| 16 |
D2TZ-6507-C |
INT VALVE, .015 o/s |
| 16 |
D2TZ-6507-D |
INT VALVE, .030'' o/s |
| 16 |
D5TZ-650-7-A |
INT VALVE, Std |
| 16 |
D5TZ-6507-B |
ING. VALVE,.003" o/s |
| 16 |
D5TZ-6507-C |
INT.VALVE,.015" o/s |
| 16 |
D5TZ-6507-D |
INT. VALVE, .030" o/s |
| 17 |
D3JE-6582-AA |
VALVE COVER, Stbd. |
| 17 |
D3JE-6A505-AA |
VALVE COVER, Port |
| 18 |
356748-S |
BOLT, OIL PAN, 1/4"-20 x 9/16" |
| 19 |
D0AZ-6584-B |
GASKET,Valve cover |
| 19 |
D6AZ-6584-A |
GASKET,Valve cover |
| 20 |
0908748 |
LEFTING BRKT.,Cy.,head |
| 21 |
3063838 |
SCREW,Lift bracket,upper |
| 22 |
0303269 |
L'WASHER, Upper |
| 23 |
0306834 |
BOLT, Throttle lever retainer |
| 24 |
0120177 |
L'WASHER, Alternator to brkt |
| 25 |
C6A2-6A664-N |
HOSE,C'case vent.tube |
| 25 |
C6AZ-6A664-N |
HOSE, C'case vent tube |
| 25 |
D2AE-6A664-GA |
HOSE,C'[case vent.tube |
| 26 |
D0AZ-6A666-A |
P C V VALVE, Stbd |
| 27 |
D4AZ-6517-A |
SLEEVE, Valve spring ret |
| 28 |
D2AE-6766-MA |
CAP, Engine breather |
| 29 |
C8AZ-6A892-A |
RETAINER,Vent valve |
| 29 |
C8SZ-6A892-A |
RETAINER,Vent valve |
| 29 |
D0OZ-6A892-A |
RETAINER, Vent valve |
| 30 |
0311394 |
BOLT, Bracket to head |
| 31 |
0304671 |
LOCKWASHER, Coupler to flywheel |
| 32 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908750. |
| 33 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 35 |
3852457 |
CLAMP, Hose to exhaust manifold This part replaces 0908749. |
| 36 |
0908595 |
RETAINER, Ign leads |
| 37 |
0311394 |
BOLT, Bracket to head |
| 38 |
0979826 |
GASKET, Cylinder head |
| 38 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 38 |
SPARK |
PLUG |
