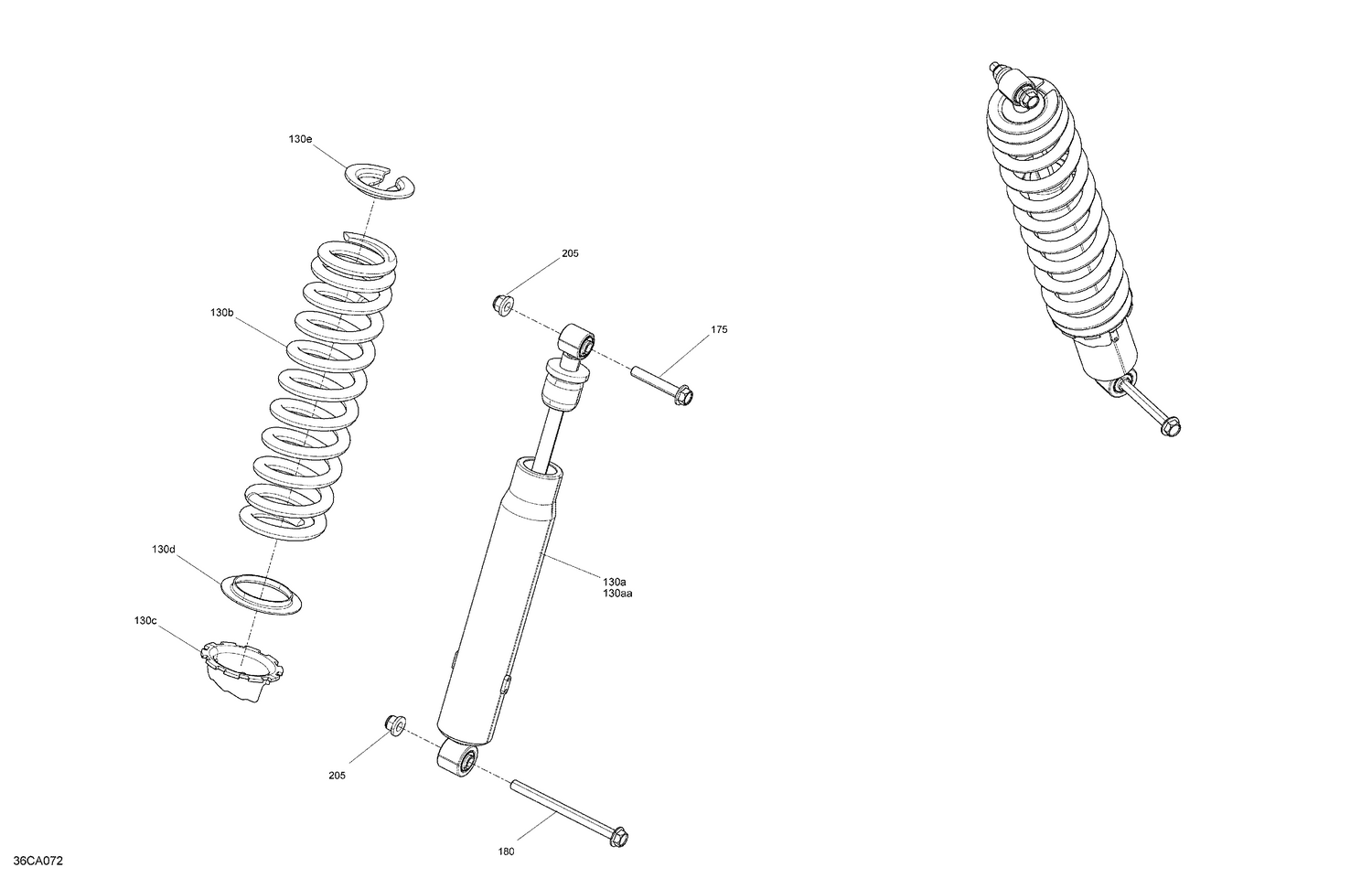

05- Suspension - Rear Shocks
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706002853 | Rear Shock Absorber |
| 130aa | 706003416 | Suspension Arm Bushing |
| 130b | 706003662 | Manta Green, Rear Compression Spring |
| 130c | 706000910 | Adjustment Ring |
| 130d | 706000911 | Protector Ring |
| 130e | 706001894 | Spring Cup |
| 175 | 207606046 | Hex. Flange Screw M10 X 6 |
| 180 | 230603046 | Hex. Flange Screw, M10 X 130 |
