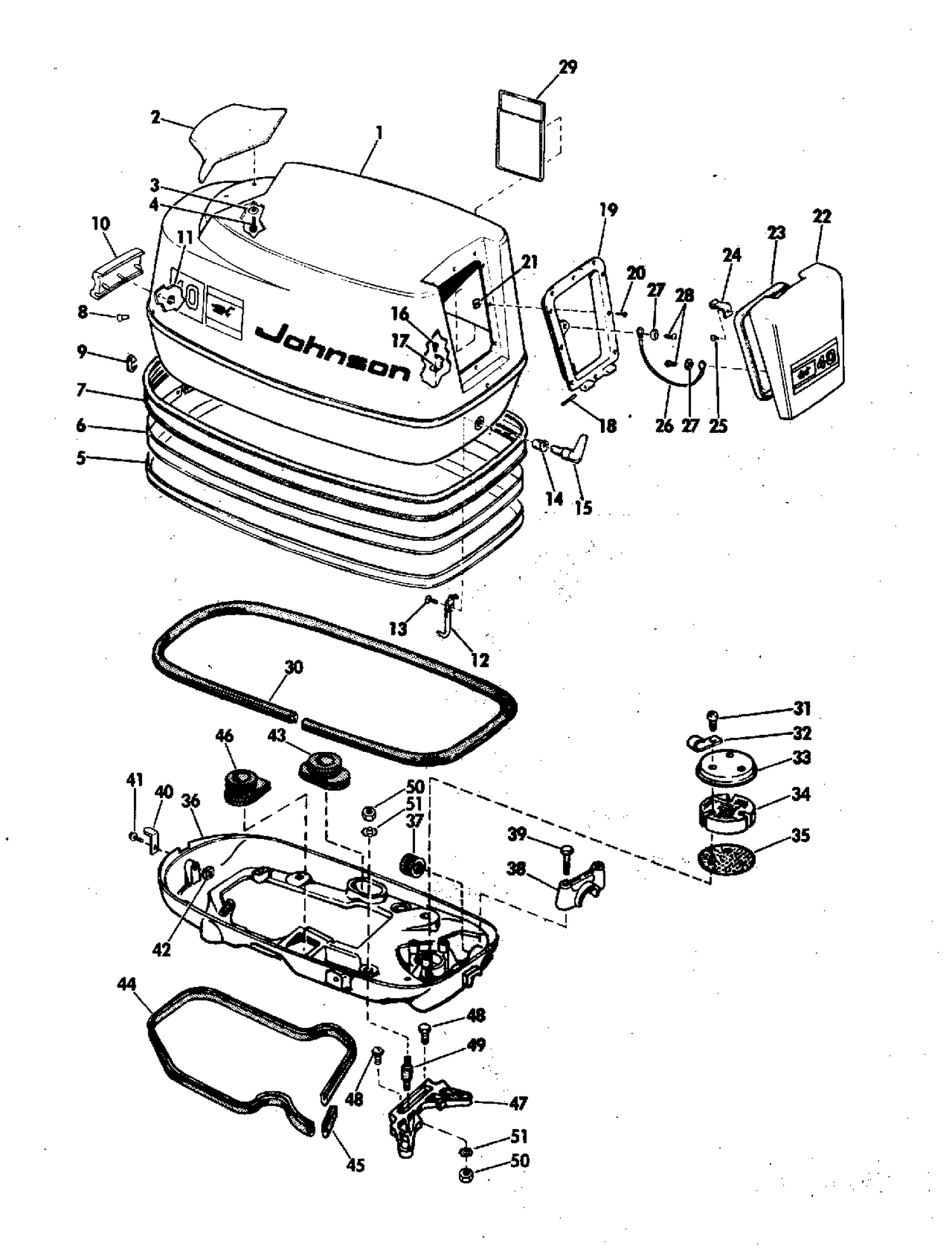

| Ref | Part Number | Description |
|---|
| 1 |
0384345 |
MOTOR COVER ASSY |
| 1 |
0384346 |
MOTOR COVER ASSY |
| 2 |
0307678 |
HANDLE, Tilt |
| 3 |
0306407 |
LOCCKWASHER,Cover latch |
| 5 |
0312547 |
INSERT, Molding strip |
| 6 |
0310317 |
BANDING TRIM, Molding strip |
| 7 |
0310279 |
MOLDING STRIP, Cover |
| 8 |
0310570 |
RIVERT, Motor cover |
| 9 |
0310227 |
CLIP, Banding |
| 10 |
0312548 |
COVER, Molding strip, rear |
| 11 |
0204307 |
FASTENER |
| 12 |
0378322 |
LINK & HOOK |
| 13 |
0303311 |
SCR,Clamp,eng cable |
| 14 |
0553769 |
BUSHING |
| 15 |
0308293 |
HANDLE, Front latch |
| 16 |
0307907 |
SCREW |
| 17 |
0307908 |
SPRING |
| 18 |
0306106 |
HINGE PIN |
| 19 |
0379117 |
FRAME & FASTENER ASSY |
| 22 |
0385099 |
FRONT DOOR ASSEMBLY |
| 23 |
0307819 |
SEAL, Door |
| 26 |
0379116 |
STRAP, Door |
| 27 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 28 |
0307426 |
SCREW |
| 29 |
0314595 |
CASE, Owner card |
| 30 |
0313173 |
SEAL, Motor cover |
| 31 |
0311020 |
SCREW, Clamp |
| 32 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 33 |
0305376 |
COVER, Silencer |
| 34 |
0305375 |
PAD, Silencer |
| 35 |
0305377 |
PLATE, Silencer |
| 36 |
0382628 |
LOWER MOTOR COVER ASSEMBLY |
| 37 |
0313779 |
NUT, Shorting switch |
| 38 |
0325972 |
COLLIER, câbles électriques This part replaces 0313786. |
| 40 |
0307290 |
HOOK, Cover to housing |
| 41 |
0307113 |
SCREW, Hook to cover |
| 43 |
0304019 |
CROMMET, CONTROL SHAFT |
| 44 |
0553784 |
SEAL, Lower cover, lalrge |
| 45 |
0553770 |
SEAL, Lower cover, small |
| 46 |
0306222 |
GROMMET |
| 47 |
0384339 |
BRACKET, Lower cover |
| 48 |
0309705 |
SCREW This part replaces 0307155. |
| 49 |
0379061 |
MOUNT, Lower cover |
| 51 |
0306799 |
L'WASHER,Bracket to hsg. |
| 0384774 |
0384774 |
DECAL SET |
