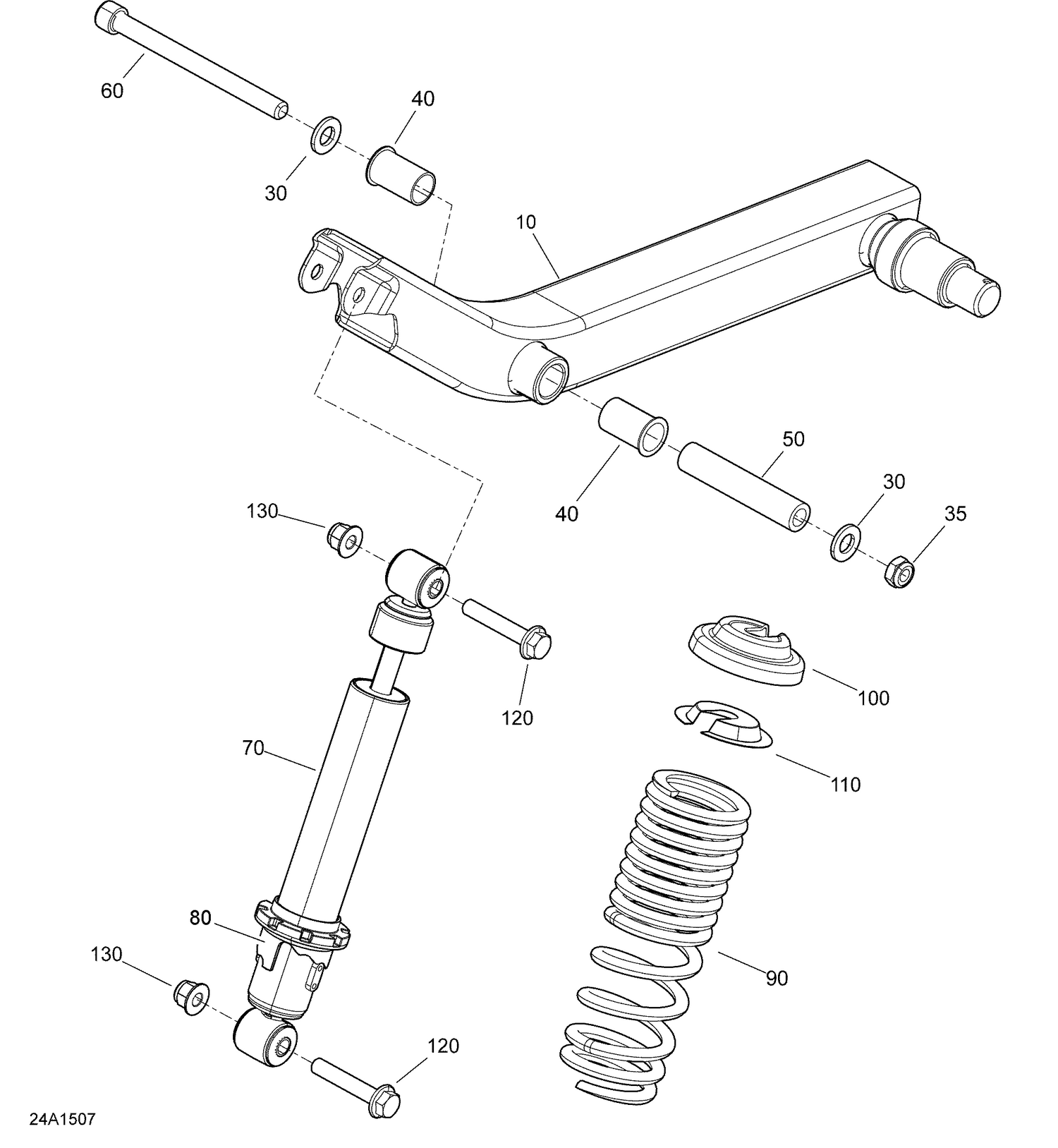

07- Suspension
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706201454 | LH Swing Arm |
| 10 | 706201501 | RH Swing Arm |
| 30 | 234021410 | Flat Washer 12 mm |
| 35 | 233422423 | Locking Nut M12 |
| 40 | 706201859 | Bushing |
| 50 | 705401029 | Spacer |
| 60 | 250001076 | Socket Head Screw M12 X 140 This part replaces 231024087. |
| 70 | 706201055 | Shock |
| 80 | 706002356 | Adjuster Ring This part replaces 706001033. |
| 90 | 706201056 | Full Moon Spring |
| 100 | 706200881 | Spring Stopper |
| 110 | 706200785 | Cap |
| 120 | 207605534 | Hex. Flange Screw |
