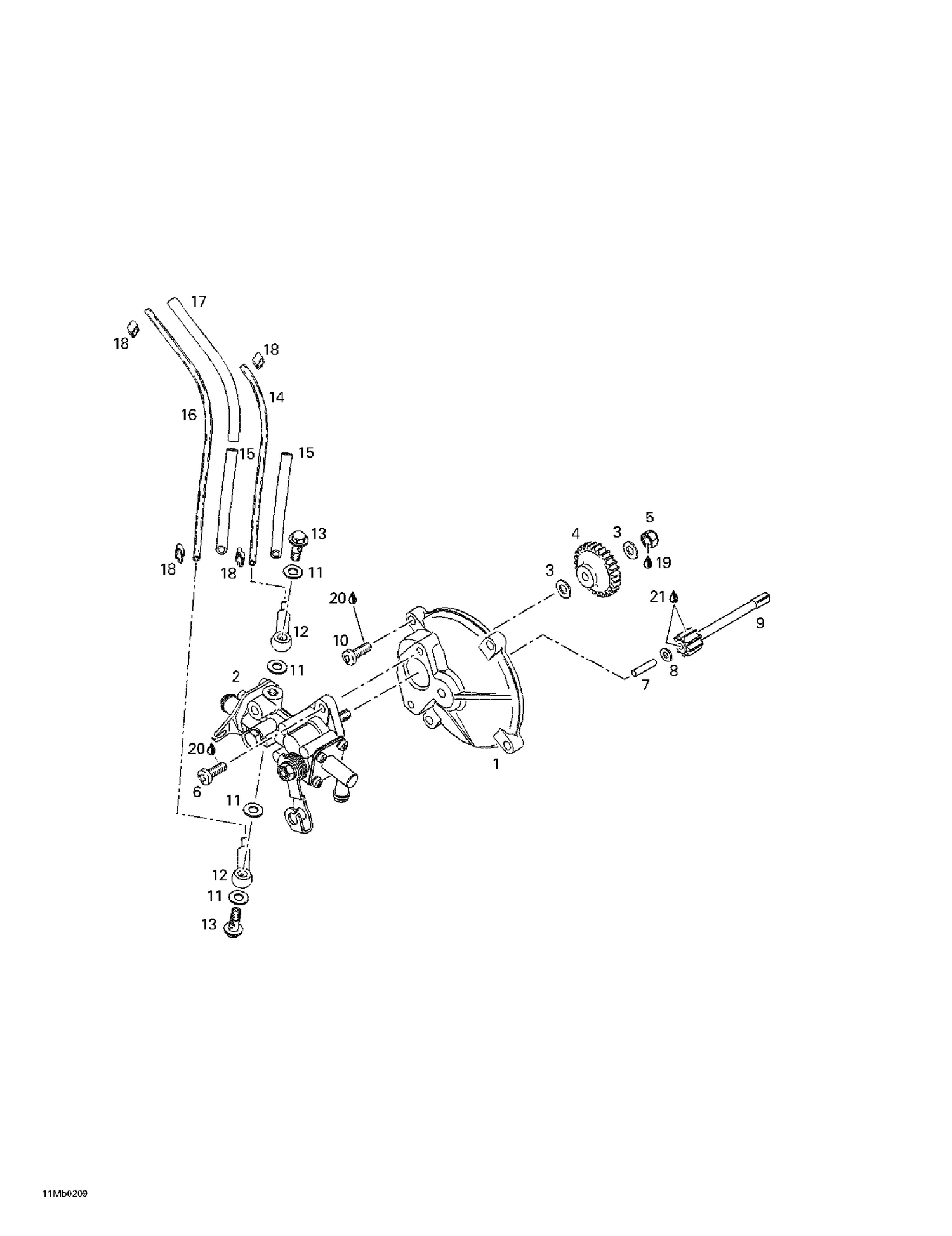

02- Oil Injection System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420910160 | PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Oil Pump Gear, 27 Teeth |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw This part replaces 420841970. |
| 7 | 420832260 | NEEDLE PIN - Call your local BRP dealership |
| 8 | 420244072 | Flat Washer 4 This part replaces 420244073. |
| 9 | 420935970 | Gear, 9 Teeth |
| 10 | 420841976 | SCREW - Call your local BRP dealership This part replaces 420841975. |
| 11 | 404146600 | Sealing Washer |
| 12 | 420956010 | Valve Ass’Y |
| 13 | 404146800 | Banjo Bolt M6 X 16 |
| 14 | 219704404 | Oil Hose 1500Mm Long |
| 15 | 420960750 | Isolation Line 90 mm |
| 16 | 219704404 | Oil Hose 1500Mm Long |
| 17 | 219704360 | Hose 6 Mm 15000Mm Long |
| 18 | 420853840 | Clamp |
| 19 | 293800060 | Loctite 243, 10 ml |
| 20 | 293800005 | Loctite 271, 10 ml |
