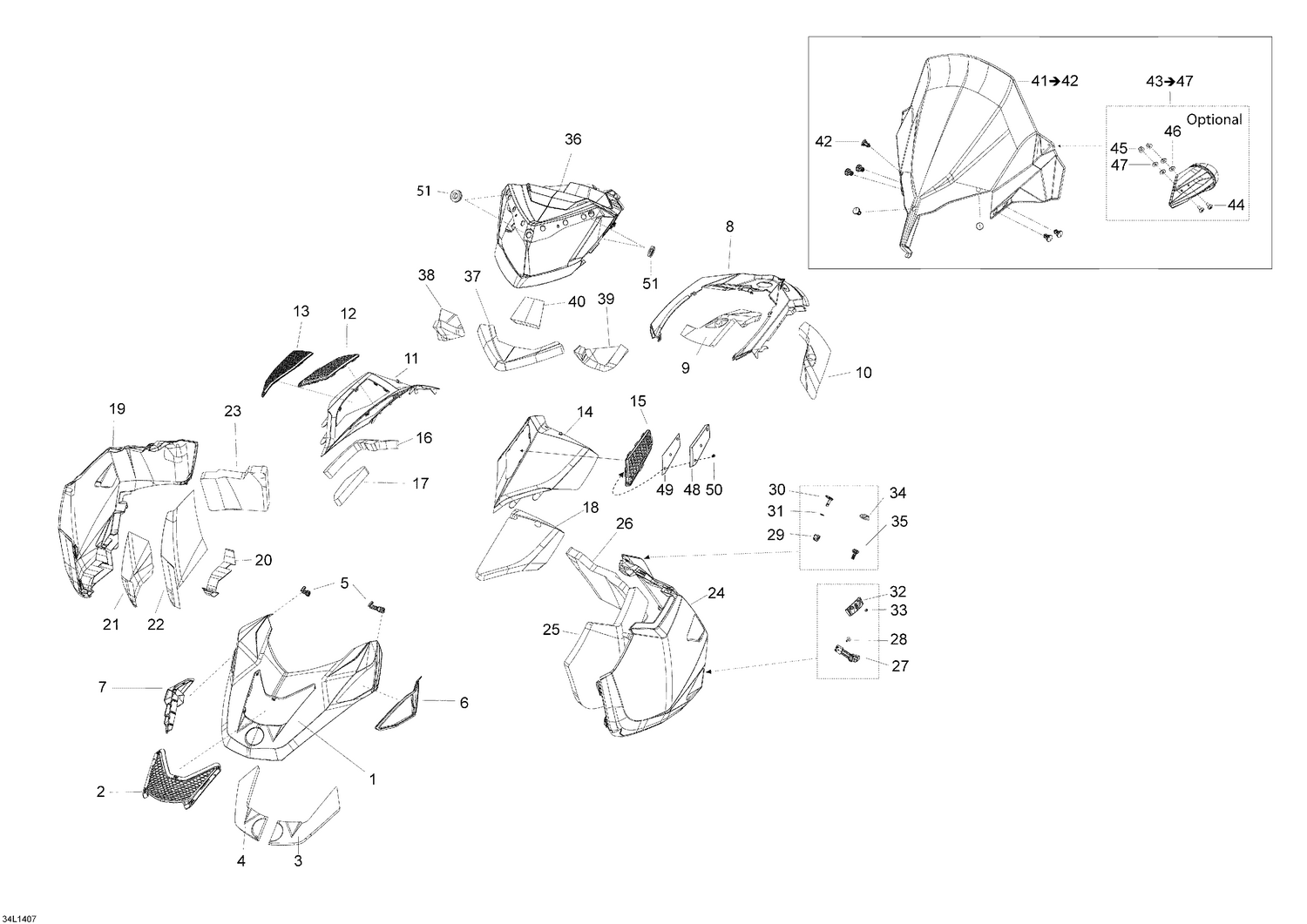

09- Hood
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517305440 | Hood, tactical grey |
| 2 | 517304843 | Hood grill front |
| 3 | 517304330 | Isolation L.H. |
| 4 | 517304214 | Isolation R.H. |
| 5 | 517304289 | Latch |
| 6 | 508000609 | Air filter |
| 7 | 517306980 | Scoop Grill This part replaces 517304155. |
| 8 | 517304820 | Console, black |
| 9 | 517304318 | Isolation right |
| 10 | 517304317 | INSULATOR - Call your local BRP dealership |
| 11 | 517305446 | R.H. Upper Side panel |
| 12 | 517304015 | R.H. Acces panel grill |
| 13 | 517304016 | R.H. Lower sidepanel grill |
| 14 | 517305450 | L.H. Upper Side panel |
| 15 | 517303893 | L.H. Acces panel grill |
| 16 | 517304311 | Isolation |
| 17 | 517304312 | Isolation |
| 18 | 517304313 | Isolation |
| 19 | 517306970 | Black, RH Side Panel This part replaces 517304866. |
| 20 | 517304215 | Heat protector alu foil |
| 21 | 517304216 | Heat protector alu foil |
| 22 | 517303890 | R.H. Isolation |
| 23 | 517304310 | R.H. Isolation rear |
| 24 | 517306973 | Black, LH Side Panel This part replaces 517304869. |
| 25 | 517303891 | L.H. Isolation |
| 26 | 517304309 | L.H. Isolation rear |
| 27 | 517304572 | Latch |
| 28 | 605636003 | Clinch Nut M6 Hexsert |
| 29 | 517304297 | Quarter-turn fastener |
| 30 | 517304296 | Quarter-turn handle |
| 31 | 517304538 | Locking plate |
| 32 | 517304497 | Side panel support |
| 33 | 36005 | Rivet |
| 34 | 860200239 | End piece |
| 35 | 517306057 | Latch-Panel This part replaces 517304573. |
| 36 | 517304272 | Indicator support |
| 37 | 517304314 | Isolation front |
| 38 | 517304315 | Isolation right |
| 39 | 517304316 | Isolation left |
| 40 | 517304319 | Isolation middle |
| 41 | 860201000 | Windshield Ass'y |
| 42 | 517304744 | Knob |
| 44 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 45 | 232361493 | Nut Hexagonal Domed M6 |
| 46 | 250200024 | Rubber Washer 5 mm |
| 47 | 20117 | Washer |
| 48 | 517305311 | Insulator |
| 49 | 502007312 | Grill plate |
| 50 | 414644300 | Black, Dart |
