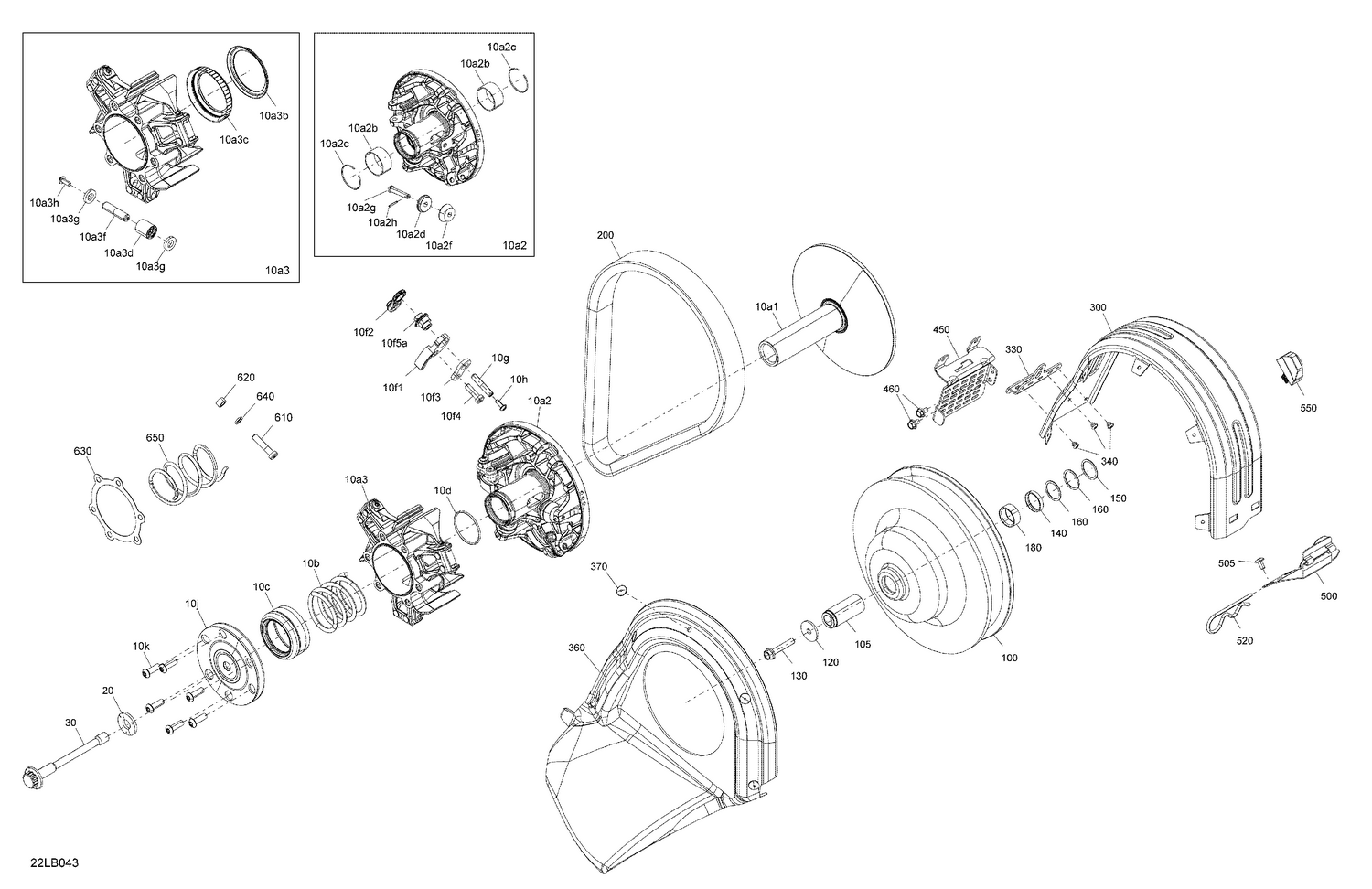

04- Drive - Pulley
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 417224579 | Sheave Drive Pulley Assembly |
| 10a2b | 293250389 | Bushing |
| 10a2c | 293370137 | Circlip |
| 10a2d | 417224909 | Interior Roller Pullet |
| 10a2f | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10a2g | 417224510 | Pin |
| 10a2h | 250400101 | Spring Pin 2.6MM X 20.5MM |
| 10a3b | 417224910 | Stopper Spring |
| 10a3c | 417224571 | Stopper Spring |
| 10a3d | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10a3f | 417224204 | Axle - 10mm |
| 10a3g | 417224868 | Thrust Washer This part replaces 417224009. |
| 10a3h | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10b | 417224234 | Clutch Spring |
| 10c | 417224003 | Seat Spring |
| 10d | 293370116 | Circlip |
| 10f1 | 417224274 | Ramp 974 |
| 10f2 | 417224086 | RH Lever |
| 10f3 | 417224114 | LH Lever |
| 10f4 | 417224221 | Pivot 33mm |
| 10f5a | 417224113 | Molded Cam |
| 10g | 417224694 | Pin Ramp |
| 10h | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10j | 417224682 | VIbration Damper |
| 10k | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 100 | 417127916 | Driven Pulley Ass'y This part replaces 417127826. |
| 105 | 417127300 | Bushing |
| 120 | 503183100 | Washer |
| 130 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 140 | 504149100 | Spacer |
| 150 | 417300252 | Spacer |
| 160 | 417300265 | Spacer |
| 180 | 417300399 | Spacer |
| 200 | 417300572 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300565 | CVT Air Duct |
| 370 | 293150103 | Pop Rivet 3/16 |
| 450 | 417300546 | Support |
| 460 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300568 | Belt Guard Bracket Support |
| 505 | 250000767 | Torx Truss Screw M6 X 12 |
| 520 | 114045200 | Hair Pin |
| 550 | 417300506 | Stopper |
| 610 | 417224222 | Pivot 38mm |
| 620 | 417224366 | Weight |
| 630 | 417224757 | Spacer |
| 640 | 417224363 | Weight |
