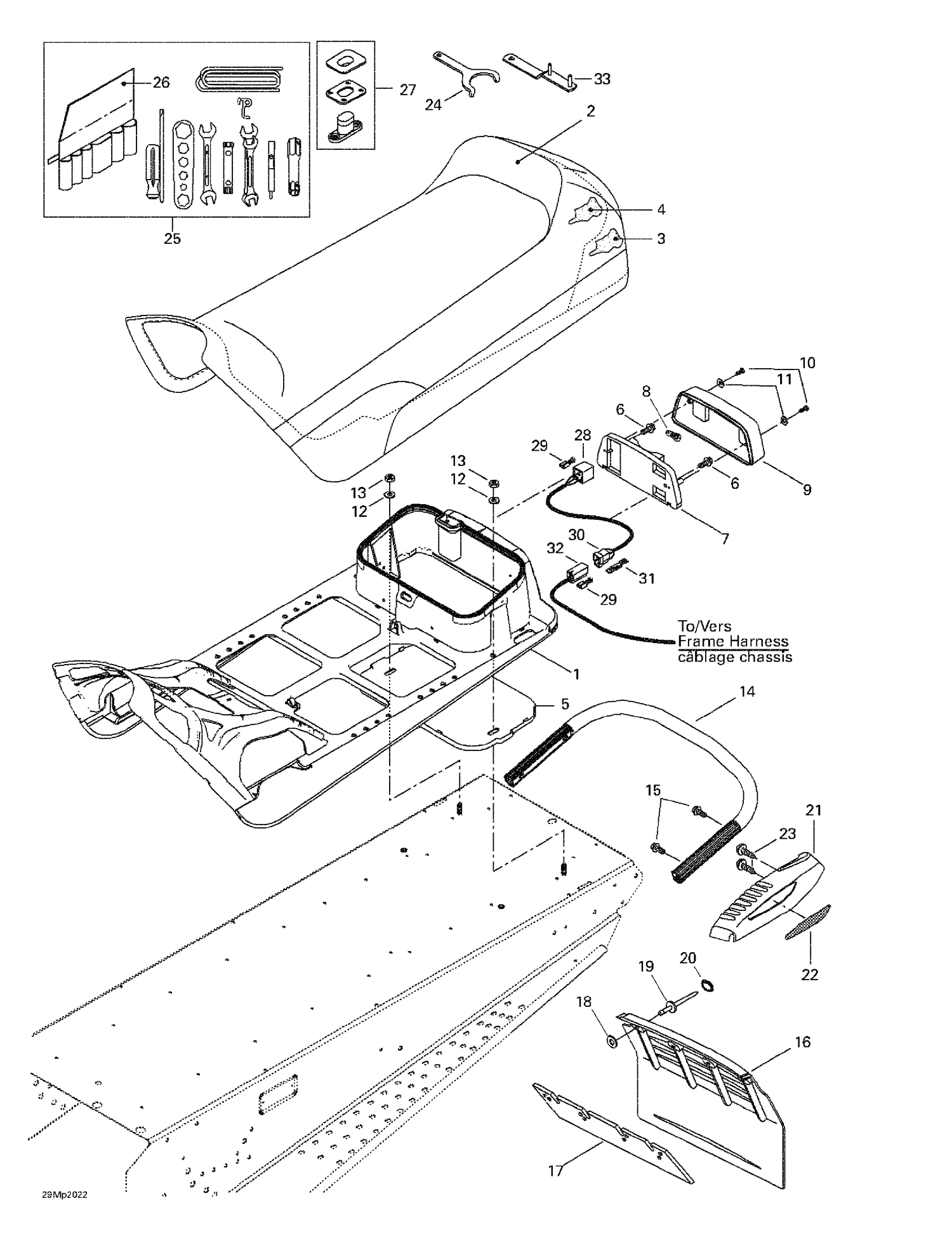

| Ref | Part Number | Description |
|---|
| 1 |
572107600 |
Seat Base |
| 2 |
510003750 |
Seat Cover |
| 3 |
510003608 |
Seat Foam |
| 4 |
510003500 |
Seat Foam |
| 5 |
572107601 |
UNDER CHEST - Call your local BRP dealership |
| 6 |
732603006 |
Hex. Screw #10 X 1" |
| 7 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 8 |
520000758 |
Bulb This part replaces 410504000. |
| 9 |
414513700 |
Lens |
| 10 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
234082410 |
Flat Washer 8 mm |
| 13 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 14 |
518318200 |
REAR BUMPER - Call your local BRP dealership |
| 15 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 16 |
572092100 |
SNOW GUARD - Call your local BRP dealership |
| 17 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 18 |
517225900 |
Flat Washer |
| 19 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 20 |
415073300 |
Cap |
| 21 |
518321582 |
RH Moulding |
| 22 |
516000237 |
RH Reflector, Red |
| 23 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 24 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 26 |
520000047 |
Tool Bag |
| 27 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 28 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 29 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 31 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 32 |
409204300 |
Female Housing |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 518321581 |
Enjoliveur |
GA 518321581 |
| 518321581 |
LH |
Moulding 518321581 |
