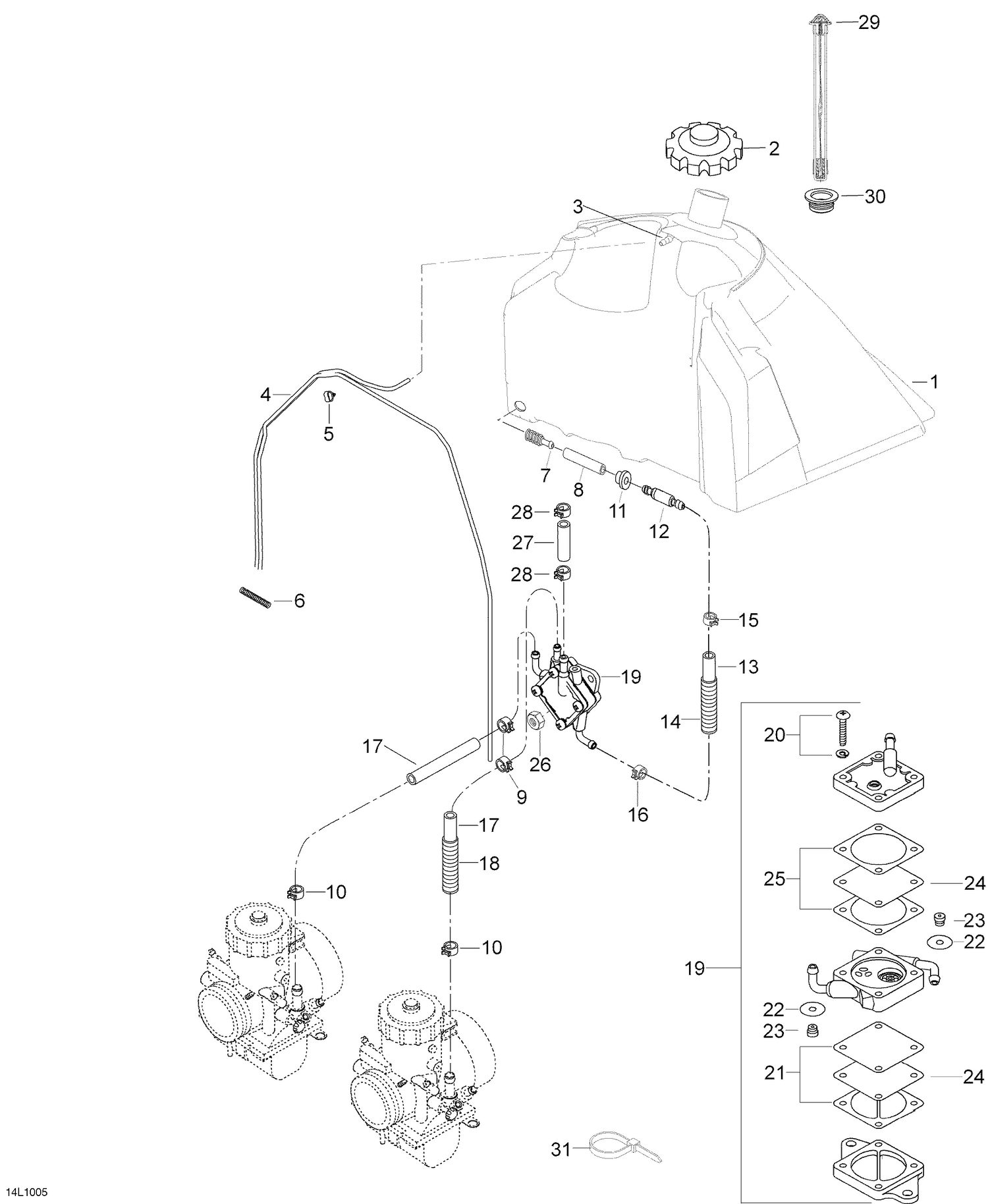

| Ref | Part Number | Description |
|---|
| 1 |
605154804 |
FUEL TANK - Call your local BRP dealership |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 4 |
39035 |
Hose |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 6 |
25003 |
Spring |
| 7 |
414872100 |
Fuel Filter |
| 8 |
219704391 |
POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 9 |
605627005 |
CLAMP MINI ABA 13 - Call your local BRP dealership |
| 10 |
414655700 |
Spring Clamp |
| 11 |
707800347 |
Grommet This part replaces 570273900. |
| 12 |
414872700 |
Male Connector |
| 13 |
605355604 |
Hose |
| 14 |
27127 |
Tubing |
| 15 |
605627009 |
CLAMP - Call your local BRP dealership |
| 16 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 17 |
605355647 |
Hose 1/4, 350 mm |
| 18 |
409901800 |
Tubing 13 mm |
| 20 |
Not |
Available As Spare Part - Screw |
| 21 |
404902300 |
GASKET - Call your local BRP dealership |
| 22 |
404902100 |
GROMMET - Call your local BRP dealership |
| 23 |
275500042 |
VALVE - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Diaphragm |
| 25 |
404902400 |
GASKET - Call your local BRP dealership |
| 26 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 27 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 28 |
414420700 |
Universal Spring Clamp |
| 29 |
605351982 |
FUEL GAUGE - Call your local BRP dealership |
| 30 |
293720058 |
Grommet |
