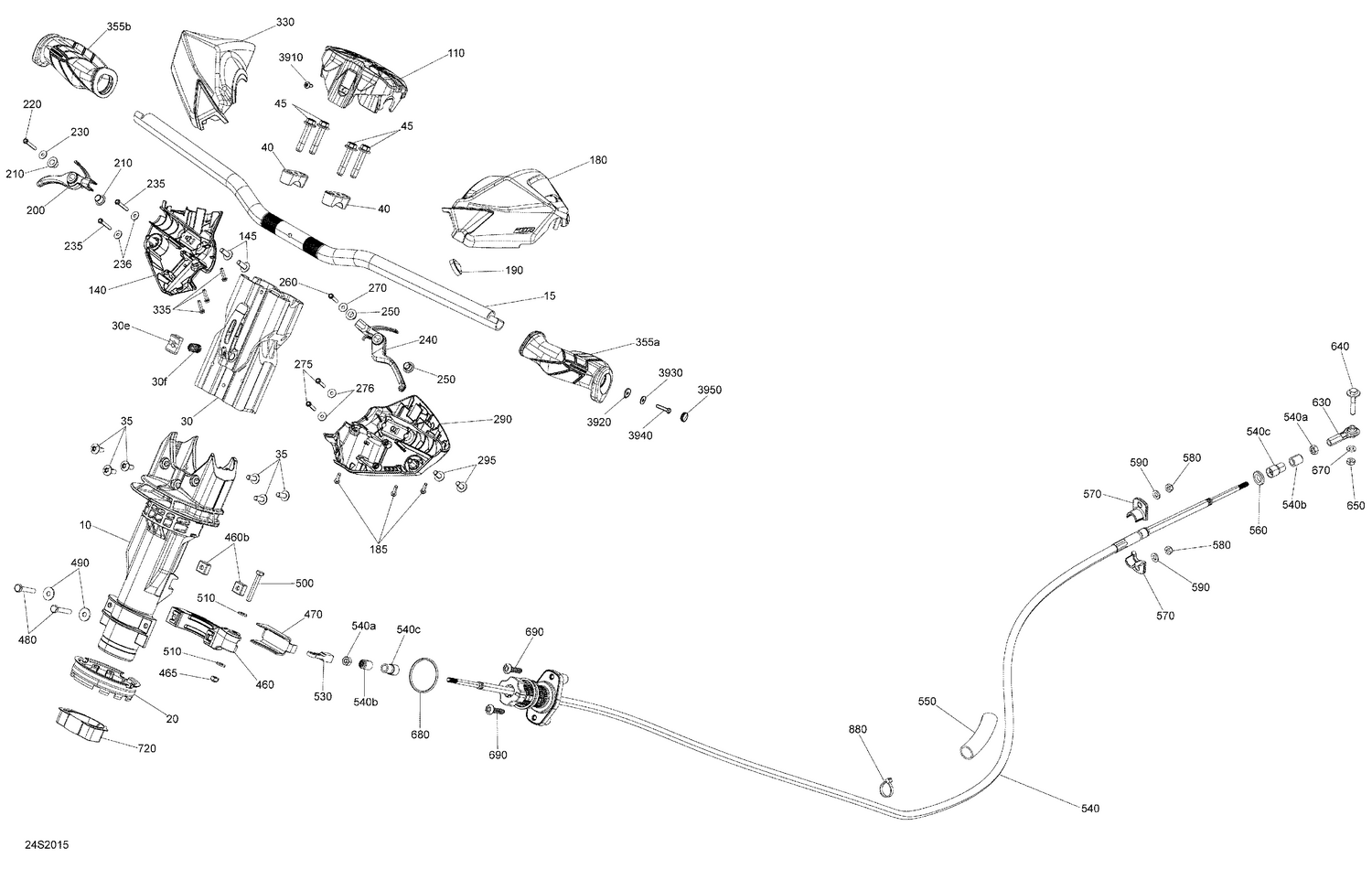

| Ref | Part Number | Description |
|---|
| 10 |
277001998 |
Steering Column |
| 15 |
277002424 |
Liquid Titan, Handlebar This part replaces 277002016. |
| 20 |
277001874 |
Wear Ring |
| 30e |
506153045 |
Compression Bloc |
| 30f |
506152820 |
Spring |
| 35 |
250000922 |
Torx Truss Screw M6 X 16 |
| 40 |
506152751 |
Steering Support |
| 45 |
250000834 |
Hex. Screw Flange DIN.6921 S.Grip |
| 110 |
277002005 |
Deep Black, Steering Pad |
| 140 |
277002007 |
RH Lower Housing |
| 145 |
250000922 |
Torx Truss Screw M6 X 16 |
| 180 |
277002237 |
LH Cover This part replaces 277002003. |
| 185 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 190 |
277001887 |
Red, Knob Switch |
| 200 |
277002138 |
Hand Lever Accelerator |
| 210 |
293900091 |
Bushing |
| 220 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 230 |
234042600 |
Flat Washer 4 mm, Stainless |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 250 |
293900091 |
Bushing |
| 260 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 270 |
234042600 |
Flat Washer 4 mm, Stainless |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 290 |
277002006 |
Deep Black, LH Lower Housing |
| 295 |
250000922 |
Torx Truss Screw M6 X 16 |
| 330 |
277002004 |
RH Cover |
| 335 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 460b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 465 |
232561200 |
Brass Elastic Stop Nut M6 |
| 470 |
277001654 |
Spacer |
| 480 |
207163560 |
Hex. Screw M6 X 35 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
207064060 |
Hex. Screw M6 X 40 |
| 510 |
234061600 |
Stainless Flat Washer M6 |
| 530 |
277001180 |
Ball Joint |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 540c |
277001583 |
End Piece |
| 550 |
276000446 |
Sheat Corrugated 19 MM ID |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
232561200 |
Brass Elastic Stop Nut M6 |
| 590 |
234061600 |
Stainless Flat Washer M6 |
| 630 |
277000775 |
Ball Joint |
| 640 |
250000970 |
Hex Sems Screw M6X35 |
| 650 |
232561200 |
Brass Elastic Stop Nut M6 |
| 670 |
234061600 |
Stainless Flat Washer M6 |
| 680 |
293300176 |
O-Ring |
| 690 |
250001007 |
Screw Torx M6.81 X 30 |
| 720 |
277002318 |
Wear Ring This part replaces 277001741. |
| 880 |
414115200 |
Tie-Rap 180 mm |
| 3910 |
250000922 |
Torx Truss Screw M6 X 16 |
| 3920 |
277001863 |
Insert Grip Handle |
| 3930 |
234062600 |
Flat Washer M6, Stainless |
| 3940 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
