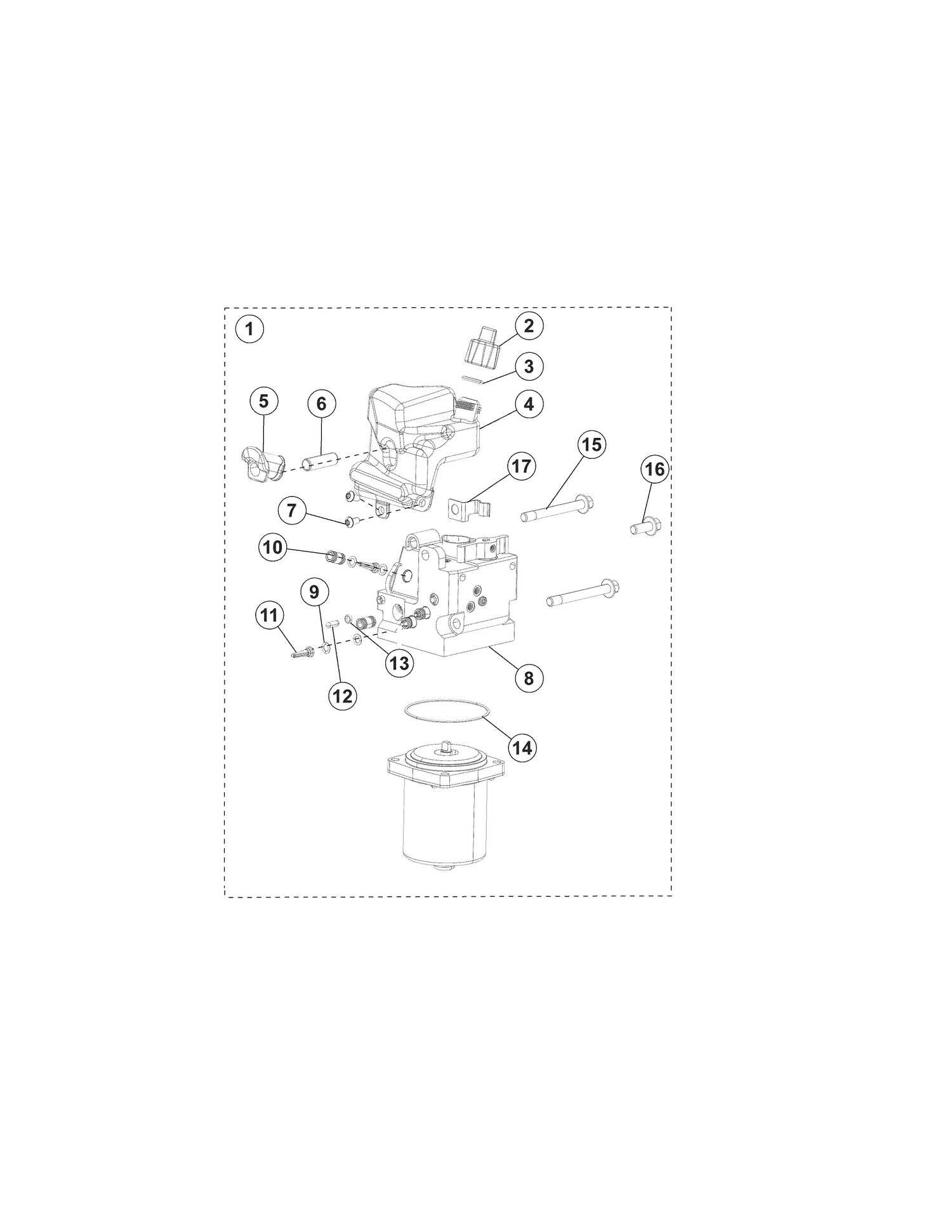

08-02 POWER TILLER MANIFOLD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5011825 | Power Tiller MANIFOLD ASSEMBLY |
| 2 | 362965 | Reservoir Cap |
| 3 | 358770 | O-ring Cap |
| 4 | 362646 | Reservoir |
| 5 | 363205 | Mount |
| 6 | 362910 | Mount |
| 7 | 362369 | Screw |
| 8 | ( | N.S.S.) Not Serviced Separately ( N.S.S.) |
| 9 | 359990 | O-Ring Manifold |
| 10 | 359188 | Coupler Manifold |
| 11 | 356937 | Filter Manifold |
| 12 | 353931 | Pin Manifold |
| 13 | 321357 | O-Ring Pin Manifold |
| 14 | 321163 | O-Ring Motor to Pump |
| 15 | 360972 | Bolt Incl in 1 |
| 16 | 354818 | Bolt Incl in 1 |
