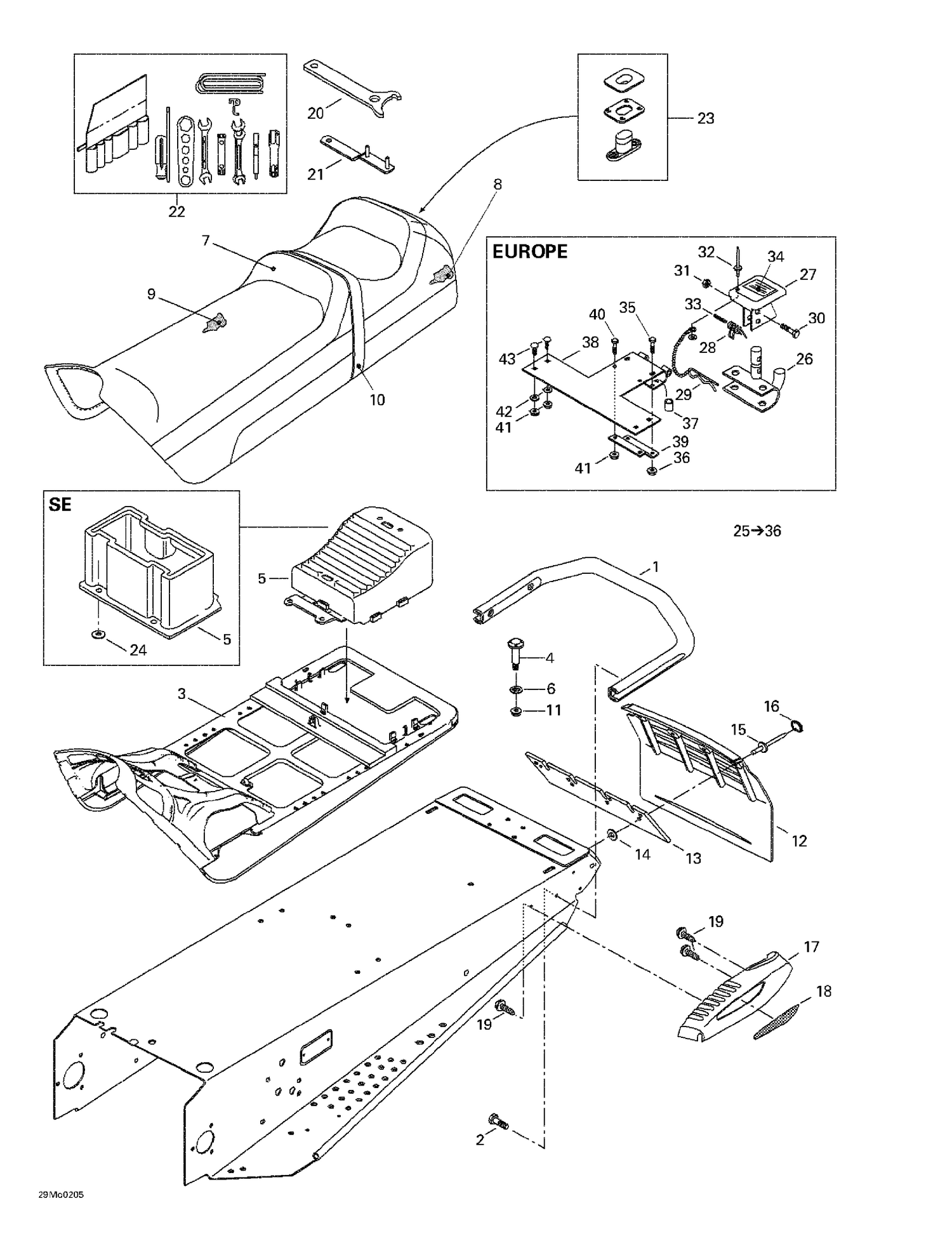

| Ref | Part Number | Description |
|---|
| 1 |
517272510 |
Rear Bumper |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 6 |
732610072 |
Push Nut |
| 8 |
510003741 |
Seat Foam, Side |
| 9 |
510003752 |
Seat Foam, Top |
| 10 |
510003753 |
Seat Belt |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
520000229 |
SNOW GUARD - Call your local BRP dealership |
| 13 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 14 |
517225900 |
Flat Washer |
| 15 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 16 |
415073300 |
Cap |
| 17 |
861780100 |
RH MOULDING KIT - Call your local BRP dealership |
| 18 |
516000237 |
RH Reflector, Red |
| 19 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 20 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 21 |
520000126 |
Adjustment Wrench |
| 22 |
529035596 |
Tool Kit |
| 23 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000241 |
Réflecteur |
DR, Jaune, Europe 516000241 |
| 516000241 |
RH |
Reflector, Yellow, Europe 516000241 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 861780200 |
LH |
Moulding Kit 861780200 |
