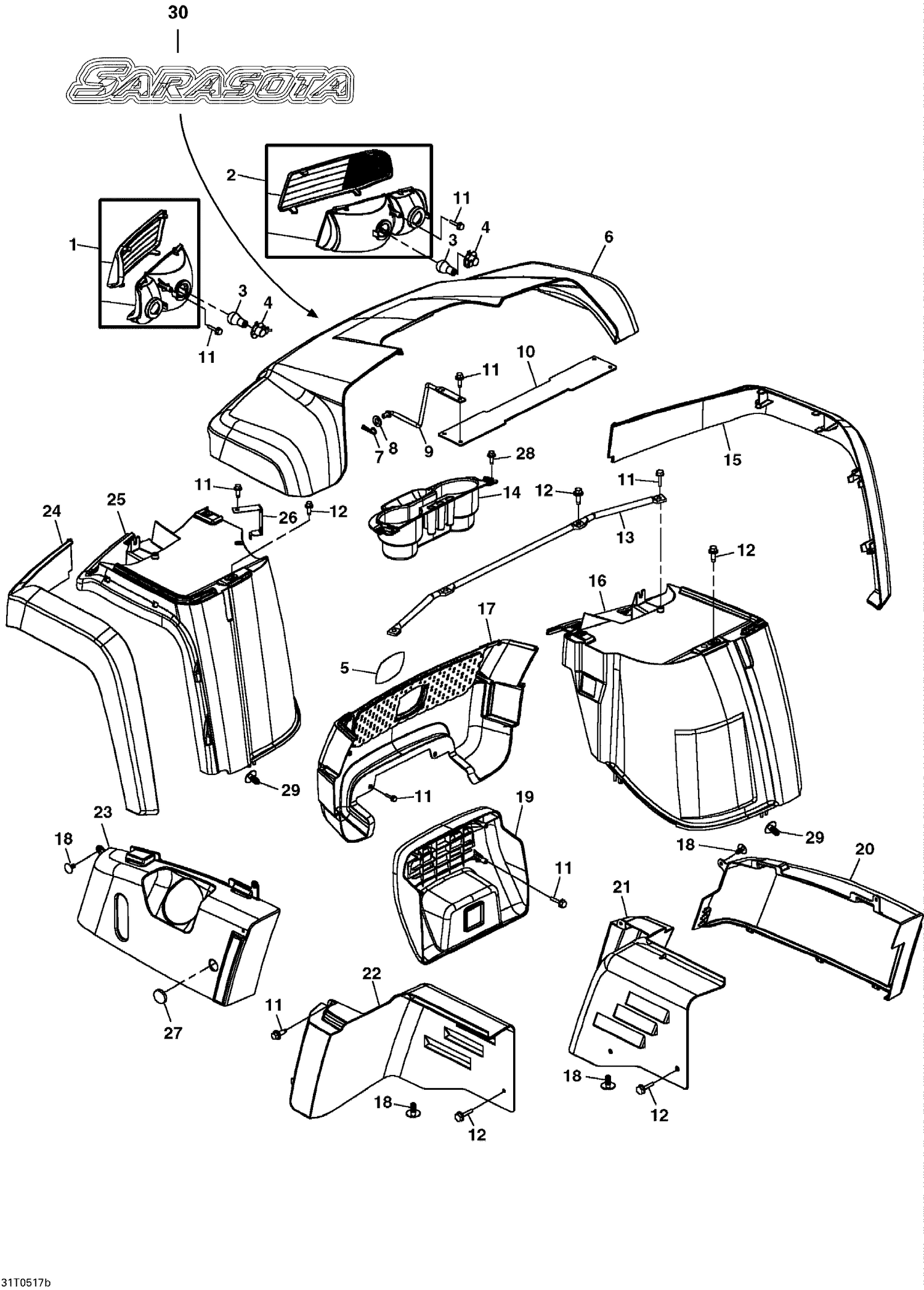

09- Hood and Front Fenders
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 3 | DAD2062R | Headlight Bulb |
| 4 | DAM121594 | Socket |
| 5 | 516008738 | BRP Logo 48mm This part replaces DM151059. |
| 6 | DM151004 | Hood |
| 7 | DR50647 | Spring Locking Pin |
| 8 | D24M7055 | Washer |
| 9 | DVG12185 | Hinge |
| 10 | DVG12152 | Bracket |
| 11 | DM71217 | Screw |
| 12 | D37M7090 | Hex. Flange Screw M6X16 |
| 13 | DVG11526 | Support |
| 14 | DVG10434 | Cup Holder |
| 15 | DVG10326 | RH Front Fender Extension |
| 16 | DAM133954 | RH Fender |
| 17 | DM151003 | Grille |
| 18 | DM150273 | Plug |
| 19 | DVG10727 | Bumper |
| 20 | DM151006 | RH Panel |
| 21 | DVG10730 | RH Fender |
| 22 | DVG10729 | LH Fender |
| 23 | DM151005 | LH Panel |
| 24 | DVG10325 | LH Front Fender Extension |
| 25 | DM151009 | LH Fender |
| 26 | DVG11405 | Retainer Bracket |
| 27 | DM151056 | Plug |
| 28 | DM150264 | Self Tapping Screw M6 X 12 |
| 29 | DM71234 | Plug |
