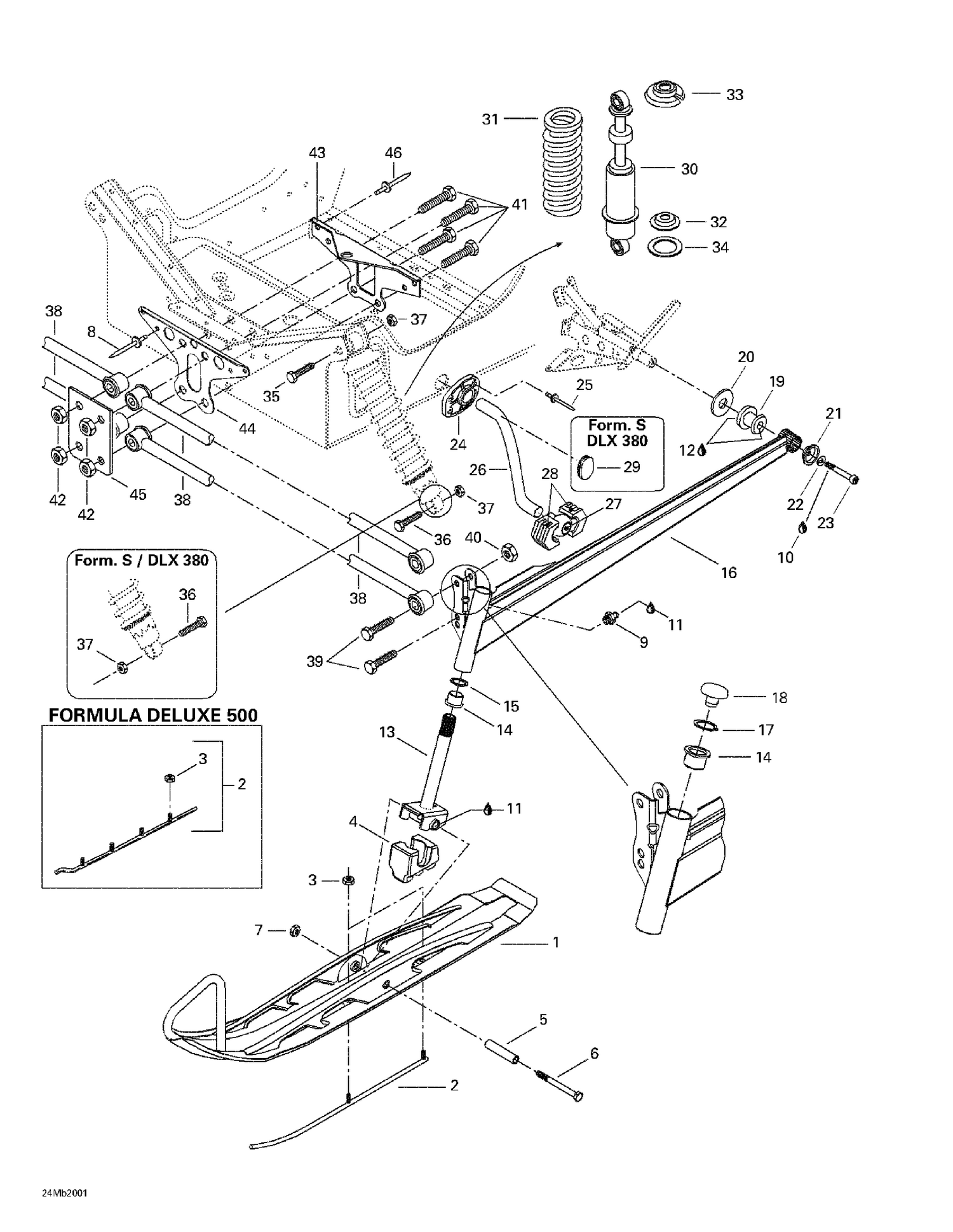

07- Front Suspension And Ski
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070325 | Ski |
| 3 | 232581414 | Hex. Elastic Stop Nut M8 |
| 4 | 505070324 | Ski Stopper |
| 5 | 505070323 | Spacer |
| 6 | 250000001 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 7 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 8 | 390404900 | Rivet pop 1/4" |
| 9 | 408200700 | Grease Fitting |
| 10 | 293800060 | Loctite 243, 10 ml |
| 11 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 12 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 13 | 505070321 | Ski Leg |
| 14 | 505070003 | Cushion |
| 15 | 505070004 | WASHER - Call your local BRP dealership |
| 17 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 18 | 572091300 | Cap |
| 19 | 570062200 | DAMPER - Call your local BRP dealership |
| 20 | 503146700 | WASHER - Call your local BRP dealership |
| 21 | 705007171 | Cup This part replaces 506115800. |
| 22 | 234181401 | Lock Washer 8 mm |
| 23 | 205082544 | Socket Head Screw M8 X 25 |
| 33 | 706200881 | Spring Stopper This part replaces 503140600. |
| 35 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 36 | 207005544 | Hex. Screw M10 X 55 |
| 37 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 39 | 207025044 | Hex. Screw M12 x 50 |
| 40 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 41 | 230020044 | Hex. Screw M12 x 100 |
| 42 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 43 | 517254900 | Rear Link Plate |
| 44 | 517254800 | Front Link Plate |
| 45 | 518306700 | Support |
