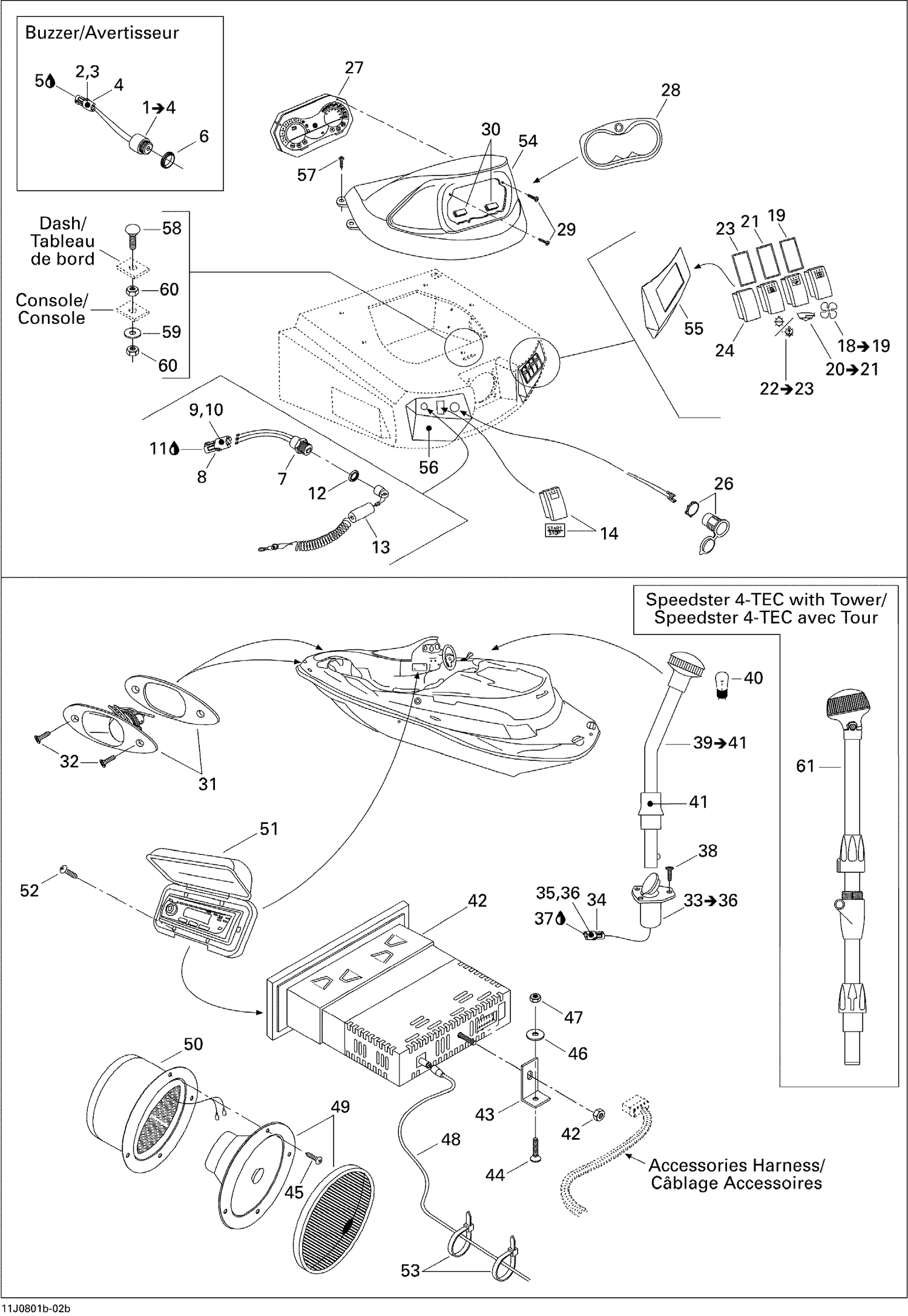

| Ref | Part Number | Description |
|---|
| 2 |
278000222 |
Male Terminal |
| 3 |
278000218 |
Wire Seal |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
278000707 |
Buzzer Nut |
| 7 |
278002773 |
Safety Switch This part replaces 278001734. |
| 8 |
278000273 |
Male Housing, 3 Circuits |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000223 |
Female Terminal |
| 11 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 12 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 13 |
204471206 |
Safety Lanyard |
| 14 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 19 |
204470132 |
Gasket |
| 21 |
204470132 |
Gasket |
| 23 |
204470132 |
Gasket |
| 24 |
204470596 |
SWITCH PLUG - Call your local BRP dealership |
| 26 |
710001248 |
DC Outlet This part replaces 204470907. |
| 27 |
204471378 |
Cluster Gauge This part replaces 204471236. |
| 28 |
278002144 |
Gauge Bezel, Chrome |
| 29 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 30 |
293830113 |
TRIM - Call your local BRP dealership |
| 31 |
204470908 |
LATERAL LIGHT KIT - Call your local BRP dealership |
| 32 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 34 |
278000217 |
Female Housing, 2 Circuits |
| 35 |
278000222 |
Male Terminal |
| 36 |
278000218 |
Wire Seal |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 40 |
204470053 |
Bulb |
| 41 |
204470350 |
COLLAR - Call your local BRP dealership |
| 42 |
Not |
Available As Spare Part - Stereo CD Player/Radio |
| 43 |
204470981 |
RADIO SUPPORT - Call your local BRP dealership |
| 44 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 45 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 46 |
234062600 |
Flat Washer M6, Stainless |
| 47 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 48 |
Not |
Available As Spare Part - Antenna |
| 49 |
Not |
Available As Spare Part - Speaker, Silver |
| 50 |
Not |
Available As Spare Part - Speaker Cover Ass'y |
| 51 |
204470894 |
RADIO CD PLAYER COVER - Call your local BRP dealership |
| 52 |
209632560 |
Pan Head Tapping Screw M3.5x25 |
| 53 |
293750001 |
Tie Wrap 94 mm |
| 54 |
204471300 |
DASH - Call your local BRP dealership This part replaces 204471125. |
| 55 |
204471138 |
RH Switch Panel |
| 56 |
204471250 |
LH SWITCH PANEL - Call your local BRP dealership |
| 57 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 58 |
204000130 |
Elevator Bolt |
| 59 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 60 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
