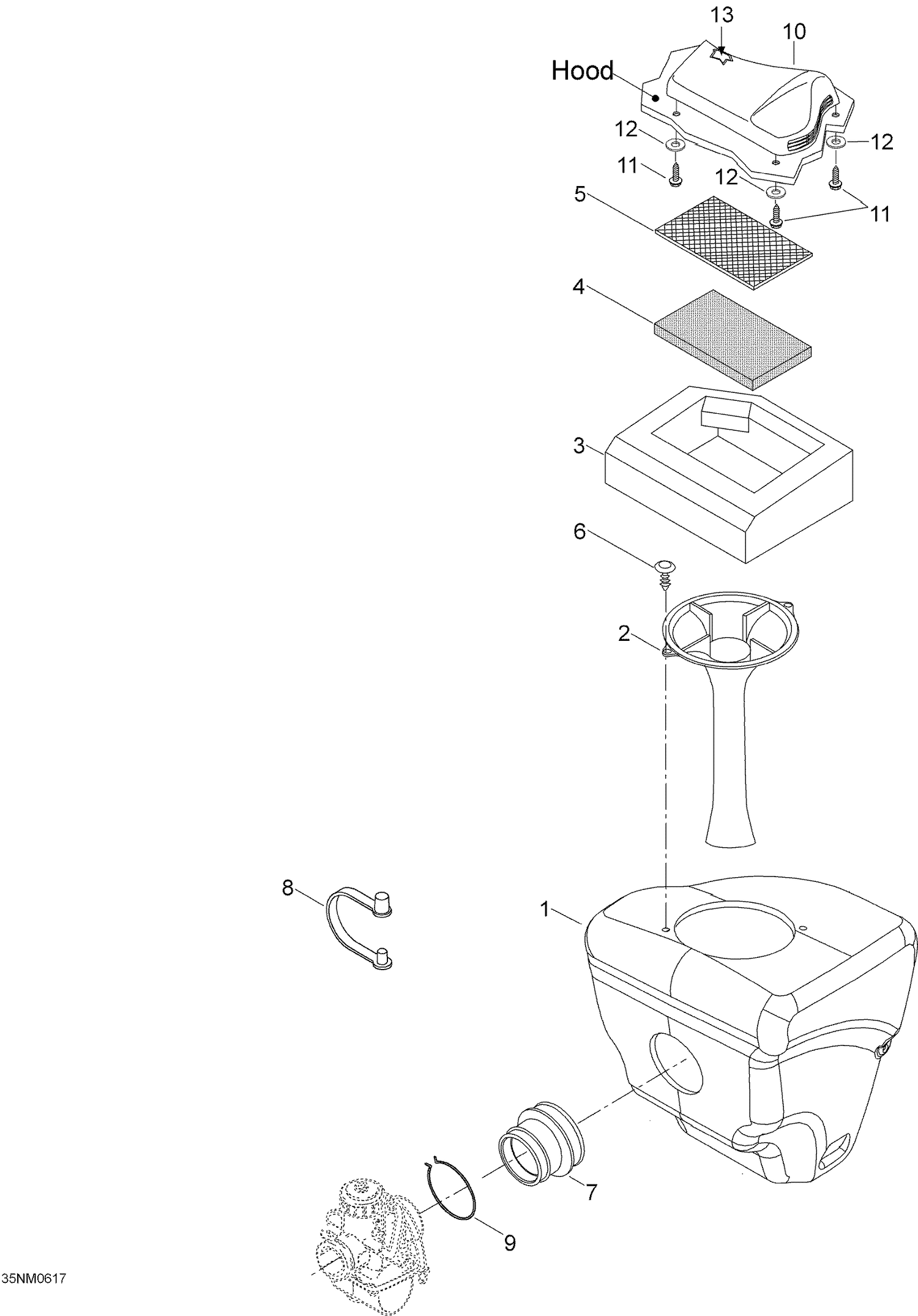

| Ref | Part Number | Description |
|---|
| 1 |
M5145397 |
Air Intake |
| 2 |
Not |
Available As Spare Part - Connector Engine |
| 3 |
5346536 |
Intake Foam (Skandic Lt -01) This part replaces M5346536. |
| 4 |
M5345398 |
FILTER-AIR - Call your local BRP dealership |
| 5 |
M5346220 |
Intake Grill |
| 6 |
414644300 |
Black, Dart |
| 7 |
M5245961 |
ADAP-AIR - Call your local BRP dealership |
| 8 |
414379300 |
CABLE CLIP - Call your local BRP dealership |
| 9 |
M5346755 |
Collar |
| 10 |
572077900 |
INTAKE COVER - Call your local BRP dealership |
| 11 |
M40901 |
SCREW-HEX. - Call your local BRP dealership |
| 12 |
20008 |
Washer 5,3 mm This part replaces M20008. |
