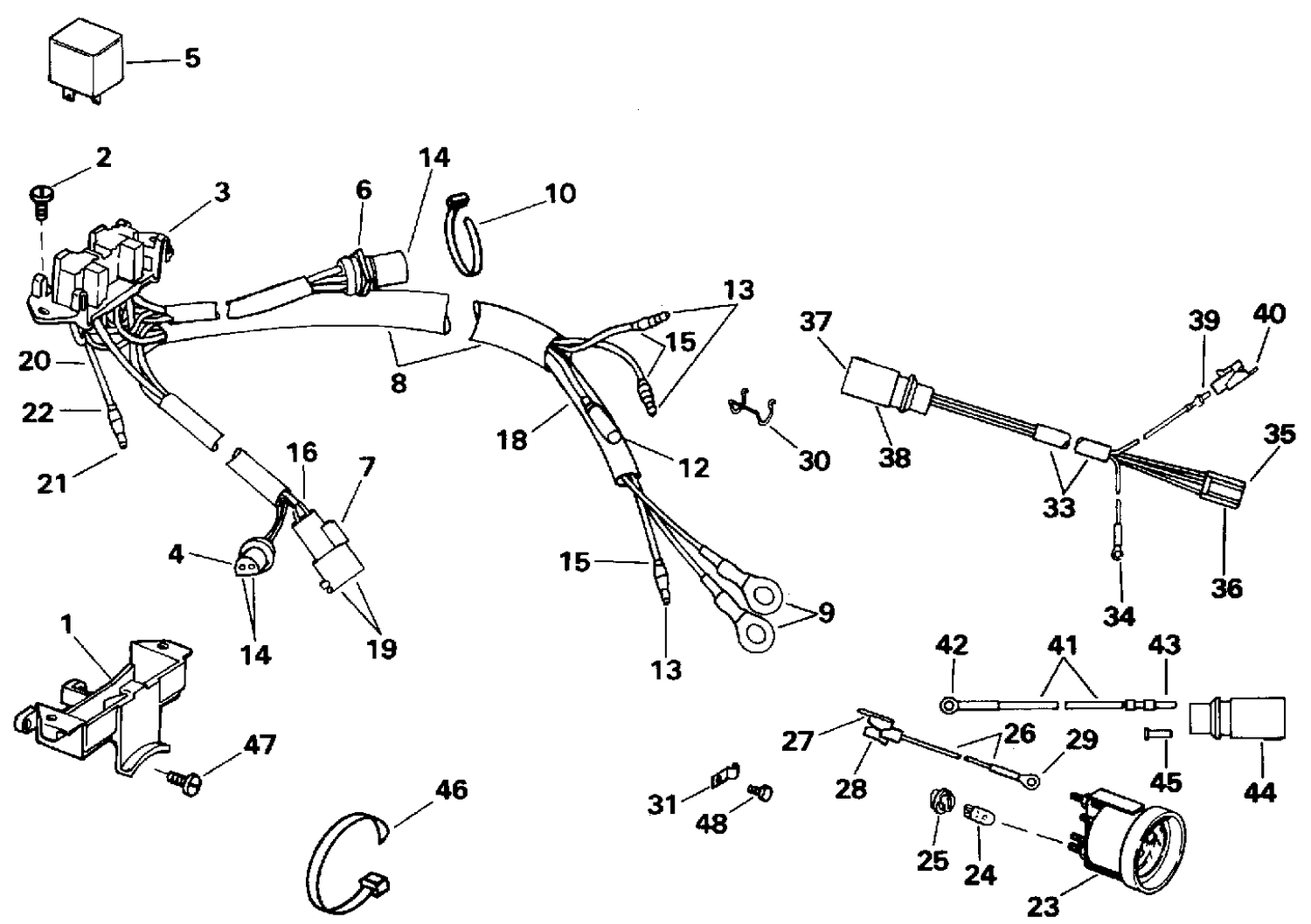

POWER TRIM/TILT ELECTRICAL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0335572 | BRACKET, Trim & tilt relays |
| 8 | 0584735 | CABLE ASSY. This part replaces 0584055. |
| 20 | 0584377 | LEAD ASSY., Relay to trim limiting switch |
| 23 | 0583653 | TRIM GAUGE |
| 26 | 0583255 | LEAD ASSEMBLY |
| 30 | 0512743 | DISPOSITIF DE RETENUE |
| 31 | 0317000 | COLLIER, câble |
| 39 | 0512904 | BULLET TERMINAL |
| 41 | 0582093 | LEAD ASSY |
| 0584056 | 0584736 | RELAY & CABLE ASSY. This part replaces 0584056. |
