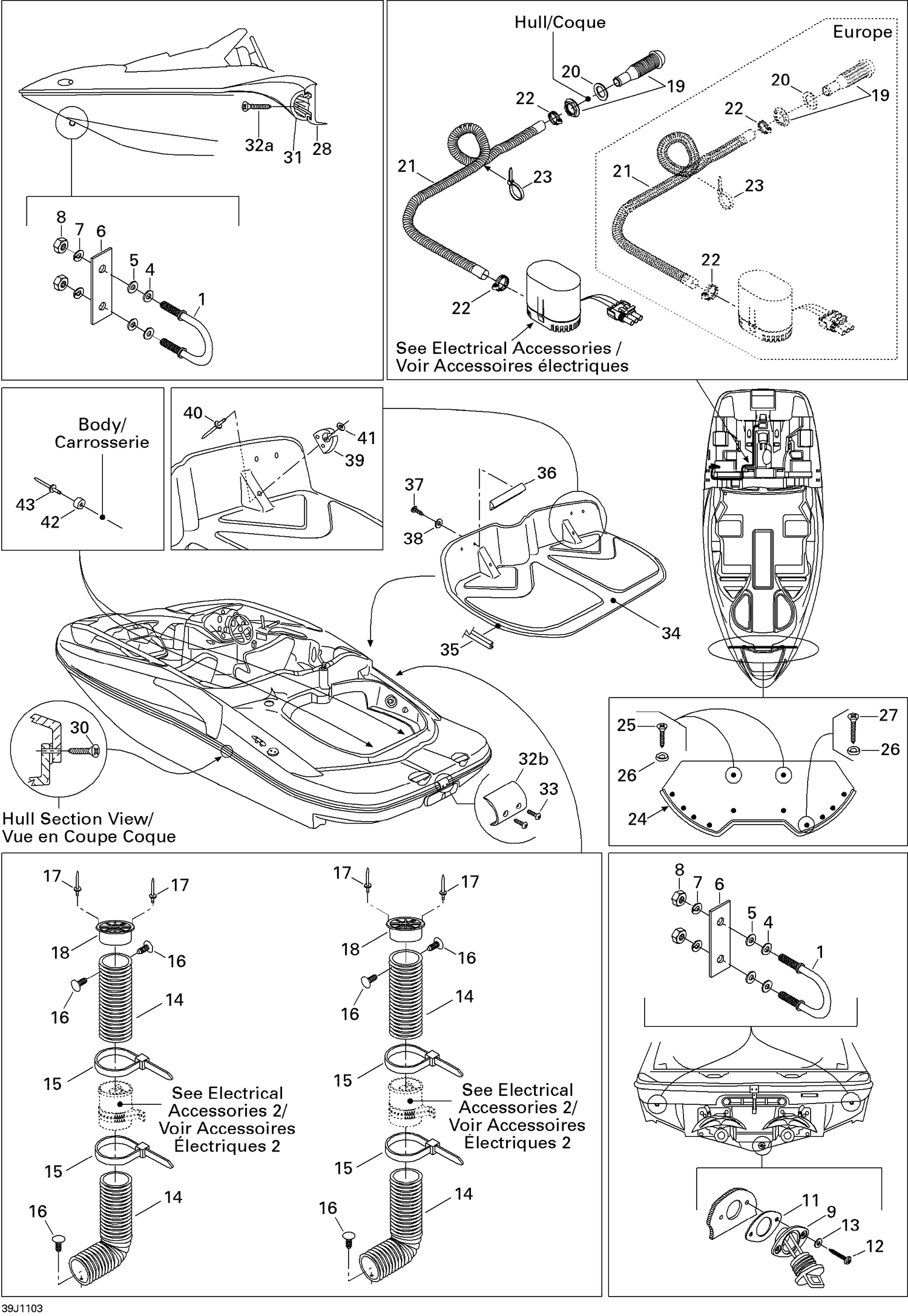

| Ref | Part Number | Description |
|---|
| 1 |
292000933 |
U-Clamp |
| 4 |
293050001 |
Flat Washer M8.5 x 18 |
| 5 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 6 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 7 |
234181601 |
Lock Washer 8 mm, Stainless |
| 8 |
232081600 |
Hex. Nut M8 |
| 9 |
292000187 |
Drain Plug |
| 11 |
293250030 |
GASKET - Call your local BRP dealership |
| 12 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 13 |
234041600 |
Flat Washer 4 mm, Stainless |
| 14 |
219704358 |
Was 204050122 Vent Hose 4" |
| 15 |
293750047 |
Tie Rap, 533 mm |
| 16 |
293730006 |
Black, Dart |
| 17 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 18 |
204050803 |
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533. |
| 19 |
293710162 |
Fitting This part replaces 293710015. |
| 20 |
293250254 |
GASKET - Call your local BRP dealership |
| 21 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 22 |
293650016 |
Tridon Clamp |
| 23 |
414115200 |
Tie-Rap 180 mm |
| 24 |
204130079 |
TRIM LOCK, METER - Call your local BRP dealership |
| 25 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 26 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 27 |
250000087 |
PHILLIPS TAPPING SCREW M4.8 X 51 - Call your local BRP dealership |
| 28 |
262000198 |
BUMPER, BLACK - Call your local BRP dealership This part replaces 204050784. |
| 30 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 31 |
204061394 |
RUBRAIL INSERT 50FT - Call your local BRP dealership This part replaces 204050785. |
| 32a |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 32b |
204050780 |
BUMPER COVER, BLACK - Call your local BRP dealership |
| 33 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 34 |
269700130 |
ENGINE ACCESS COVER - Call your local BRP dealership |
| 35 |
219704368 |
Seal Tray 1000Mm Long |
| 36 |
204050159 |
HANDLE, BLACK - Call your local BRP dealership |
| 37 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 38 |
234042600 |
Flat Washer 4 mm, Stainless |
| 39 |
291000642 |
Pole Support |
| 40 |
293150005 |
Pop Rivet 3/16" |
| 41 |
234051600 |
Flat Washer M5, Stainless |
| 42 |
293830043 |
Rubber Stopper |
