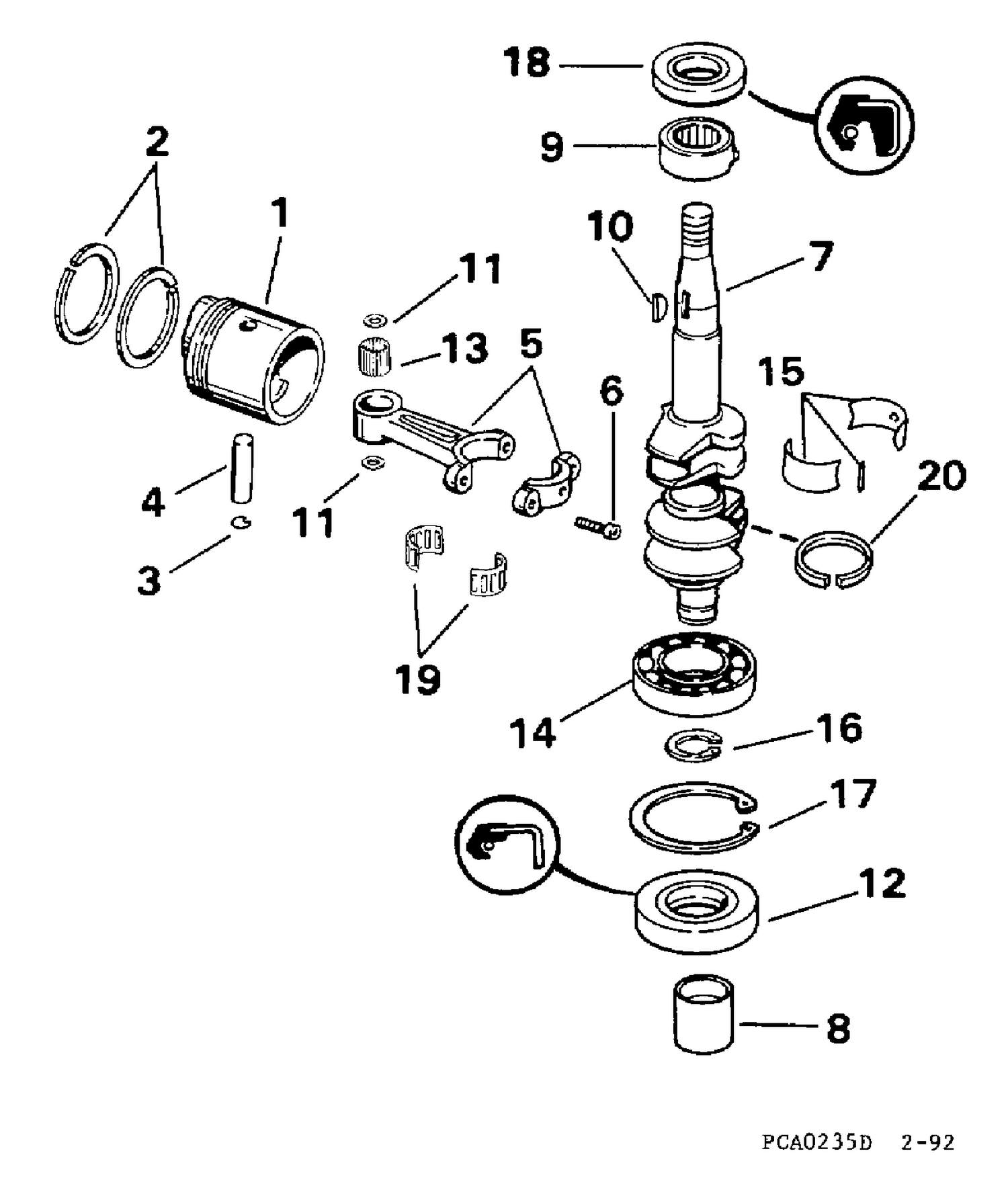

CRANKSHAFT & PISTON
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435584 | PISTON ASSY., Std. |
| 1 | 0435585 | PISTON ASSY., 0.030 in. O.S. |
| 4 | 0323034 | RETAINING RING |
| 5 | 0433722 | CONNECTING ROD ASSY. |
| 7 | 0434743 | CRANKSHAFT ASSY. |
| 9 | 0397586 | BEARING ASSY., Needle |
| 10 | 0120395 | KEY |
| 11 | 0335783 | THRUST WASHER, Rod to pinston |
| 12 | 0329086 | SEAL, Crank, lower |
| 13 | 0433721 | NEEDLE, Bearing |
| 14 | 0391849 | ROULEMENT À BILLES |
| 15 | 0388993 | LINER ASSY., Center bearing |
| 16 | 0326904 | NEEDLE BEARING ASSY. |
| 17 | 0332934 | RETAINING RING |
