Home / BRP / 2000 / 5900 ST, 2000 / 01- Cylinder

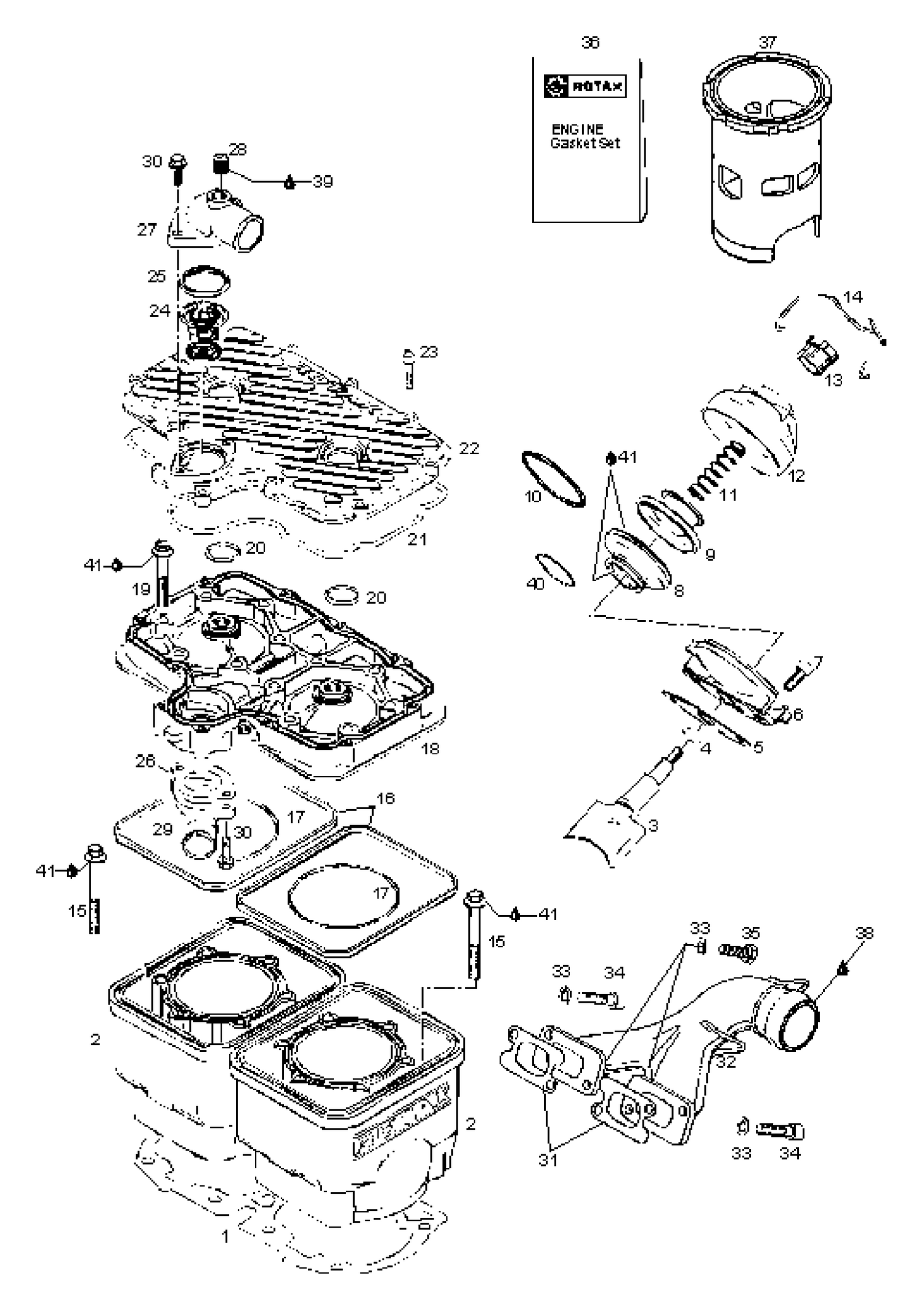

01- Cylinder

01- Cylinder

Parts (40)

RefPart NumberDescription
1 420931361 Gasket, 0,4 mm
2 420923619 Cylinder assy
3 420854300 EXHAUST VALVE - Call your local BRP dealership
4 420430110 O-Ring
5 420250239 Gasket
6 420854265 Valve rod housing
7 420241237 Socket Head Screw M6 X 16 This part replaces 420241236.
8 420260723 Bellows This part replaces 420260728.
9 420854449 Exhaust valve This part replaces 420854447.
10 420939281 Hose Spring This part replaces 420239048.
11 420239948 SPRING - Call your local BRP dealership
12 420911552 Valve cover This part replaces 420911551.
13 420241221 Adjuster screw This part replaces 420241220.
14 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
15 420640959 Collar Hex Screw M8 X 68.5 This part replaces 420841996.
16 420850040 RUBBER RING - Call your local BRP dealership
17 420831792 O-ring
18 420923166 Cylinderhead silver
19 420240326 Screw M8 x 53,5
20 420430782 O-ring
21 420931260 O-ring
22 420923623 Cylinderhead cover y
23 205062544 Allen Screw M6 x 25 This part replaces 420840861.
24 420922519 Thermostat This part replaces 420922515.
25 420931270 SEALING RING - Call your local BRP dealership
26 420850339 Gasket This part replaces 420850338.
27 420922061 BENT OUTLET SOCKET - Call your local BRP dealership
28 420240480 PLUG SCREW - Call your local BRP dealership
29 420922480 Bent outlet socket
30 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
31 420850535 Gasket
32 5242547 Exhaust manifold as
33 20014 Lock washer
34 40135 Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
35 40036 Hex-screw M8x20
36 420994227 Gasket set
37 420923151 Spare cylinder sleev
38 420297434 Loctite 76710
39 420899784 Loct 574/orange/50
40 420838255 Hose Spring This part replaces 420838253.
