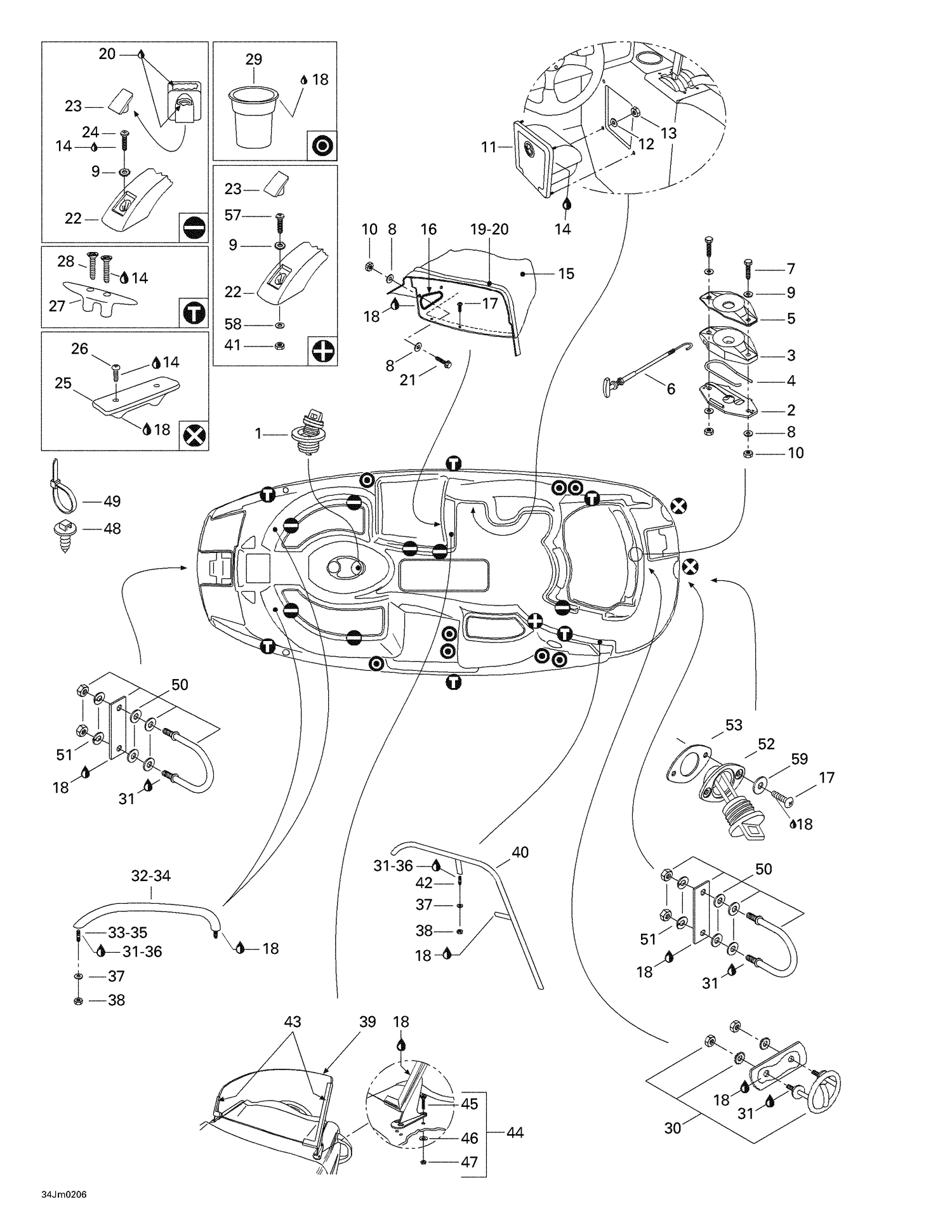

| Ref | Part Number | Description |
|---|
| 1 |
204070857 |
Drain Plug |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 4 |
204070038 |
SPRING - Call your local BRP dealership |
| 5 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 6 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 7 |
207163560 |
Hex. Screw M6 X 35 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
234061600 |
Stainless Flat Washer M6 |
| 10 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 11 |
204071084 |
GLOVE BOX - Call your local BRP dealership |
| 12 |
234052600 |
Flat Washer 5 mm, Stainless |
| 13 |
0460000 |
NUT-STOP ELASTIC 1 - Call your local BRP dealership This part replaces 204100034. |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
Not |
Available As Spare Part - Console |
| 16 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 17 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 19 |
204050048 |
TRIM, WHITE - Call your local BRP dealership |
| 21 |
207163060 |
Hex. Screw M6 X 30 |
| 23 |
204070545 |
Snap Cap (Palma Blue) |
| 24 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 25 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 26 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 27 |
204070592 |
CLEAT - Call your local BRP dealership |
| 28 |
205367060 |
Socket Head Screw M6 X 70 |
| 29 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 30 |
204070206 |
Ski Tow Hook |
| 31 |
293800005 |
Loctite 271, 10 ml |
| 33 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 35 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 36 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 37 |
234002600 |
Flat Washer 10 mm, Stainless |
| 38 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 39 |
204070858 |
Front Windshield |
| 40 |
204071034 |
Boarding Rail Ass'y |
| 41 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 42 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 43 |
204070984 |
Windshield Frame |
| 45 |
208562560 |
Phillips Screw M6 X 25 |
| 46 |
234061600 |
Stainless Flat Washer M6 |
| 47 |
232561414 |
Elastic Stop Nut M6 |
| 48 |
293730040 |
Mount Dart This part replaces 293730018. |
| 49 |
293750008 |
Tie Wrap 368 mm |
| 50 |
204050336 |
BOW EYE KIT 1/2? - Call your local BRP dealership |
| 51 |
204100048 |
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 52 |
292000187 |
Drain Plug |
| 53 |
293250030 |
GASKET - Call your local BRP dealership |
| 54 |
Not |
Available As Spare Part - Side Windshield |
| 55 |
204630050 |
Socket Wrench |
| 56 |
204630051 |
Steel Bar |
| 57 |
205367060 |
Socket Head Screw M6 X 70 |
| 58 |
234062600 |
Flat Washer M6, Stainless |
