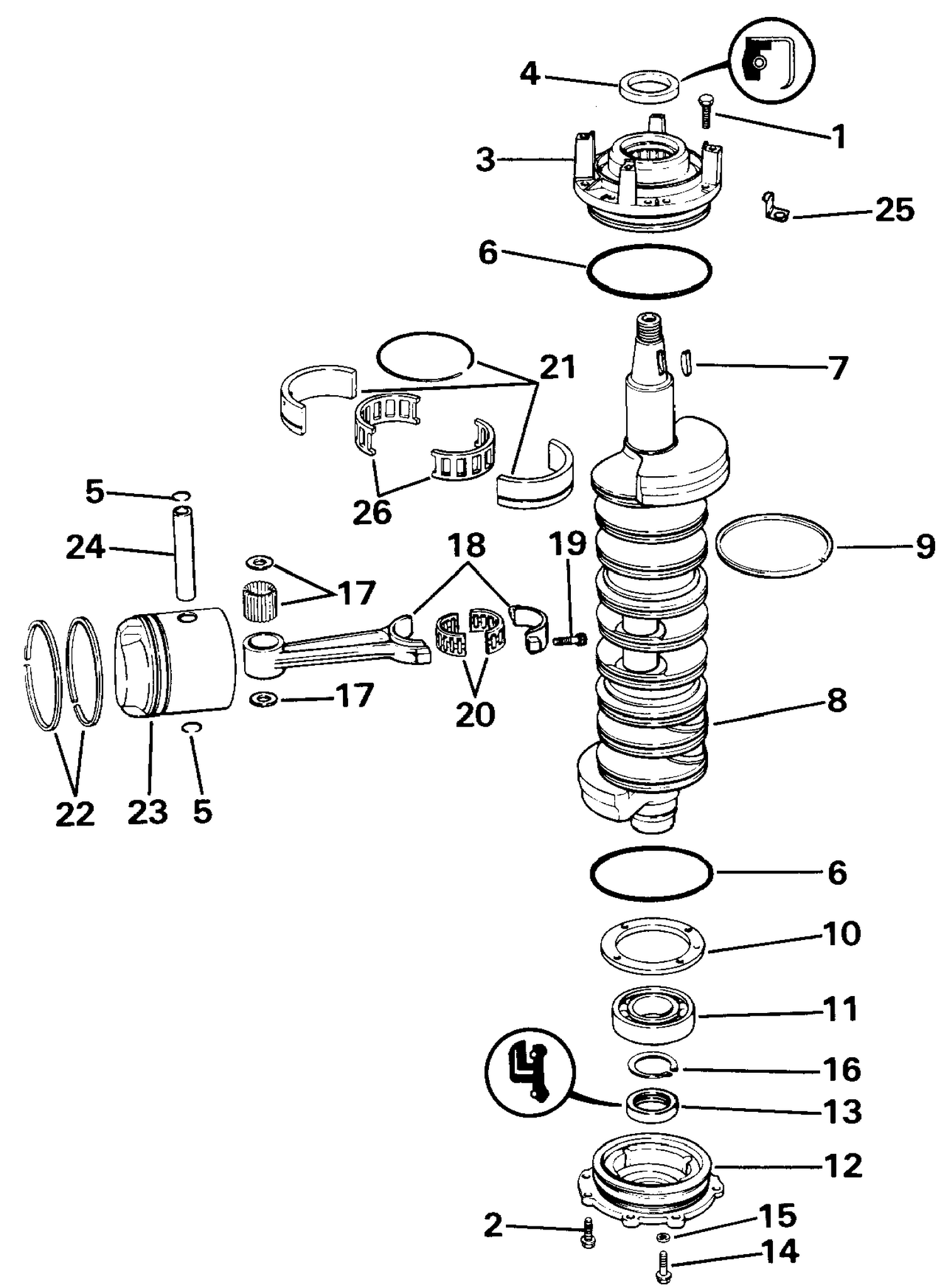

| Ref | Part Number | Description |
|---|
| 1 |
0553556 |
SCREW, Housing to cylinder |
| 2 |
0553556 |
SCREW, Housing to cylinder |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. |
| 5 |
0317831 |
Circlip |
| 6 |
0305123 |
O RING |
| 8 |
0396256 |
CRANKSHAFT ASSY. |
| 9 |
0319244 |
JOINT ANNULAIRE |
| 10 |
0317762 |
PALTE,Lower bearing |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396254 |
BEARING, Ball |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER |
| 18 |
5006383 |
CONNECTING ROD This part replaces 0392591. |
| 20 |
0387787 |
BEARING Assembly, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0394930 |
RING SET, Standard |
| 22 |
0396504 |
RING SET, .030 O.S |
| 23 |
5006661 |
Piston & Ring Kit This part replaces 0393924. |
| 23 |
5006667 |
Piston & Ring Kit This part replaces 0396585. |
| 24 |
0327861 |
Wrist Pin |
| 25 |
0326439 |
CLAMP, Leads |
