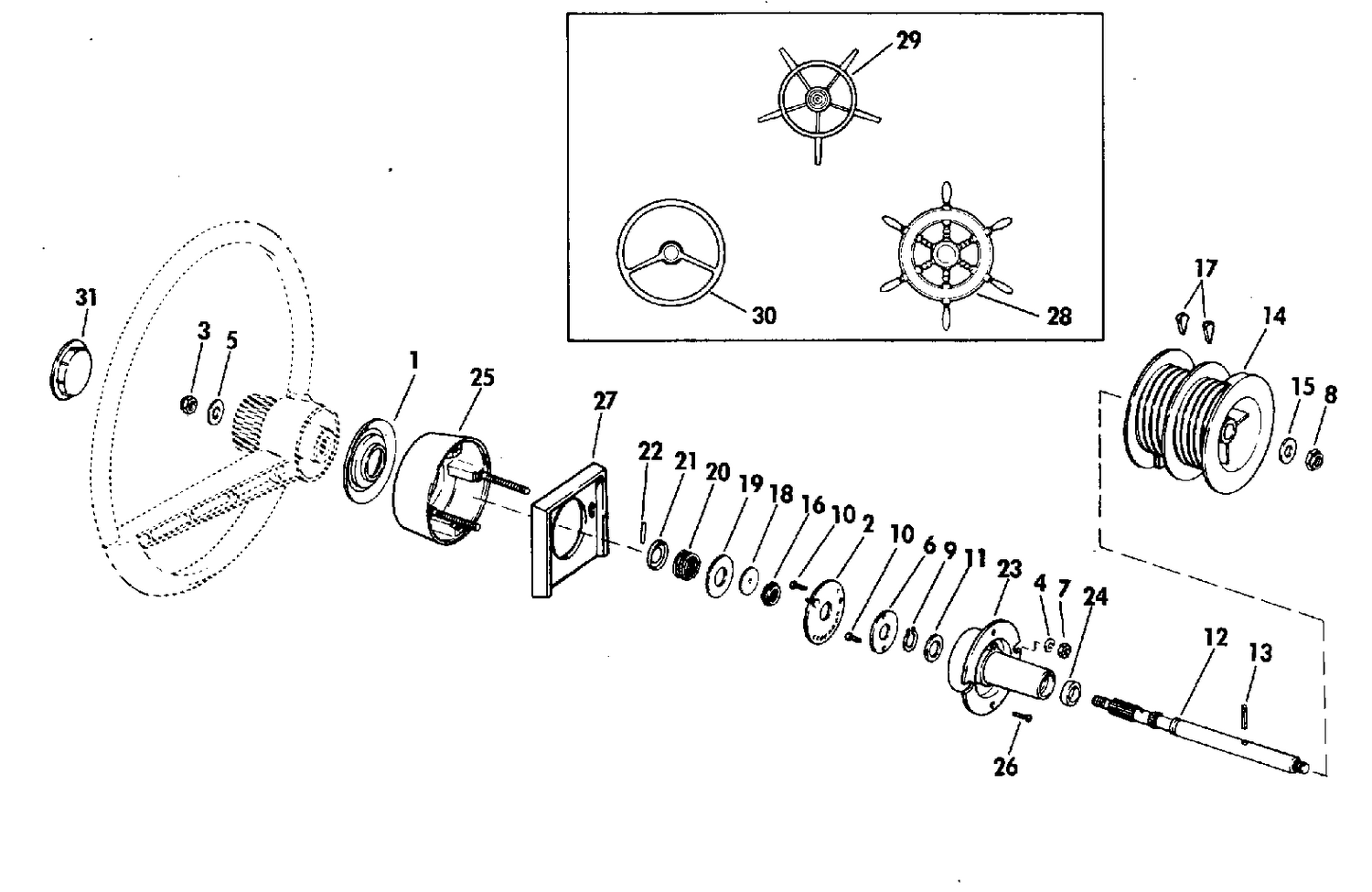

| Ref | Part Number | Description |
|---|
| 1 |
0121581 |
LENS |
| 2 |
0171871 |
SUPPORT PLATE ASSEMBLY |
| 3 |
0904880 |
LOCKNUT, Steering shaft |
| 5 |
0121639 |
SPRING WASHER, Steering wheel |
| 6 |
0121654 |
WASHER, Thrust, wheel to housing |
| 8 |
0904881 |
NUT, Pulley to shaft |
| 9 |
0121736 |
RING, Retaining |
| 10 |
0121605 |
SCREW |
| 11 |
0121653 |
WASHER, Thrust shaft |
| 12 |
0121652 |
SHAFT, Steering |
| 13 |
0900019 |
PIN, Steering shaft |
| 14 |
0901344 |
PULLEY, Steering |
| 15 |
3852078 |
WASHER, Lag screw This part replaces 0308091. |
| 16 |
0121598 |
GEAR, Drive |
| 17 |
0900016 |
WEDGE |
| 18 |
0121594 |
GEAR, Cluster |
| 19 |
0121597 |
GEAR, Output |
| 20 |
0121586 |
SPRING, Coil |
| 21 |
0121641 |
WASHER, Coupled |
| 23 |
0171895 |
HELM, Bearing & seal assy |
| 24 |
0121650 |
SEAL |
| 25 |
0171897 |
BEZEL ASSEMBLY WHITE |
| 25 |
0172407 |
BEZEL ASSEMBLY BLACK |
| 26 |
0320459 |
SCREW, Bezel to helm |
| 27 |
0172424 |
HELM PANEL ASSEMBLY |
| 28 |
0172337 |
SHIPS WHEEL KIT, 20inch wood |
| 29 |
0172067 |
CAPTAIN'S WHEEL |
| 30 |
0171968 |
STEERING WHEEL, White |
| 30 |
0172404 |
STEERING WHEEL |
| 0171873 |
0171873 |
ROPE STEERING HEAD ASSY COMPLETE WHITE |
| 0172423 |
0172423 |
ROPE STEERING HEAD ASSY BLACK |
