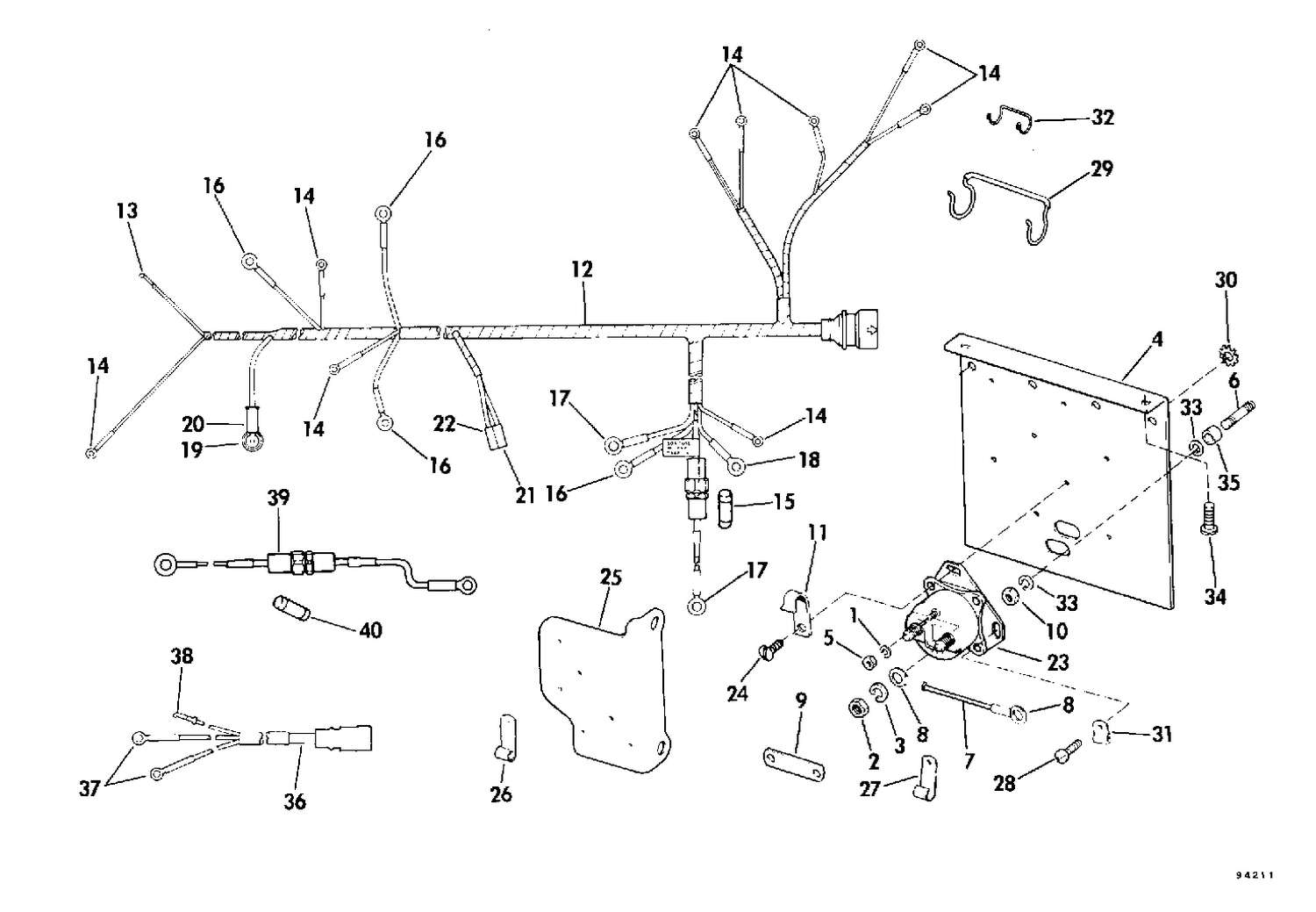

| Ref | Part Number | Description |
|---|
| 3 |
0310755 |
LOCKWASHER, Solenoid term |
| 4 |
0909451 |
BRACKET |
| 6 |
0910589 |
STUD, Bracket to engine This part replaces 0909454. |
| 7 |
0981856 |
LEAD ASSEMBLY |
| 9 |
0909450 |
BUS BAR |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 12 |
0982025 |
CABLE ASSEMBLY |
| 18 |
0203523 |
RING TERMINAL |
| 21 |
0510469 |
TAB |
| 22 |
0510471 |
CONNECTOR |
| 23 |
0985063 |
SOLENOID This part replaces 0982187. |
| 24 |
0317753 |
SCREW |
| 25 |
0910554 |
BRACKET, Solenoid to engine This part replaces 0909448. |
| 31 |
0909424 |
CLAMP |
| 35 |
0909449 |
SPACER, Bracket to engine |
| 36 |
0981307 |
CABLE ASSEMBLY, Trim |
| 39 |
0983321 |
FUSEHOLDER ASSY, Trim & tilt This part replaces 0982024. |
