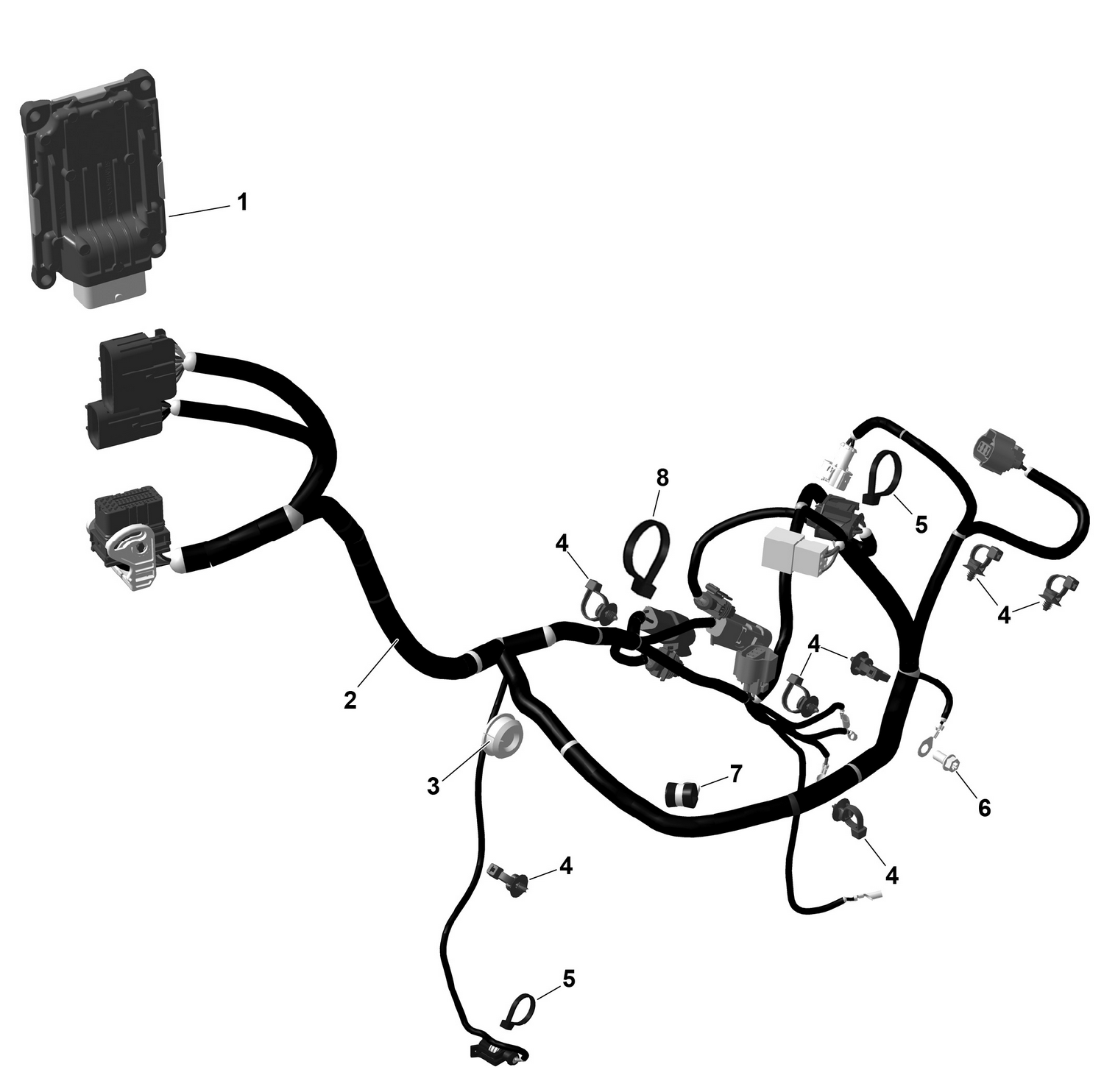

01- ROTAX - Engine Harness And Electronic Module
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666281 | ECU Module |
| 2 | 420265864 | Wiring Harness |
| 3 | 420860962 | Cable Grommet |
| 4 | 420951341 | Tie-Rap With Mount |
| 5 | 420866722 | Tie Wrap 142X 3.2mm |
| 6 | 420440149 | Hex. Flange Screw M6 X 12 |
| 7 | 420251692 | Cable Clamp |
| 8 | 420651817 | Locking Tie 175 X 4 MM |
| 9 | XXX | Not Available As Spare Parts |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 278001005 | Male Housing, 2 Circuits |
| 12 | 278002378 | Male Housing This part replaces 409207000. |
| 13 | 278001012 | Male Housing, 1 Circuit |
| 14 | 278000992 | Open Barrel |
| 15 | 515176410 | Male Connector |
| 16 | 278001005 | Male Housing, 2 Circuits |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
