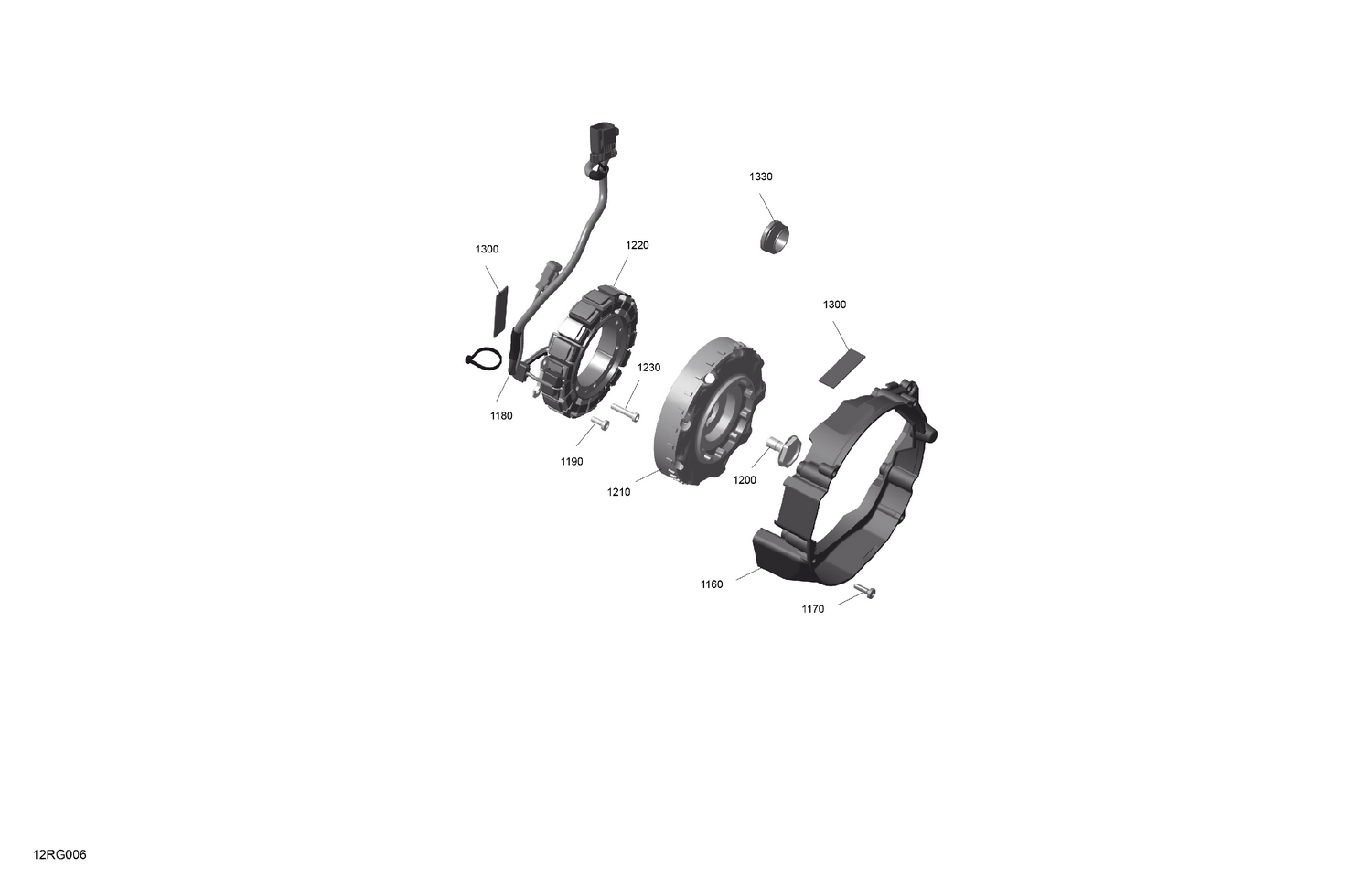

01- ROTAX - Magneto and Electric Starter
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1160 | 420911854 | Ignition Housing |
| 1170 | 420441386 | Torx Flange Screw M6 X 20 |
| 1180 | 420966844 | Pickup Ass'y |
| 1190 | 420441386 | Torx Flange Screw M6 X 20 |
| 1200 | 420840851 | Collar Hex Screw M12 X 25 |
| 1210 | 420866046 | Magneto Flywheel |
| 1220 | 420864427 | Stator Ass'y 55V/1300W |
| 1230 | 420540000 | Allen Screw M6 x 30 |
| 1300 | 420201360 | Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
