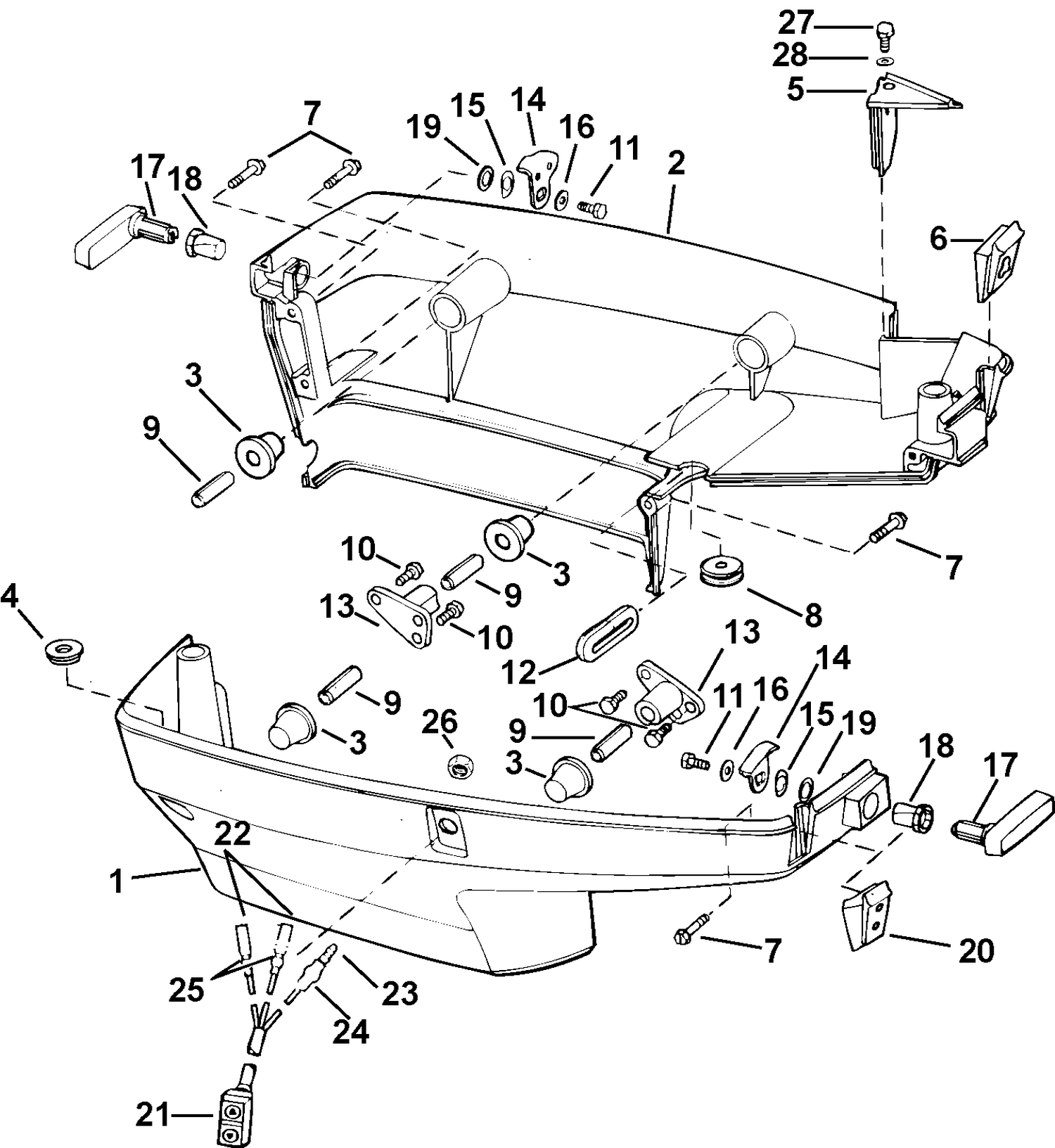

LOWER ENGINE COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5004985 | Lmc Ay This part replaces 0344374. |
| 2 | 5004984 | Lmc Ay This part replaces 0344373. |
| 3 | 0332413 | MOUNT |
| 4 | 0320521 | GROMMET |
| 5 | 0333759 | BRACKET |
| 6 | 0340213 | GROMMET, Cable |
| 7 | 0332415 | SCREW |
| 8 | 0321452 | GROMMET |
| 10 | 0551793 | SCREW |
| 12 | 0344332 | SEAL, Steering arm |
| 13 | 0333772 | BRACKET |
| 14 | 0330253 | HOOK Front |
| 18 | 0334851 | BUSHING |
| 20 | 0334164 | GROMMET |
| 21 | 0585146 | INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE |
| 27 | 0328731 | VIS, câble de verrouillage |
