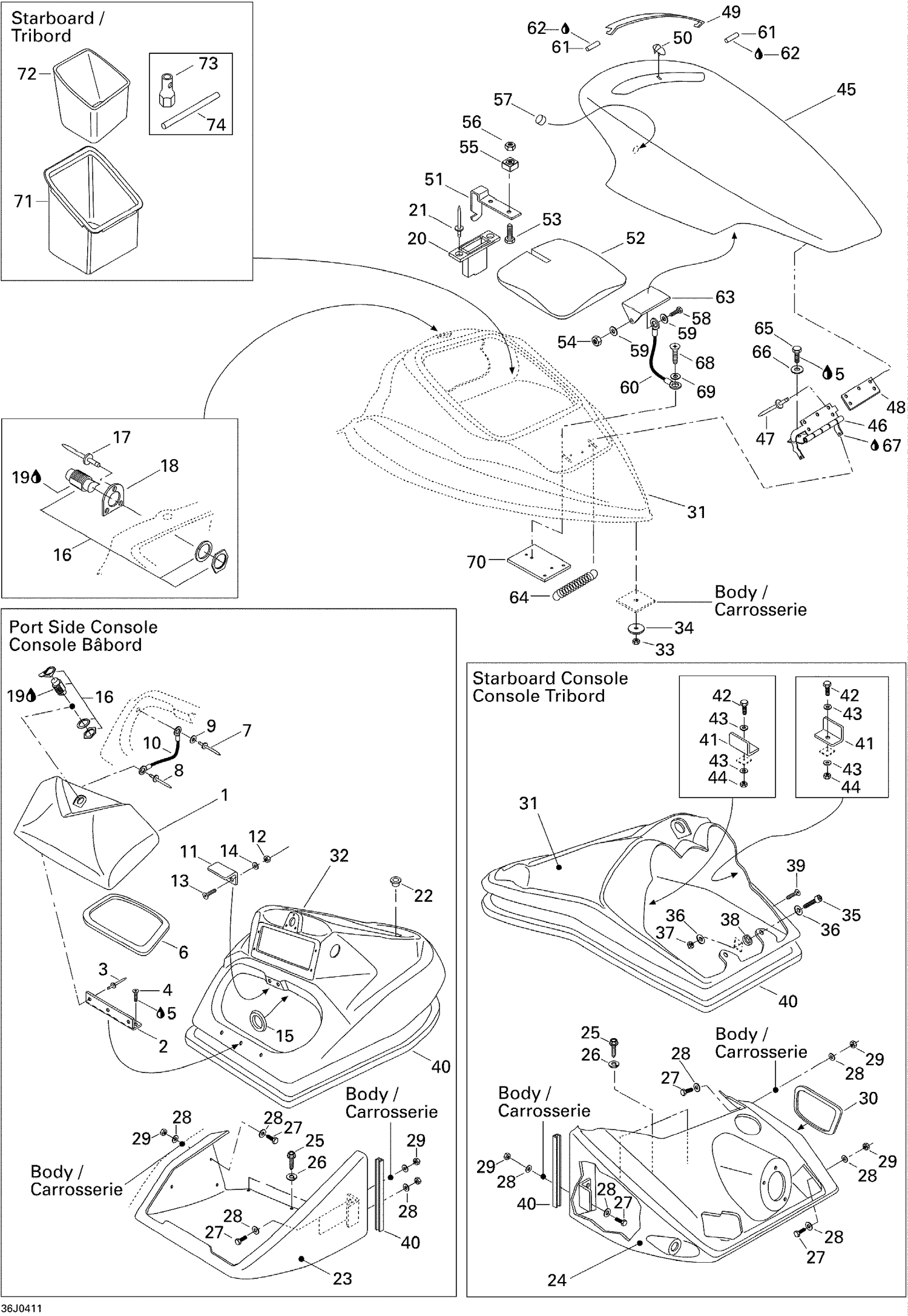

| Ref | Part Number | Description |
|---|
| 1 |
204071664 |
GLOVE BOX DOOR ASS?Y - Call your local BRP dealership |
| 2 |
204071945 |
Hinge, Black |
| 3 |
293150088 |
Pop Rivet 3/16" |
| 4 |
250000169 |
Phillips Pan Head Screw M4 X 40 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 7 |
293150008 |
Pop Rivet 3/16" |
| 8 |
293150008 |
Pop Rivet 3/16" |
| 9 |
234052600 |
Flat Washer 5 mm, Stainless |
| 10 |
204071498 |
RETAINER CABLE - Call your local BRP dealership |
| 11 |
204070060 |
KEEPER - Call your local BRP dealership |
| 12 |
232541600 |
Elastic Stop Nut M4 |
| 13 |
208641660 |
Phillips Screw M4 X 16 |
| 14 |
234040600 |
Flat Washer 4 mm |
| 15 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 16 |
204071838 |
LATCH KIT, 3 LATCHES - Call your local BRP dealership |
| 17 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership |
| 18 |
204070304 |
LATCH PLATE - Call your local BRP dealership |
| 20 |
204072064 |
LATCH GUIDE - Call your local BRP dealership This part replaces 204070394. |
| 21 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership |
| 22 |
204071783 |
DRAIN FITTING - Call your local BRP dealership |
| 25 |
204050138 |
SCREW-SELF DRILL(HEX WASHER HEAD) - Call your local BRP dealership |
| 26 |
211200025 |
Lock Washer 1/4” |
| 27 |
207163560 |
Hex. Screw M6 X 35 |
| 28 |
234062600 |
Flat Washer M6, Stainless |
| 29 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 30 |
204550045 |
Slit Conduit, Meter |
| 33 |
204100100 |
Elastic Stop Nut 5/16-18 |
| 34 |
202000355 |
Stainless Steel Washer 5/16" |
| 35 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 36 |
234062600 |
Flat Washer M6, Stainless |
| 37 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 38 |
204071928 |
ALUMINUM SPACER - Call your local BRP dealership |
| 39 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 40 |
204130085 |
White Rubber Seal |
| 41 |
204071803 |
Angle Bracket 90 mm |
| 42 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 43 |
234062600 |
Flat Washer M6, Stainless |
| 44 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 45 |
291003861 |
Windshield This part replaces 204620079. |
| 46 |
204620281 |
HINGE ASS'Y - Call your local BRP dealership |
| 47 |
293150039 |
Pop Rivet 3/16" |
| 48 |
204620087 |
RETAINING PLATE - Call your local BRP dealership |
| 49 |
204073803 |
DEFLECTOR - Call your local BRP dealership This part replaces 204620124. |
| 50 |
204620106 |
REAR STOPPER - Call your local BRP dealership |
| 51 |
204620070 |
LATCH - Call your local BRP dealership |
| 52 |
204620080 |
FOAM, WINDSCREEN - Call your local BRP dealership |
| 53 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 54 |
232551600 |
Hex. Elastic Nut M5 |
| 55 |
204073798 |
NUT HOUSING - Call your local BRP dealership This part replaces 204620115. |
| 56 |
232551600 |
Hex. Elastic Nut M5 |
| 57 |
204620295 |
RUBBER STOPPER - Call your local BRP dealership |
| 58 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 59 |
234052600 |
Flat Washer 5 mm, Stainless |
| 60 |
204620194 |
RETAINER CABLE - Call your local BRP dealership |
| 61 |
204620126 |
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership |
| 62 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 63 |
204620127 |
CABLE ATTACHEMENT - Call your local BRP dealership |
| 64 |
204620018 |
HINGE SPRING - Call your local BRP dealership |
| 65 |
207152060 |
Hex. Screw M5 X 20 |
| 66 |
234052600 |
Flat Washer 5 mm, Stainless |
| 67 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 68 |
208662560 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 69 |
234062600 |
Flat Washer M6, Stainless |
| 70 |
204620280 |
WINDSCREEN INSERT - Call your local BRP dealership |
