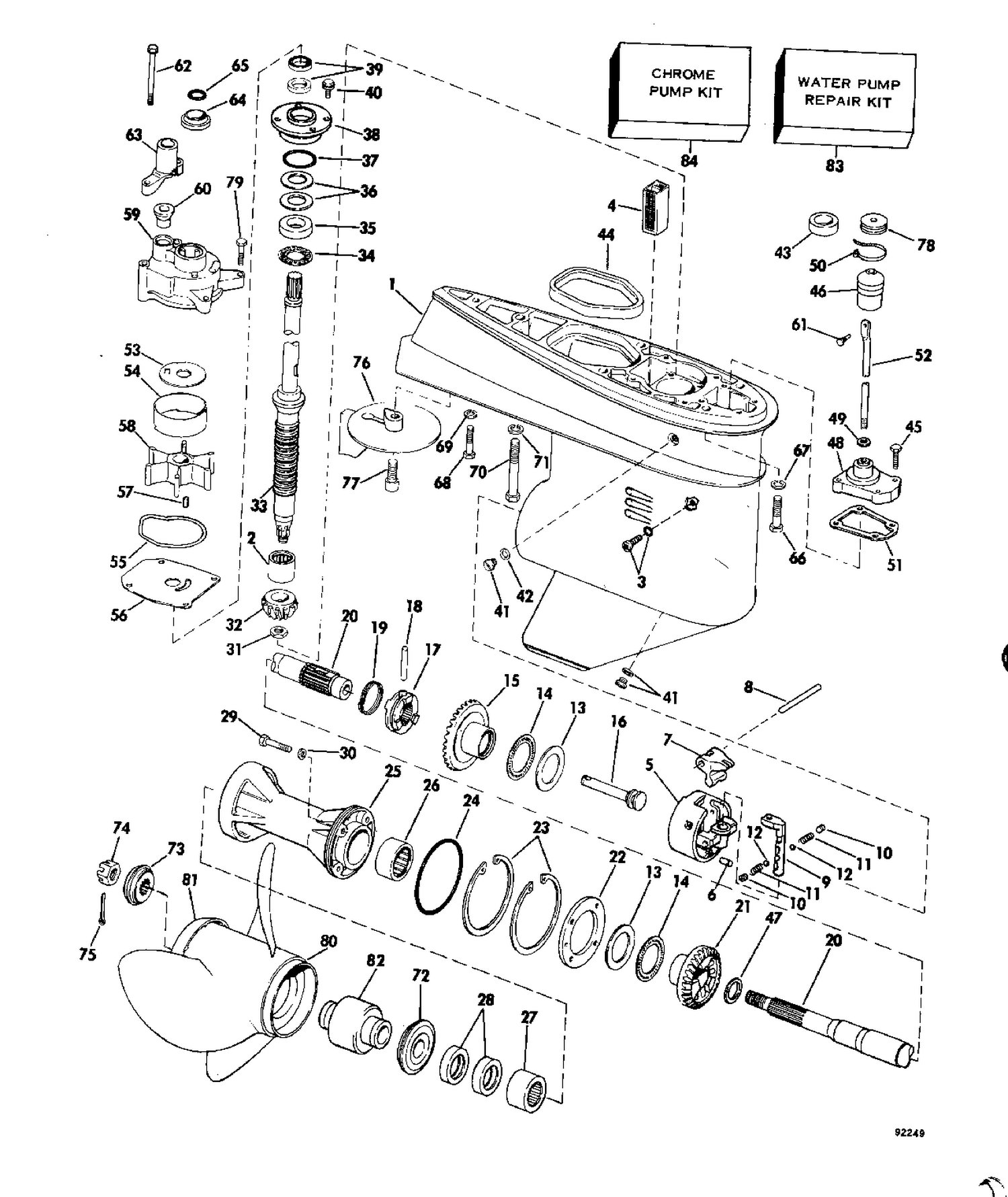

| Ref | Part Number | Description |
|---|
| 1 |
0393752 |
GEARCASE & BEARING ASSY. This part replaces 0385560. |
| 5 |
0387152 |
BEARING HOUSING ASSY |
| 7 |
0317273 |
LEVER, Shift |
| 9 |
0326374 |
DETENT, Shifter This part replaces 0318532. |
| 10 |
0317276 |
DETENT, SCREW |
| 15 |
0385765 |
GEAR ASSY, Fwd |
| 16 |
0317272 |
SHAFT, Shift dog |
| 30 |
0317178 |
O RING |
| 32 |
0315533 |
PINIOIN GEAR |
| 33 |
0390126 |
DRIVESHAFT ASSY, Std |
| 33 |
0390127 |
DRIVESHAFT ASSY., Long |
| 36 |
0317231 |
SHIM, . 002" |
| 37 |
0313754 |
O RING |
| 38 |
0435519 |
BEARING HOUSING ASSY. This part replaces 0385086. |
| 39 |
0321459 |
OIL RETAINER, Housing |
| 40 |
0329894 |
SCREW This part replaces 0302510. |
| 48 |
0385756 |
COVER ASSEMBLY |
| 50 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 52 |
0322870 |
SHIFT ROD, Std |
| 52 |
0322871 |
SHIFT ROD, Long |
| 53 |
0320776 |
PLATE, Impeller housing |
| 54 |
0320775 |
LINER, Impeller housing |
| 55 |
0315788 |
SEAL, Impeller housing |
| 56 |
0320981 |
PLATE, Impeller housing |
| 57 |
0323950 |
KEY, Drive shaft to impeller |
| 58 |
0389589 |
IMPELLER ASSY |
| 59 |
0384087 |
IMPELELR HSG., Gearcase |
| 60 |
0315837 |
GROMMET, Water tube |
| 61 |
0317385 |
PIN, Shift lockout |
| 63 |
0315838 |
BRACKET, Water tube |
| 66 |
0305282 |
BOLT, Bowl & suction piece |
| 67 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 68 |
0306503 |
SCREW, Short |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0127466 |
TRIM TAB This part replaces 0324077. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 79 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0324429. |
| 80 |
0382761 |
PROPELLER ,14 x 11 |
| 80 |
0383160 |
PROPELLER 14 X 19 |
| 80 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 80 |
0389510 |
PROPELLER, 13 * 19 SST |
| 80 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 80 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 80 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 80 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 80 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 80 |
0765181 |
PROPELLER This part replaces 0382762. |
| 80 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 80 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 83 |
0390770 |
WATER PUMP REPAIR KIT |
| 0307853 |
0307853 |
O RING |
| 0389973 |
0389973 |
GEARCASE ASSY, Long |
| 0389975 |
0389975 |
GEARCASE ASSY, Std |
