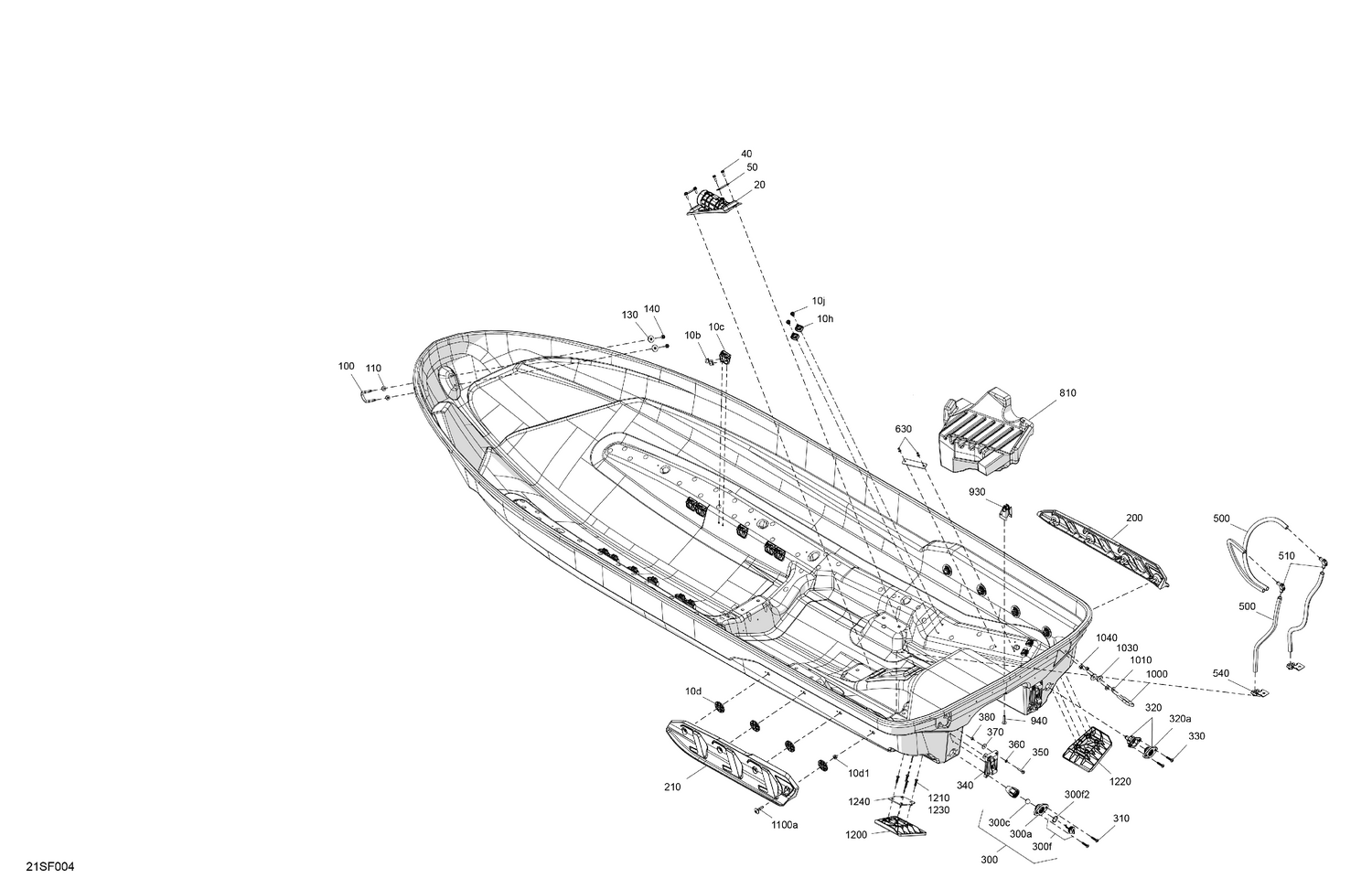

07- Body - Hull
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 293150067 | Rivet |
| 10c | 270000933 | Strap Retaining |
| 10d1 | 233181600 | Hex. Flange Nut M8 |
| 10h | 270000854 | Strap Anchor |
| 10j | 293150186 | Pop Rivet 3/16 |
| 20 | 293450409 | Through Hull Fitting |
| 40 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 50 | 291004907 | Reinforcement |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 140 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 292001953 | RH Sponson |
| 210 | 292001954 | LH Sponson |
| 300a | 292002765 | Through Hull Fitting |
| 300c | 293830080 | Floating Ball |
| 300f2 | 293300067 | O-Ring |
| 310 | 250000879 | Plastite Torx Screw M6.81X30 |
| 320a | 292002765 | Through Hull Fitting |
| 330 | 250000879 | Plastite Torx Screw M6.81X30 |
| 340 | 292002697 | Ladder Trim Fastener |
| 350 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 360 | 234061600 | Stainless Flat Washer M6 |
| 370 | 250200022 | Flat Washer M6.6 X 22 |
| 380 | 232561200 | Brass Elastic Stop Nut M6 |
| 500 | 219704393 | Polyurethane Hose 1000Mm Long |
| 510 | 293710152 | Fitting Elbow 90° |
| 540 | 292002935 | Plate |
| 630 | 293150037 | Avdel Rivet 3/16" |
| 810 | 292002028 | Cooler Float |
| 930 | 270000988 | Strap Anchor |
| 940 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1000 | 292000933 | U-Clamp |
| 1010 | 293050001 | Flat Washer M8.5 x 18 |
| 1030 | 250200175 | Flat Washer 8 mm, Stainless |
| 1040 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1200 | 292002102 | LH Trim Tab |
| 1210 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1220 | 292002103 | RH Trim Tab |
| 1230 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1240 | 277002171 | Gasket |
